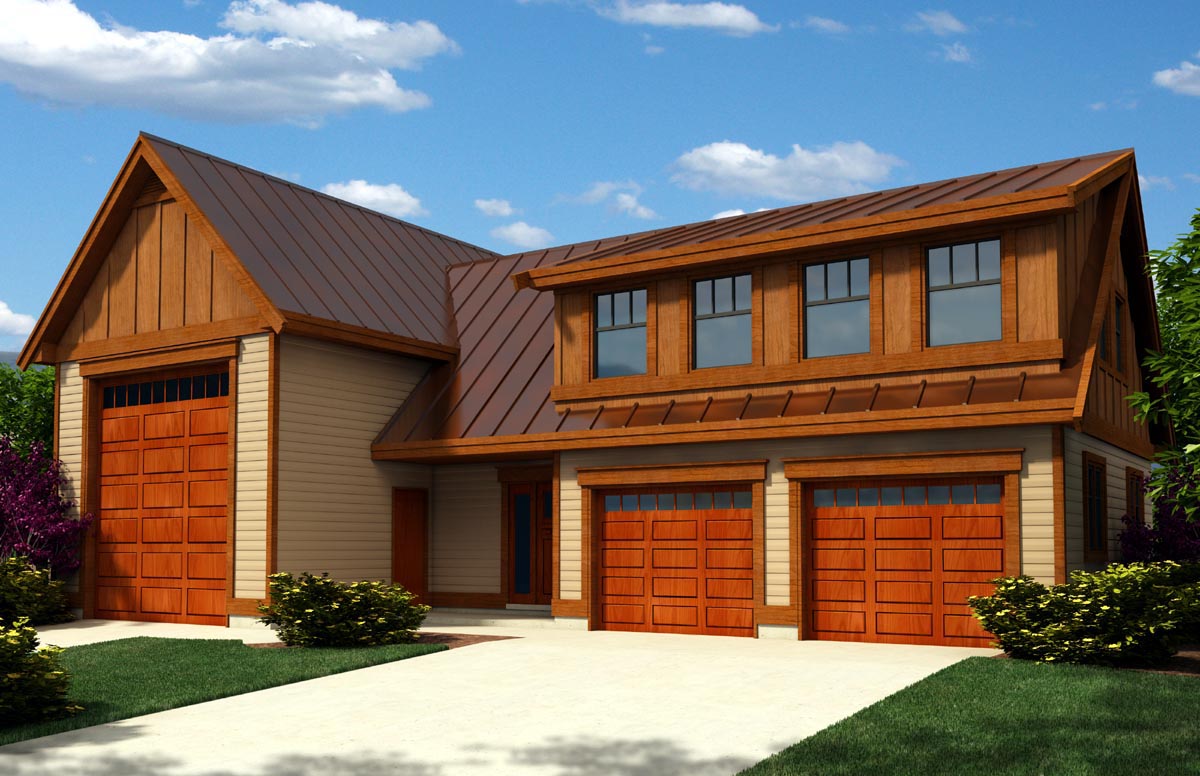

3 Car Garage Apartment Plan 76023
Garage Apartment - Popular RV Garage Plan With Future Apartment | Plan 76023
Plan Pricing
Additional Notes
RV Garage 16'2nd floor kneewall 4'2
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Bonus Area: | 759 sq ft |
| Garage Area: | 1432 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 54' |
| House Depth: | 40' |
| Number of Stories: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 26'2 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 32 psf |
| Roof Framing: | Truss |
| Porch: | 46 sq ft |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
Plan Description

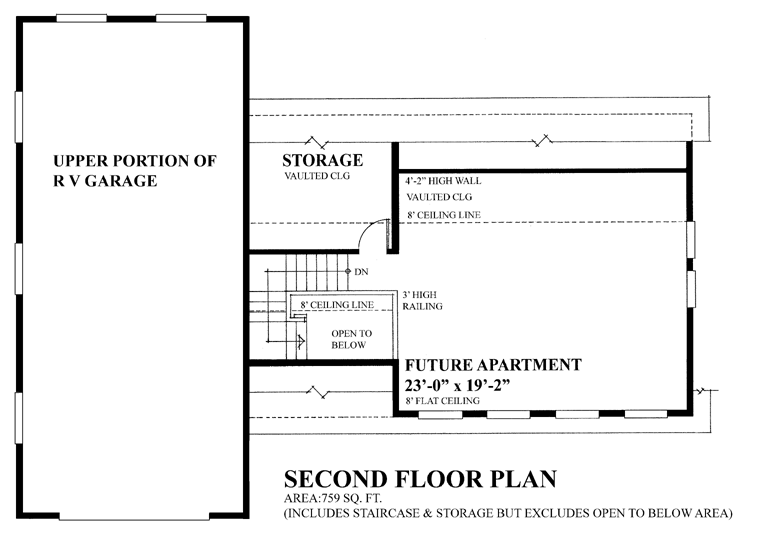

Popular RV Garage Plan With Future Apartment
Popular RV Garage Plan 76023 has motorhome parking plus 2-bay garage parking for your standard sized vehicles. In addition, the plan offers an upper-level bonus room that can be converted into apartment living space. Build this motorhome plan to store your recreational vehicle, and rent out the apartment space. This motorhome plan is an excellent investment.
Popular RV Garage Plan With Workshop
740 square feet is allotted for the RV parking area, and a 16' ceiling offers plenty of vertical space. In the rear, there is a work bench. The RV door measures 12' wide by 14' high. Overall, the motorhome parking is 17'6 wide by 39' deep. Be sure to check that the measurements will work for your motorhome. If not, remember that we also offer modifications for all of our garage plans.
Parking for 2 standard-sized vehicles is available on the right side of the garage. Car parking is 23' wide by 23' deep. The two garage spaces are connected by the workshop. It includes a work bench and half bath. The entry includes a coat closet and access to the staircase. In total, your garage ground floor keeps your vehicles sheltered from the elements and gives you a place to work and store your tools.
RV Garage Plan With Income Potential
Popular RV Garage Plan 76023 is an excellent choice for the adventurer. Firstly, the generous sheltered parking area will keep your motorhome in tip-top shape when you're not on the road. Need to do a little maintenance? No problem because all of your tools are right there. Need to store sporting equipment and camping gear? Well, there is plenty of space for that too.
Secondly, everyone knows that travelling takes money. To help out with cash, you can finish the bonus space upstairs. Turn it into an apartment, and rent it out. Use the money to fund your travel expenses. As a bonus, the renter could barter for time. For example, the renter could care for your property in exchange for a reduced monthly payment.
In conclusion, RV Garage Plan 76023 is a popular choice because it supports your lifestyle in so many ways.
What's Included?
Working drawings usually comprises of the following:
General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not including with plans: Interior cabinet elevations. Window schedules.
Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Double car garage: 4 – 4’-0” x 4’-0” ( width x height) Apartment: 2 – 3’-0” x 4’-0” right side, 4 – 3’-6” x 4’-6”
A: Have a look at pre-drawn plan number 76034.
It has a RV garage 55’ long with a 18’ plate height.
The double car garage is 49’ long with a 9’ plate height.
The area above the garage is 1280 sq. ft. and has a vaulted ceiling.
As an alternate I would be happy to modify any of my drawings or design you a custom garage to meet your specific requirements.
Thank you for your interest in one of my designs,
A: Please have a look at garage design 76024, which is 24’ x 36’ and similar to 76023 but without the RV garage portion. Otherwise I would be happy to modify any of my plans or design you a garage to meet your specific requirements.
Please email with questions or if you require any additional information.
Thanks for your interest in one of my designs, Regan.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Info Brochure
Elevation

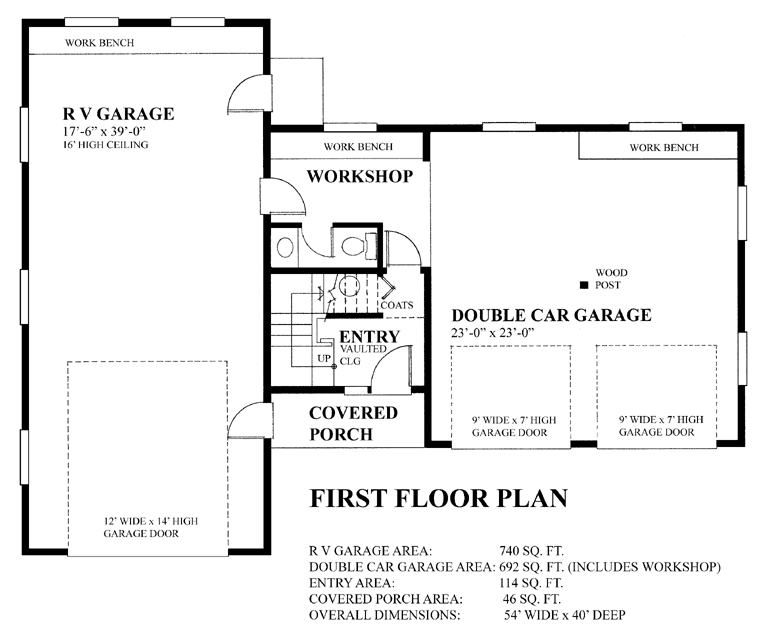

Level One
