Plan Number 24705 | Order Code: 00WEB
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

Click Here to Mirror Reverse Plan


Plan Number: 24705
  • 1562 Total Living Area
  • 1062 Main Level
  • 500 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 46'0 Wide x 27' Deep

    Available Foundation Types:
  • Basement
  • Crawlspace
  • Slab
  • Order Code: 00WEB
    PDF Study Set: $595.00
  • 1 Set: $595.00
  • 4 Sets: $665.00
  • 8 Sets: $765.00
  • Reproducible Set: $845.00
  • PDF File: $845.00
  • CAD File: $1,295.00
  • Arch Stamp: $315.00
  • ResChek: $200.00
  • Materials List: $75.00
  • Mirror Reverse: $50.00 per order
  • Right Reading (True) Reverse: $135.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $50.00

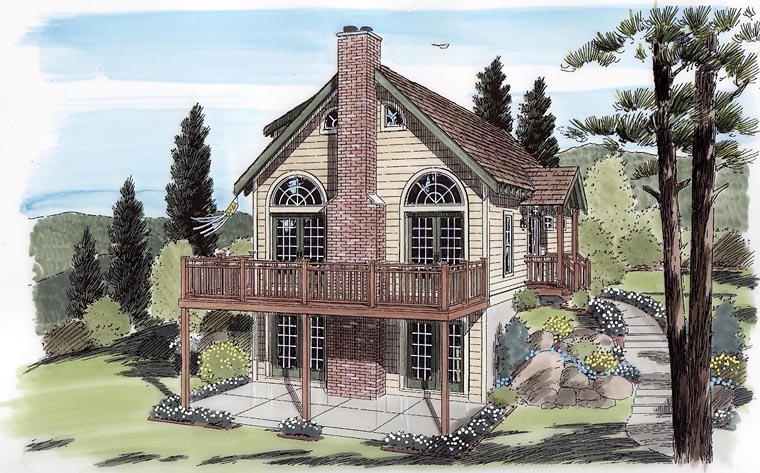

  • Plan Number 24705 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

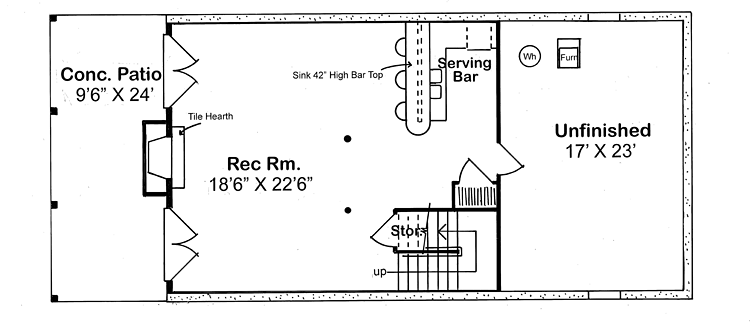

    Plan Number 24705 | Order Code 00WEB | Lower Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

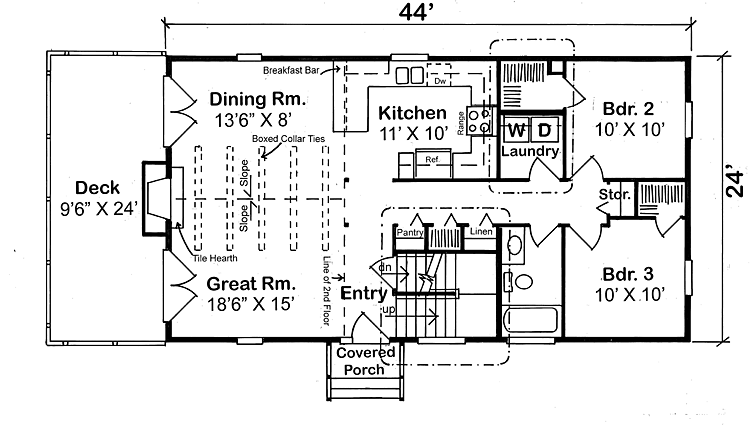

    Plan Number 24705 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

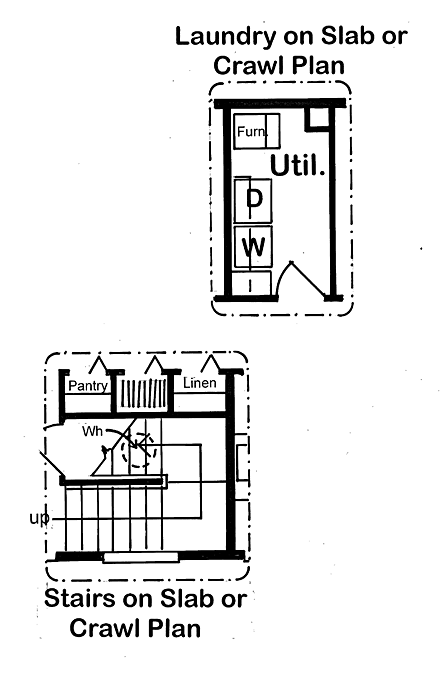

    Plan Number 24705 | Order Code 00WEB | Alternate Level One
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

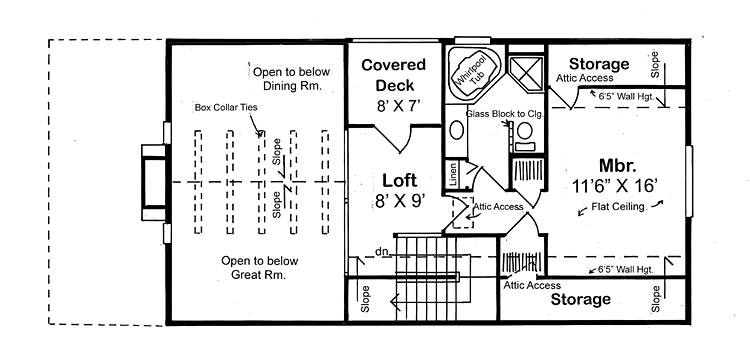

    Plan Number 24705 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 24705 Specifications:
  • Total Living Area: 1562
  • Main Living Area: 1062
  • Upper Living Area: 500
  • Bonus Area: 678
  • Unfinished Basement Area: 384
  • Garage Type: None
  • House Width: 46'0
  • House Depth: 27'
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Max Ridge Height: 24'
  • Primary Roof Pitch: 10:12
  • Roof Load: 45 psf
  • Roof Framing: Stick
  • Porch: 23 sq ft
  • Deck: 298 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 8'
  • Upper Ceiling Height: 8'

    Available Foundation Types:
  • Basement
  • Crawlspace
  • Slab
  • Plan Number 24705 Plan Pricing:
    PDF Study Set: $595.00
    Get your plans fast! A complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.

  • 1 Set: $595.00
  • 4 Sets: $665.00
  • 8 Sets: $765.00
  • Reproducible Set: $845.00
  • PDF File: $845.00
  • CAD File: $1,295.00
  • Arch Stamp: $315.00
  • ResChek: $200.00
  • Materials List: $75.00
  • Mirror Reverse: $50.00 per order
  • Right Reading (True) Reverse: $135.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $50.00
  • Plan Number 24705 | Order Code 00WEB | Specifications and Pricing
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Receive a FREE modification estimate in one of 3 ways:

    1) Call 1-913-674-5378 between the hours of 8:00 AM - 5:00 PM CST to discuss the modification process. You will be able to talk to a live person that can give you a FREE modification estimate right over the phone!

    Canadian customers, please call 1-800-361-7526 to discuss modifications.

    2) Email your changes to modifications@familyhomeplans.com. (Itemized list of changes with details)

    3) Download our Modification Request Form (Word Doc format) or alternate (PDF format), complete and fax to 1-866-873-3963. If you cannot download either file, simply fax your modifications along with a cover sheet containing your contact information and please make attention: Family Home Plans Modification Department.

    Please take the time to download and read our FREQUENTLY ASKED QUESTIONS (FAQ) for PLAN MODIFICATION SERVICES (PDF format). It will answer many of the questions you may have about the plan modification process.
