Plan Number 30505 | Order Code: 00WEB
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

Click Here to Mirror Reverse Plan


Plan Number: 30505
  • 1 Half Bath(s)
  • 2 Car Garage
  • 24'4 Wide x 26'0 Deep

    Available Foundation Types:
  • Slab
  • Order Code: 00WEB
  • Concept Plan Pkg: $255.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).

    Complete construction documents can also be ordered for this plan:

  • 1 Set: $255.00
  • 5 Sets: $290.00
  • 8 Sets: $330.00
  • Reproducible Set: $470.00
  • PDF File: $470.00
  • CAD File: $670.00
  • Materials List: $50.00
  • Mirror Reverse: $25.00 per order
  • Right Reading (True) Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $25.00



  • Plan Number 30505 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

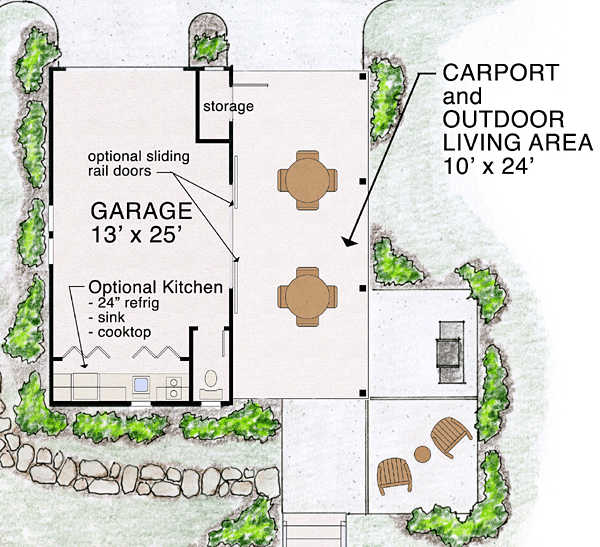

    Plan Number 30505 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 30505 Specifications:
  • Garage Area: 632
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 24'4
  • House Depth: 26'0
  • Number of Stories: 1
  • Half Baths: 1
  • Max Ridge Height: 15'2"
  • Primary Roof Pitch: 10:12
  • Roof Framing: Stick
  • Porch: 240 sq ft
  • Main Ceiling Height: 8'0

    Available Foundation Types:
  • Slab
  • Plan Number 30505 Plan Pricing:
  • Concept Plan Pkg: $255.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
    1. Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
    2. All four exterior elevations
    3. Floor plan(s) with overall dimensions
    4. Roof layout
    5. Written authorization for the plans to be completed by your builder or designer/architect
    6. Four-Time Build License
    7. Not to be considered a complete set of construction documents
    8. Foundation Plan is not included
    Complete construction documents can also be ordered for this plan:

  • 1 Set: $255.00
  • 5 Sets: $290.00
  • 8 Sets: $330.00
  • Reproducible Set: $470.00
  • PDF File: $470.00
  • CAD File: $670.00
  • Materials List: $50.00
  • Mirror Reverse: $25.00 per order
  • Right Reading (True) Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $25.00

    House Plan Number 30504 (pictured in background) not included in price of 30505. Please see plan number 30504 to order both the house and garage plan.
