Plan Number 56507 | Order Code: 00WEB
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

Click Here to Mirror Reverse Plan


Plan Number: 56507
  • 1538 Total Living Area
  • 1035 Main Level
  • 503 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 44' Wide x 51' Deep

    Available Foundation Types:
  • Not Applicable
  • Order Code: 00WEB
  • Concept Plan Pkg: $595.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).

  • Right Reading: $135.00

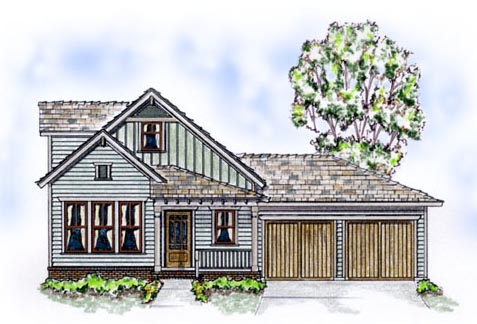

  • Plan Number 56507 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

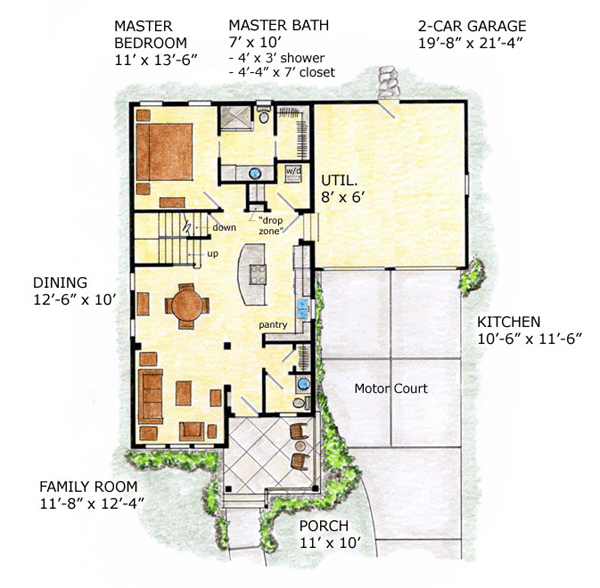

    Plan Number 56507 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

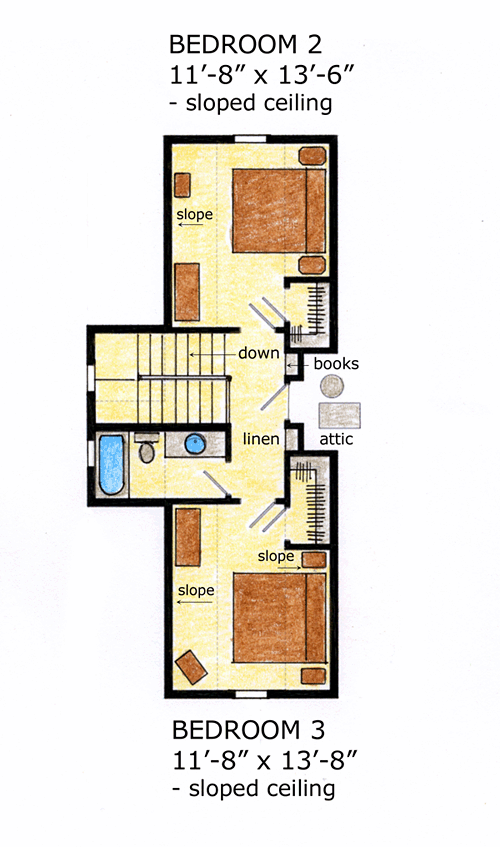

    Plan Number 56507 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 56507 Specifications:
  • Total Living Area: 1538
  • Main Living Area: 1035
  • Upper Living Area: 503
  • Garage Area: 420
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 44'
  • House Depth: 51'
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Primary Roof Pitch: 10:12
  • Roof Framing: Stick
  • Porch: 110 sq ft
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'
  • Upper Ceiling Height: 8'

    Available Foundation Types:
  • Not Applicable
  • Plan Number 56507 Plan Pricing:
  • Concept Plan Pkg: $595.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
    1. Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
    2. All four exterior elevations
    3. Floor plan(s) with overall dimensions
    4. Roof layout
    5. Written authorization for the plans to be completed by your builder or designer/architect
    6. Four-Time Build License
    7. Not to be considered a complete set of construction documents
    8. Foundation Plan is not included
  • Right Reading: $135.00

  • Plan Number 56507 | Order Code 00WEB | Specifications and Pricing
