| Plan Number: 56570 |
1581 Total Living Area 1078 Main Level 503 Upper Level 3 Bedrooms 2 Full Bath(s) 1 Half Bath(s) 34'0 Wide x 51'0 Deep
Available Foundation Types:
Plumbing Plan
|
|
| Order Code: 00WEB |
Concept Plan Pkg: $595.00
includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
Right Reading: $135.00
|
|
|

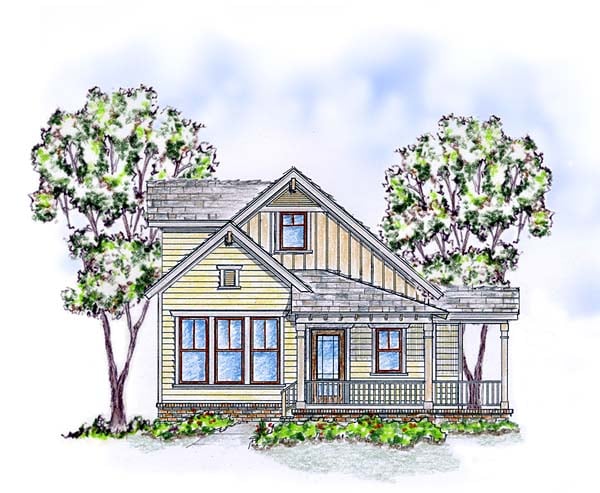

Plan Number 56570 | Order Code 00WEB | Front Elevation
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526
Click Here to Mirror Reverse
|

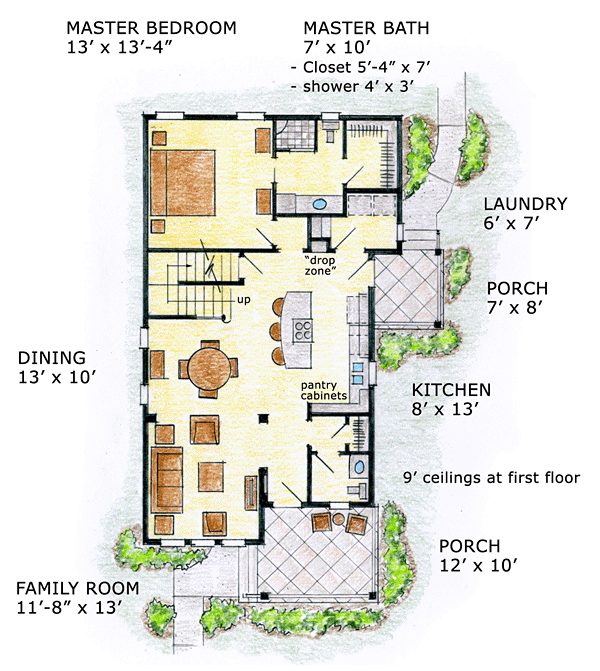

Plan Number 56570 | Order Code 00WEB | First Floor Plan
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526
Click Here to Mirror Reverse
|

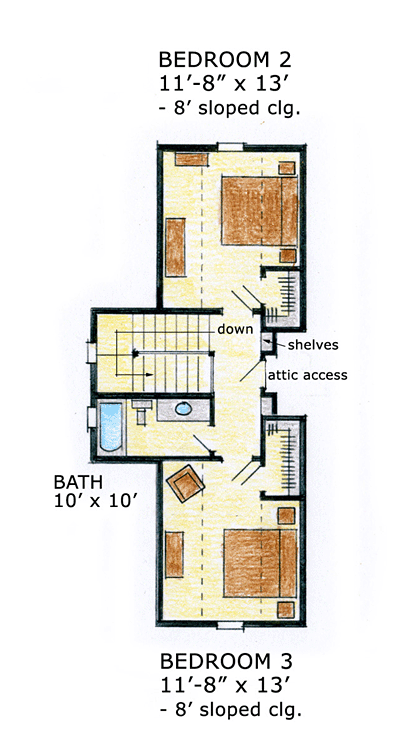

Plan Number 56570 | Order Code 00WEB | Second Floor Plan
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526
Click Here to Mirror Reverse
|
|
| Plan Number 56570 Specifications: |
Total Living Area: 1581 Main Living Area: 1078
Upper Living Area: 503
Garage Type: None
House Width: 34'0
House Depth: 51'0
Number of Stories: 2
Bedrooms: 3
Full Baths: 2
Half Baths: 1
Primary Roof Pitch: 10:12
Roof Framing: Stick
Porch: 176 sq ft
Main Ceiling Height: 9'0
Upper Ceiling Height: 8'0
Available Foundation Types:
Plumbing Plan
|
|
| Plan Number 56570 Plan Pricing: |
Concept Plan Pkg: $595.00
includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
- Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
- All four exterior elevations
- Floor plan(s) with overall dimensions
- Roof layout
- Written authorization for the plans to be completed by your builder or designer/architect
- Four-Time Build License
- Not to be considered a complete set of construction documents
- Foundation Plan is not included
Right Reading: $135.00
|
|
