House Plan 63021 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 3424 Total Living Area
  • 3424 Main Level
  • 5 Bedrooms
  • 4 Full Bath(s)
  • 3 Car Garage
  • 82'4 Wide x 83'8 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF Study Set: $800.00
  • PDF File: $1,450.00
  • 5 Sets: $1,650.00
  • 5 Sets plus PDF File: $1,650.00
  • CAD File: $2,900.00
  • Additional Sets: $50.00
* prices shown w/o any discounts applied

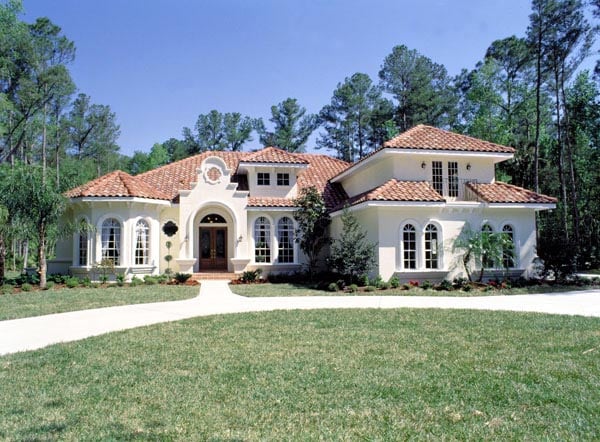

House Plan 63021 | Order Code: 00WEB | Elevation

Reverse Plan

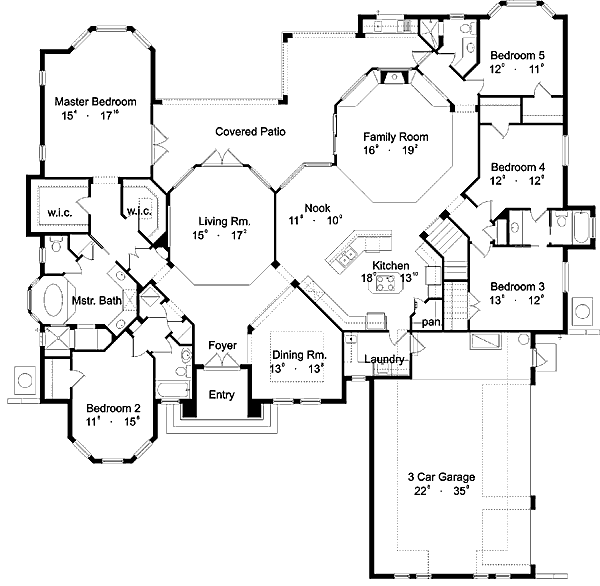

House Plan 63021 | Order Code: 00WEB | First Floor Plan

Reverse Plan

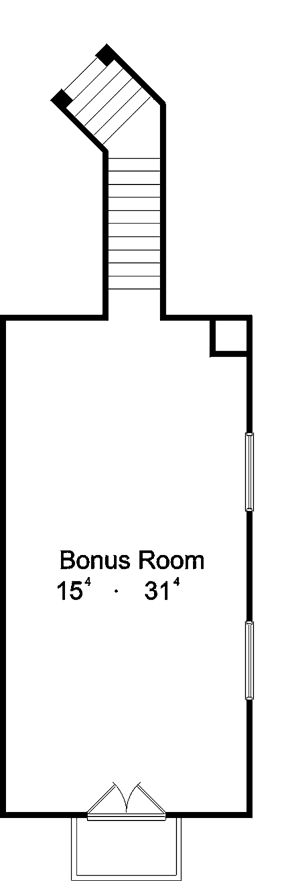

House Plan 63021 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

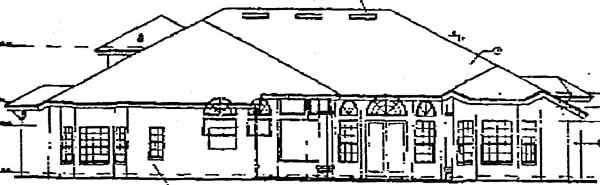

House Plan 63021 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 3424
  • Main Living Area: 3424
  • Bonus Area: 507
  • Garage Area: 814
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 82'4
  • House Depth: 83'8
  • Number of Stories: 1
  • Bedrooms: 5
  • Full Baths: 4
  • Max Ridge Height: 23'5 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Framing: Truss
  • Porch: 537 sq ft
  • Formal Dining Room: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 10'-12'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF Study Set: $800.00
    Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
  • PDF File: $1,450.00
  • 5 Sets: $1,650.00
  • 5 Sets plus PDF File: $1,650.00
  • CAD File: $2,900.00
  • Additional Sets: $50.00

Exterior Walls
8" Block/Wood

Ceiling Hieghts:

Living Room: 13'
Dining: 20' Tray ceilings

12' Ceiling Heights in the following rooms:
Bedroom 2
Bedroom 2
Master Bath
Foyer
Nook
Family Room
Kitchen

10' Ceiling Heights in the following rooms:
Bedrooms 3,4, & 5
Master Bedroom

* prices shown w/o any discounts applied

Architectural Styles

Florida, Mediterranean
