Plan Number: 67590
  • 2459 Total Living Area
  • 1762 Main Level
  • 697 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 60' Wide x 65' Deep

    Available Foundation Types:
  • Slab
  • Order Code: 00WEB
  • 5 Sets: $1,200.00
  • PDF File: $1,200.00
  • CAD File: $1,200.00

  • Mirror Reverse: $100.00 per order
  • Right Reading (True) Reverse: $400.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

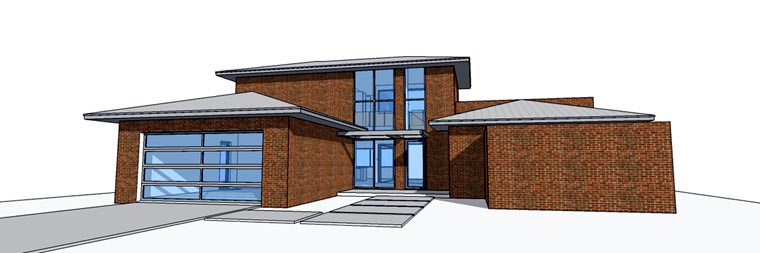

  • Plan Number 67590 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

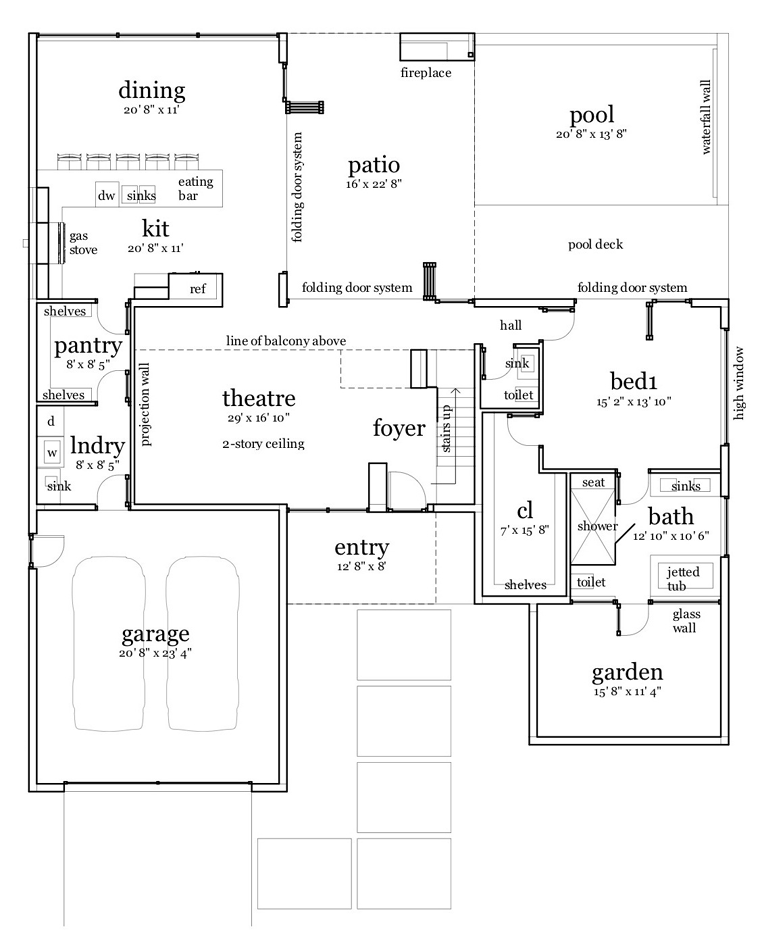

    Plan Number 67590 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

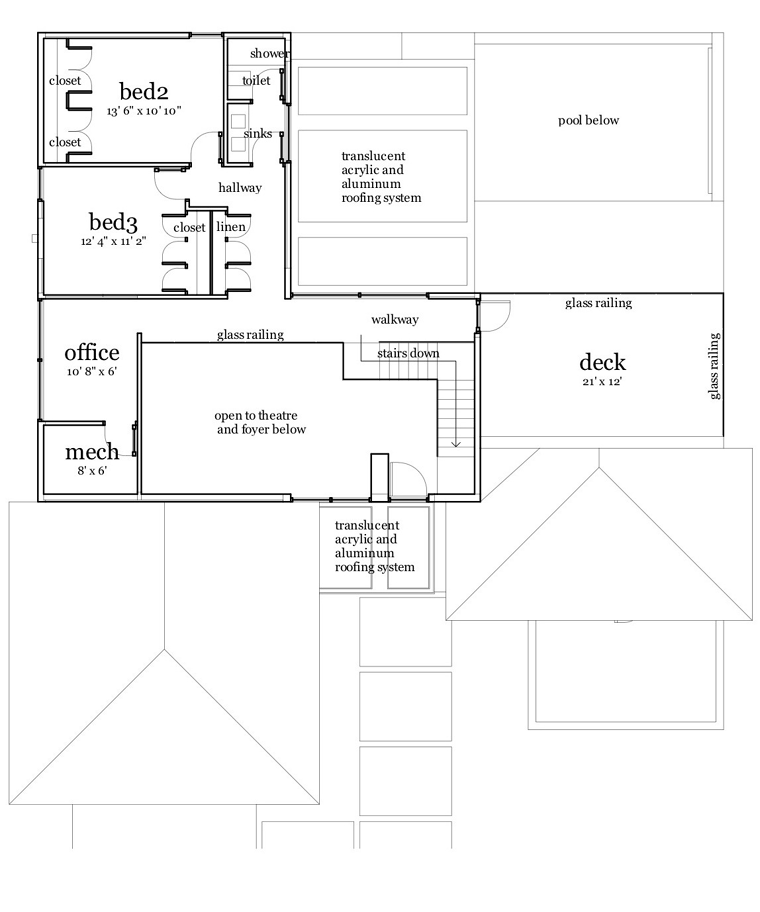

    Plan Number 67590 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

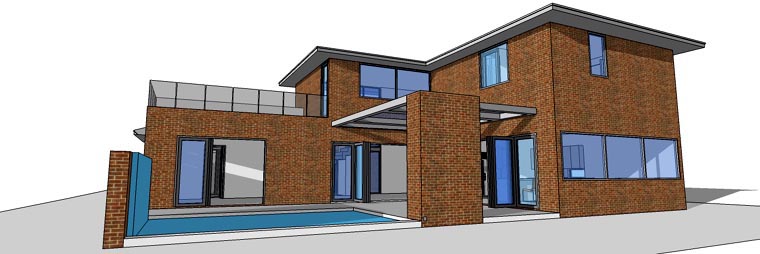

    Plan Number 67590 | Order Code 00WEB | Rear Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 67590 Specifications:
  • Total Living Area: 2459
  • Main Living Area: 1762
  • Upper Living Area: 697
  • Garage Area: 528
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 60'
  • House Depth: 65'
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 26'
  • Primary Roof Pitch: 0
  • Roof Framing: Truss
  • Porch: 368 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 10'
  • Upper Ceiling Height: 9'

    Available Foundation Types:
  • Slab
  • Plan Number 67590 Plan Pricing:
  • 5 Sets: $1,200.00
  • PDF File: $1,200.00
  • CAD File: $1,200.00

  • Mirror Reverse: $100.00 per order
  • Right Reading (True) Reverse: $400.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

    3 bedrooms, 2 full baths, 1 half bath
    10' flat ceilings downstairs
    20' flat ceilings in theatre
    9' flat ceilings upstairs

    floor1 1762
    floor2 697
    conditioned space 2459
    porches 368
    garage 528
    under roof 3355

    Mass
    60'w x 65'd x 26'h

    concrete slab on grade, 8" wood frame walls with spray foam insulation, 4" wood frame interior walls, wood roof trusses with r36 spray foam insulation, low pitch metal roof.

    Additional build licence 50% of PDF price
    Unlimited build licence 200% of PDF price
