Plan Number: 72057
  • 2674 Total Living Area
  • 1897 Main Level
  • 777 Upper Level
  • 4 Bedrooms
  • 4 Full Bath(s)
  • 2 Car Garage
  • 55' Wide x 49' Deep

    Available Foundation Types:
  • Walkout Basement
  • Order Code: 00WEB
    PDF Study Set: $800.00
  • 5 Sets: $970.00
  • Reproducible Set: $1,185.00
  • PDF File: $1,185.00
  • CAD File: $1,785.00

  • Right Reading (True) Reverse: $120.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $80.00



  • Plan Number 72057 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

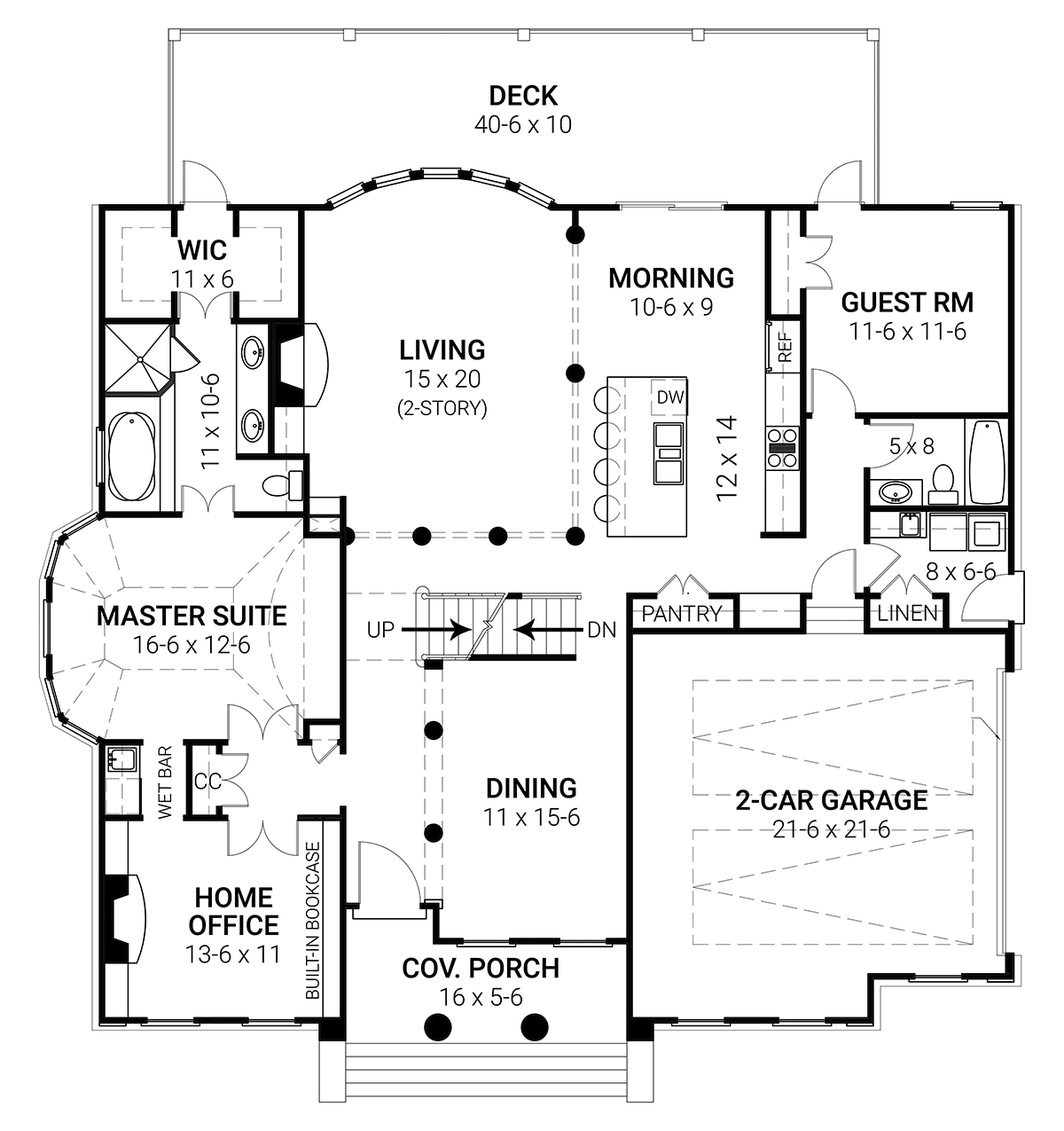

    Plan Number 72057 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

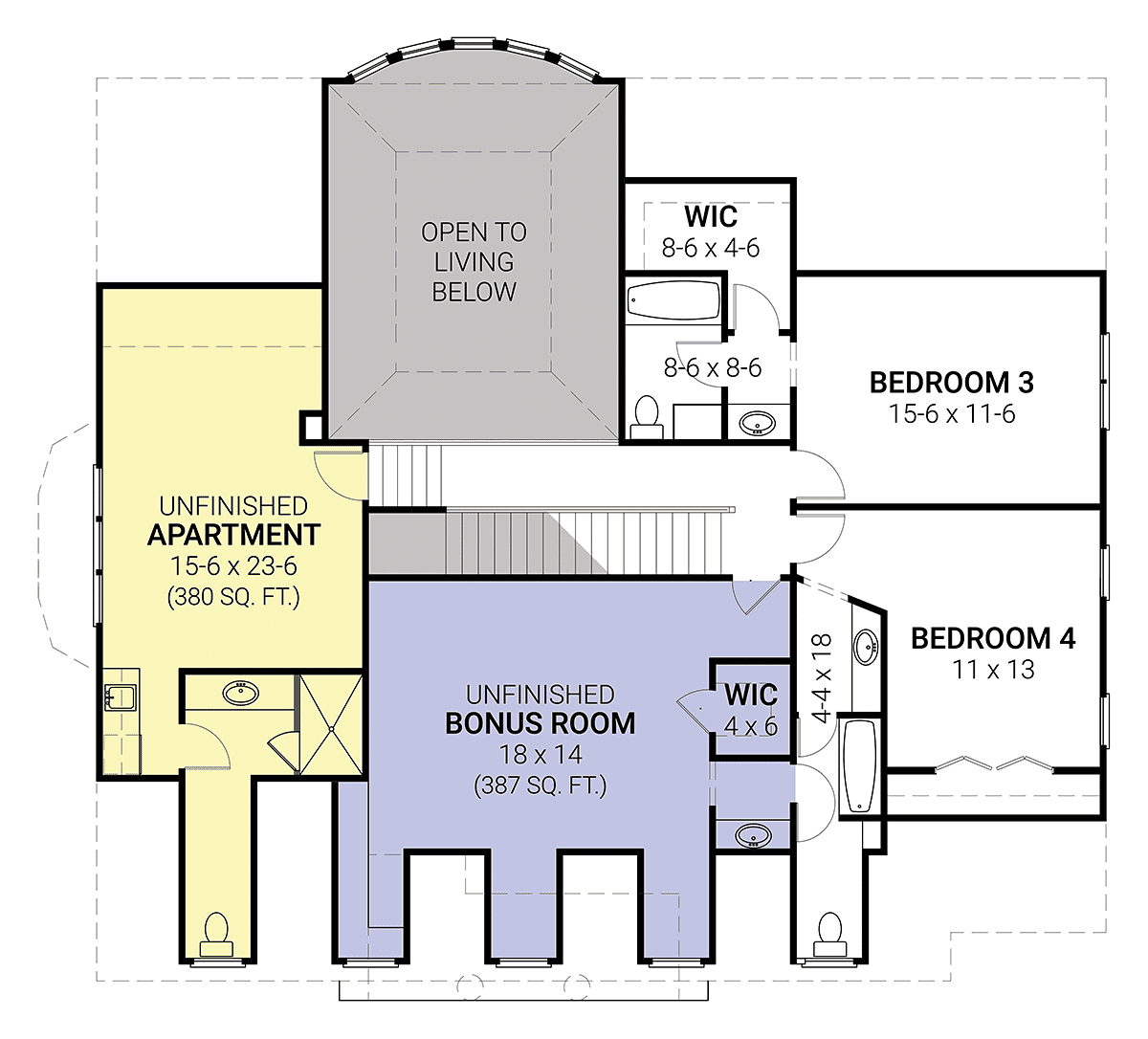

    Plan Number 72057 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

    Plan Number 72057 | Order Code 00WEB | Rear Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 72057 Specifications:
  • Total Living Area: 2674
  • Main Living Area: 1897
  • Upper Living Area: 777
  • Bonus Area: 712
  • Unfinished Basement Area: 1853
  • Garage Area: 469
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 55'
  • House Depth: 49'
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 4
  • Max Ridge Height: 29'9
  • Primary Roof Pitch: 3:12
  • Roof Framing: Stick
  • Porch: 92 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 10'
  • Upper Ceiling Height: 9'

    Available Foundation Types:
  • Walkout Basement
  • Plan Number 72057 Plan Pricing:
    PDF Study Set: $800.00
    Get your plans fast! A complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.

  • 5 Sets: $970.00
  • Reproducible Set: $1,185.00
  • PDF File: $1,185.00
  • CAD File: $1,785.00

  • Right Reading (True) Reverse: $120.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

  • Additional Sets: $80.00
  • Plan Number 72057 | Order Code 00WEB | Specifications and Pricing
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

    1. Complete this On-Line Request Form

    2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

    3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

    Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

    We Work Fast!

    When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
    You can have your plan redesigned in as little as 14 - 21 days!

    We look forward to hearing from you!

    Start today planning for tomorrow!
