Plan Number 74013 | Order Code: 00WEB
FamilyHomePlans.com
U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

Click Here to Mirror Reverse Plan

NOTE: Our records indicate that there may be a delay in shipping said plan number.
Please call our office to confirm prior to placing order.



Plan Number: 74013
  • 2698 Total Living Area
  • 1480 Main Level
  • 1218 Upper Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 64'0 Wide x 49'4 Deep

    Available Foundation Types:
  • Not Applicable
  • Order Code: 00WEB
  • Concept Plan Pkg: $715.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).

  • Right Reading: $135.00




  • Plan Number 74013 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

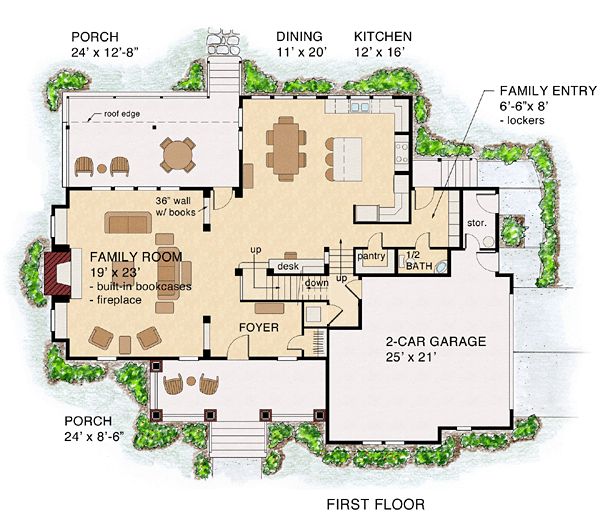

    Plan Number 74013 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

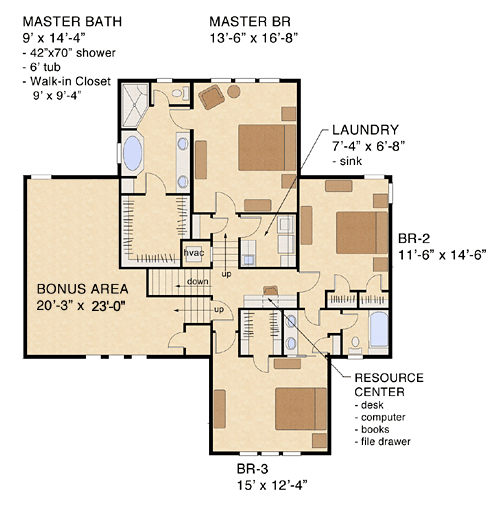

    Plan Number 74013 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 74013 Specifications:
  • Total Living Area: 2698
  • Main Living Area: 1480
  • Upper Living Area: 1218
  • Bonus Area: 430
  • Garage Area: 570
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 64'0
  • House Depth: 49'4
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Primary Roof Pitch: 6:12
  • Roof Framing: Truss and/or Stick
  • Porch: 480 sq ft
  • FirePlace: Yes
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 9'0
  • Upper Ceiling Height: 8'0

    Available Foundation Types:
  • Not Applicable
  • Plan Number 74013 Plan Pricing:
  • Concept Plan Pkg: $715.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
    1. Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
    2. All four exterior elevations
    3. Floor plan(s) with overall dimensions
    4. Roof layout
    5. Written authorization for the plans to be completed by your builder or designer/architect
    6. Four-Time Build License
    7. Not to be considered a complete set of construction documents
    8. Foundation Plan is not included
  • Right Reading: $135.00

  • Plan Number 74013 | Order Code 00WEB | Specifications and Pricing
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Receive a FREE modification estimate in one of 3 ways:

    1) Call 1-913-674-5378 between the hours of 8:00 AM - 5:00 PM CST to discuss the modification process. You will be able to talk to a live person that can give you a FREE modification estimate right over the phone!

    Canadian customers, please call 1-800-361-7526 to discuss modifications.

    2) Email your changes to modifications@familyhomeplans.com. (Itemized list of changes with details)

    3) Download our Modification Request Form (Word Doc format) or alternate (PDF format), complete and fax to 1-866-873-3963. If you cannot download either file, simply fax your modifications along with a cover sheet containing your contact information and please make attention: Family Home Plans Modification Department.

    Please take the time to download and read our FREQUENTLY ASKED QUESTIONS (FAQ) for PLAN MODIFICATION SERVICES (PDF format). It will answer many of the questions you may have about the plan modification process.
