Plan Number: 74020
  • 3500 Total Living Area
  • 2074 Main Level
  • 1426 Upper Level
  • 5 Bedrooms
  • 3 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 80'4 Wide x 95'6 Deep

    Available Foundation Types:
  • Basement - * $400.00
  • Crawlspace
  • Slab - * $400.00

    * May require additional drawing time.
  • Order Code: 00WEB
  • Concept Plan Pkg: $995.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).

  • Right Reading: $135.00

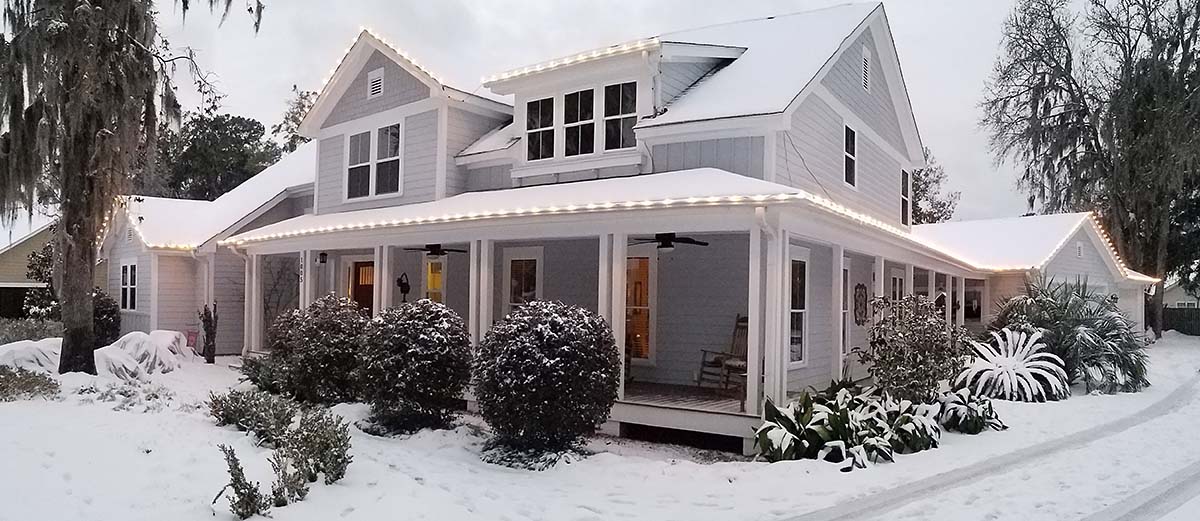

  • Plan Number 74020 | Order Code 00WEB | Front Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

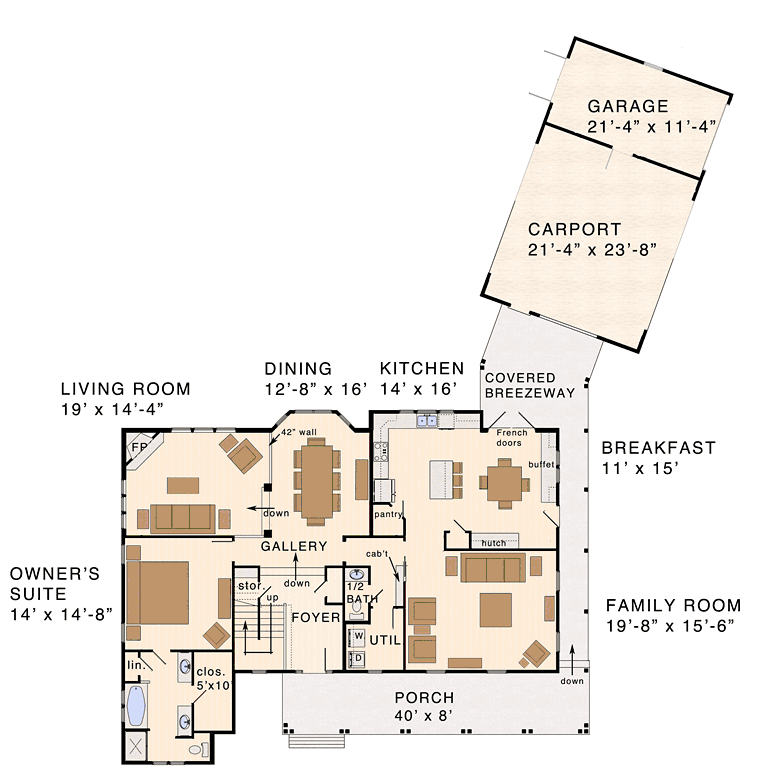

    Plan Number 74020 | Order Code 00WEB | First Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

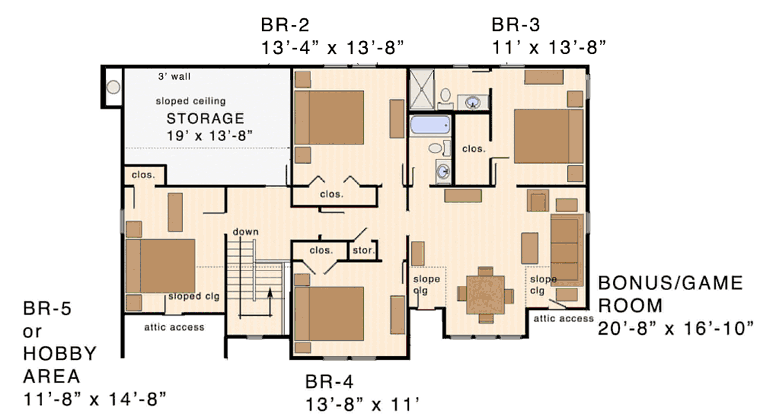

    Plan Number 74020 | Order Code 00WEB | Second Floor Plan
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse

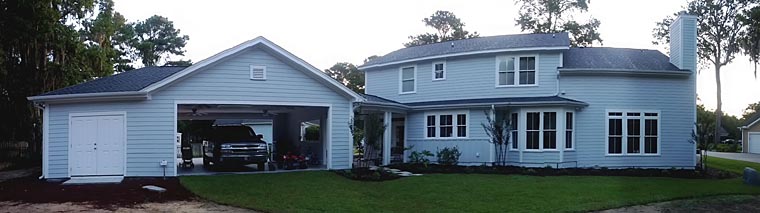

    Plan Number 74020 | Order Code 00WEB | Rear Elevation
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Click Here to Mirror Reverse
    Plan Number 74020 Specifications:
  • Total Living Area: 3500
  • Main Living Area: 2074
  • Upper Living Area: 1426
  • Garage Area: 792
  • Garage Type: Detached
  • Garage Bays: 3
  • House Width: 80'4
  • House Depth: 95'6
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Max Ridge Height: 26'0
  • Primary Roof Pitch: 8:12
  • Roof Framing: Truss
  • Porch: 635 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'0
  • Upper Ceiling Height: 8'0
  • Vaulted Ceiling: Yes

    Available Foundation Types:
  • Basement - $400.00
  • Crawlspace
  • Slab - $400.00
  • Plan Number 74020 Plan Pricing:
  • Concept Plan Pkg: $995.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
    1. Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
    2. All four exterior elevations
    3. Floor plan(s) with overall dimensions
    4. Roof layout
    5. Written authorization for the plans to be completed by your builder or designer/architect
    6. Four-Time Build License
    7. Not to be considered a complete set of construction documents
    8. Foundation Plan is not included
  • Right Reading: $135.00

  • Plan Number 74020 | Order Code 00WEB | Specifications and Pricing
    FamilyHomePlans.com
    U.S. customers call 1-800-482-0464 | Canadian customers call 1-800-361-7526

    Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We at believe that modification estimates should be FREE! We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle. Simply contact the modification department...

    Phone: 866-465-5866 - Talk to a live person that can give you and FREE modification estimate over the phone!

    Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

    Email: Click Here. Please Include your telephone number, Plan ID, foundation type, state you are building in and a specific list of changes.

    ...and you will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of.

    Please Note: Average range to modify a house plan is typically between $900-$1500 and for a Garage modification, around $300-$600.
