Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,466.00

Plan Pricing

PDF File: $1,466.00
5 Sets: $1,167.00
8 Sets: $1,215.00
Reproducible Set: $1,466.00
CAD File: $2,335.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $375.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $80.00

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $335.00
May require additional drawing time, please call to confirm before ordering.
Slab : $335.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3045 sq ft
Main Living Area:	1976 sq ft
Upper Living Area:	1069 sq ft
Garage Area:	1068 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement Crawlspace - * $335.00 Slab - * $335.00
Exterior Walls:	2x6
House Width:	74'10
House Depth:	61'8
Number of Stories:	2
Bedrooms:	4
Full Baths:	3
Half Baths:	1
Max Ridge Height:	27'3 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	609 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Plan Description

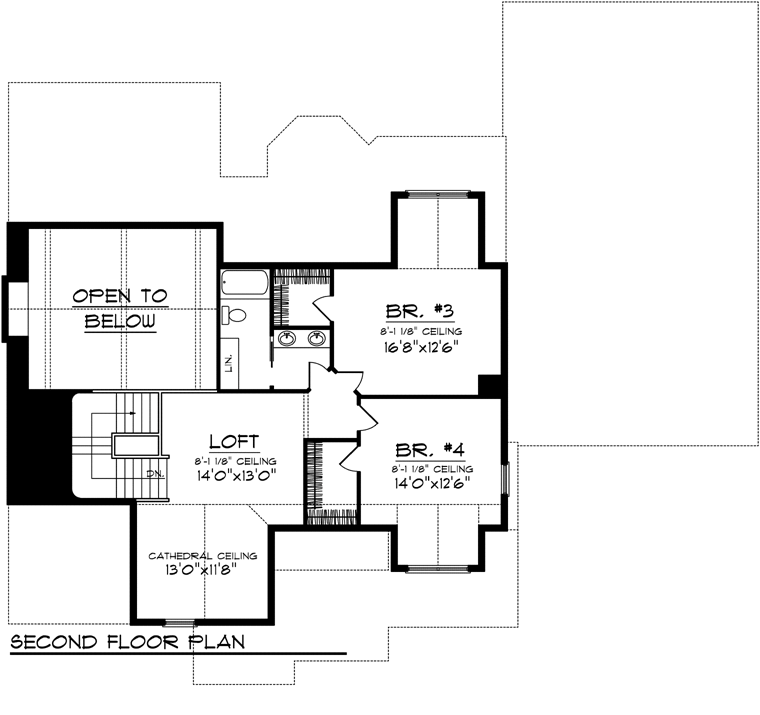

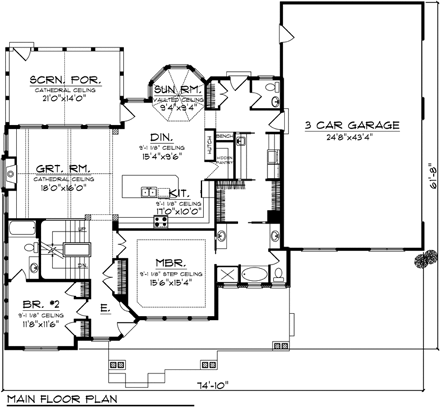

Craftsman style beam and corbel combinations along with dual column and stone accents give this home a flavor that is popular in today’s market. In just over 3,000 square feet, you’ll not only find the expected great room, dining and kitchen combination, but a sunroom with circular vaulted ceiling and massive exposed wood beams in the ceilings. The master suite is located on the main floor and includes a step ceiling, large walk-in closet and Jacuzzi tub. A second bedroom that can double as a den is found to the left of the entry at the front of the home. Upstairs, a loft with cathedral ceiling and two additional bedrooms, each with walk-in closet and full bath can be found. A side-load, three-stall garage completes this home.

What's Included?

Cover sheet with Front Rendering.

Foundation and Floor Plans at 1/4" = 1'0" scale.

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
