Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
Foundation Plans: All necessary notations and dimensions are included.
Interior Elevations: (call 1-800-482-0464 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: (call 1-800-482-0464 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.
Detailed Framing Plans: are not included with these plans. Framing plans can typically be obtained locally through a local lumber yard.
Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
Q:What is the total square footage? In the upstairs section, is it a pitched roof, or is it all straight walls with a flat ceiling?
A:The studio space is 432 square feet.
The ceilings are sloped and vaulted
Date Posted: 08-Jun-20
Q:Plan 73758, I want to know the dimensions of the golf cart area? And I want to know if this can be built with ruff cut true 2”x4” lumber?

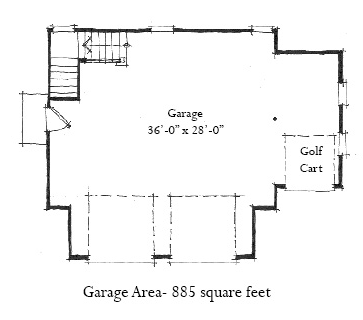

A:The golf cart area is 8’ x 16’ (outside)
Not sure if local officials will allow rough cut 2x4, you’d have to ask them
Date Posted: 01-Jun-20
Q:I am allowed 5m height to the midpoint of the roof. Can you tell me what this measurement is?
Date Posted: 30-Mar-20
Q:When I receive this plan after purchasing- what details are included with it? Is there a material list, or electrical chart or plumbing? I am mostly concerned about a material list & a framing & roof chart. I was curious to see if the other was included. Also slab detail please.
A:The set contains a foundation plan, floor plans, roof plan, elevations, electrical plan, and wall sections and details.
Framing plans are not included
Materials list is not included
Date Posted: 13-Jun-19
Q:I'm very interested in these plans. I wanted to ask 4 questions: (1) how far out does the front shed stick out of the structure? (2) what are the dimensions of the garage doors? (3) what are the rough dimensions of the 2nd floor space? (4) do you have any real pictures of this garage as built by your customers? Thanks so much and looking forward to hearing from you. Best, Curtis
2- 8’ wide by 7’ high
3- 14’ x 28’
4- No pictures
Date Posted: 20-Feb-17
Q:Do you have the info for roof pitch and exterior wall types. also is there a BCIN number available for this building. Thanks, Frank
A:We appreciate your interest in our firm. Garage has a:
Roof Pitch of 12/10
2x stud wall with lap siding.
Our drawings do not have a BCIN number
Date Posted: 07-Mar-11
Q:I have three questions regarding plan 73758: 1) What is the ceiling height of the garage level and of the loft area? 2) The snow load rating for my location in Colorado is 63 (roof) / 90.1 (ground). Can the trusses for this plan be modified to accommodate this additional load? If so, what would be involved, would this effect the required wall construction (thickness, stud spacing, etc), and how much would this cost? 3) Do the plans include a materials list? Please get back to me with this information as quickly as possible as I am hoping to start my site preparation before the ground freezes! Sincerely, Peter Fritz
1. This plan has a 9’-0” garage plate height (ceiling height) and the interior loft walls are located at the 5’-0” and vault to the ridge. When building a flat area could be located at 8’ or 9’ depending on the wishes of the owner.
2. As with any stock plan sale you may purchase the plans should be verified to meet local codes and special requirements such as high wind, snow, or seismic loads. Your builder will be a great help with this and what is required for permitting as well as being familiar with a local engineer or architect.
3. The plans do not include a materials list.
Please let me know what else I can do, we are happy to help.
Date Posted: 25-Sep-09
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
