1 Car Garage Plan 78662

• PDF Study Set: $594.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $770.00
• 5 Sets: $550.00
• 8 Sets: $638.00
• Reproducible Set: $946.00
• CAD File: $1,078.00
  Single Build License issued on CAD File orders.
• Materials List: $137.50
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $40.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	222 sq ft
Upper Living Area:	222 sq ft
Garage Area:	450 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	18'0"
House Depth:	25'0"
Number of Stories:	2
Max Ridge Height:	18'1" from Front Door Floor Level
Primary Roof Pitch:	19:12
Roof Load:	30 psf
Roof Framing:	Stick
Main Ceiling Height:	8'0"

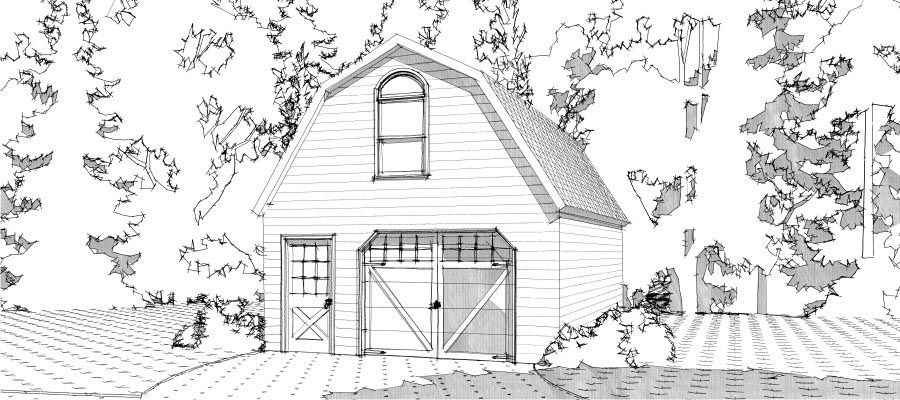

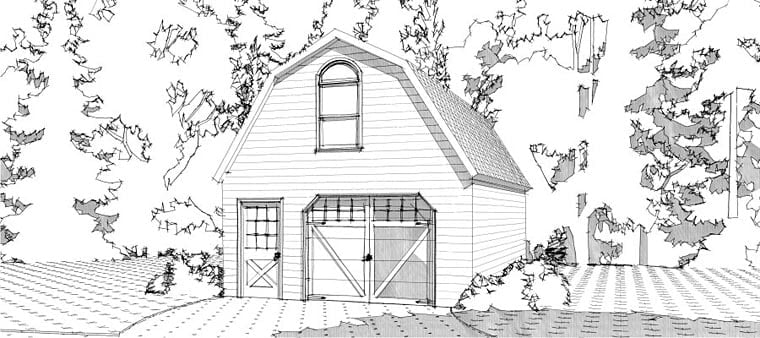

Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.

Foundation: Complete with dimensions, dimensioned plumbing and referenced details

Elevations: Complete with dimensions, ridge heights and special notes and materials

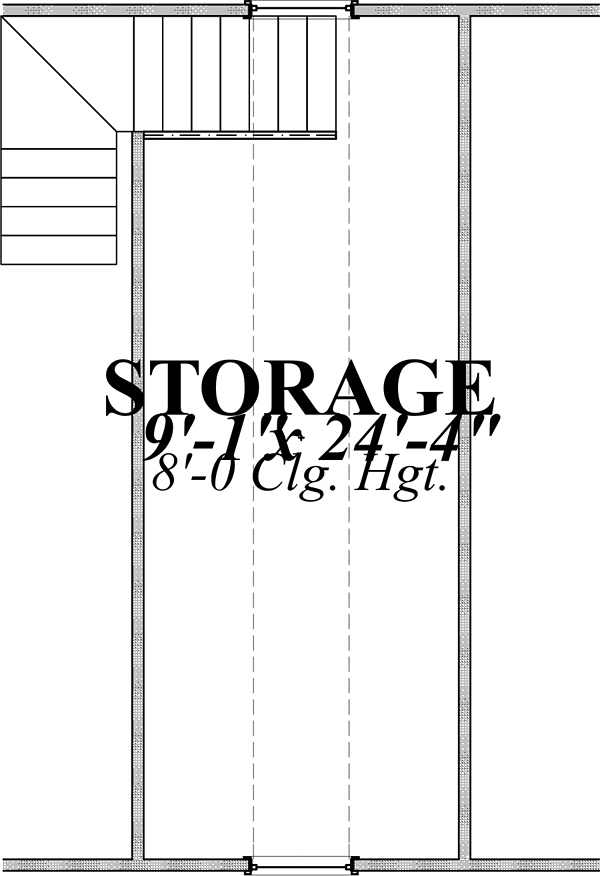

Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.

Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.

Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.

Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.

Interior Elevations: Including applicable cabinets, electrical, and special construction notes.

Floor joist: Complete with spans, sizes and direction (if applicable).

Ceiling Joist: Complete with spans, sizes and direction Sections: Complete with dimensions, notes and Specifications

Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
