House Plan 80618

• PDF File: $1,025.00
• 1 Set: $795.00 **
• 5 Sets plus PDF File: $1,075.00
• 8 Sets: $1,105.00
• CAD File: $1,750.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Designer sends a PDF via email to each customer that orders a 5 or 8 set package.

Available Foundation Types:

• Walkout Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2794 sq ft
Main Living Area:	1808 sq ft
Upper Living Area:	986 sq ft
Unfinished Basement Area:	1808 sq ft
Garage Area:	720 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Walkout Basement
Exterior Walls:	2x4
House Width:	59'3
House Depth:	72'9
Number of Stories:	2
Bedrooms:	4
Full Baths:	2
Half Baths:	1
Max Ridge Height:	28'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	91 sq ft
Deck:	144 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'1
Upper Ceiling Height:	8'1
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space
• Study

Craftsman Style Traditional House Plan

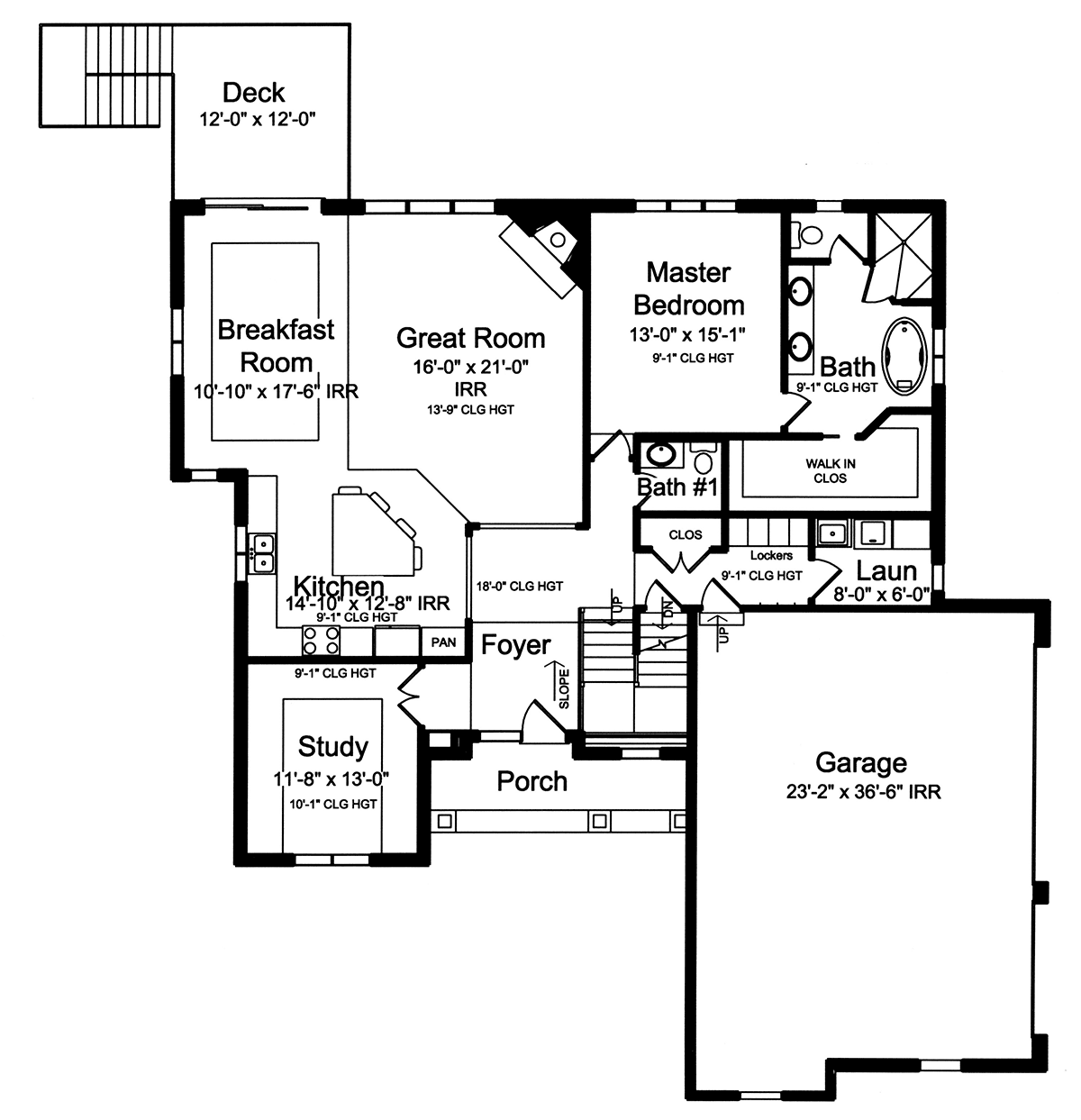

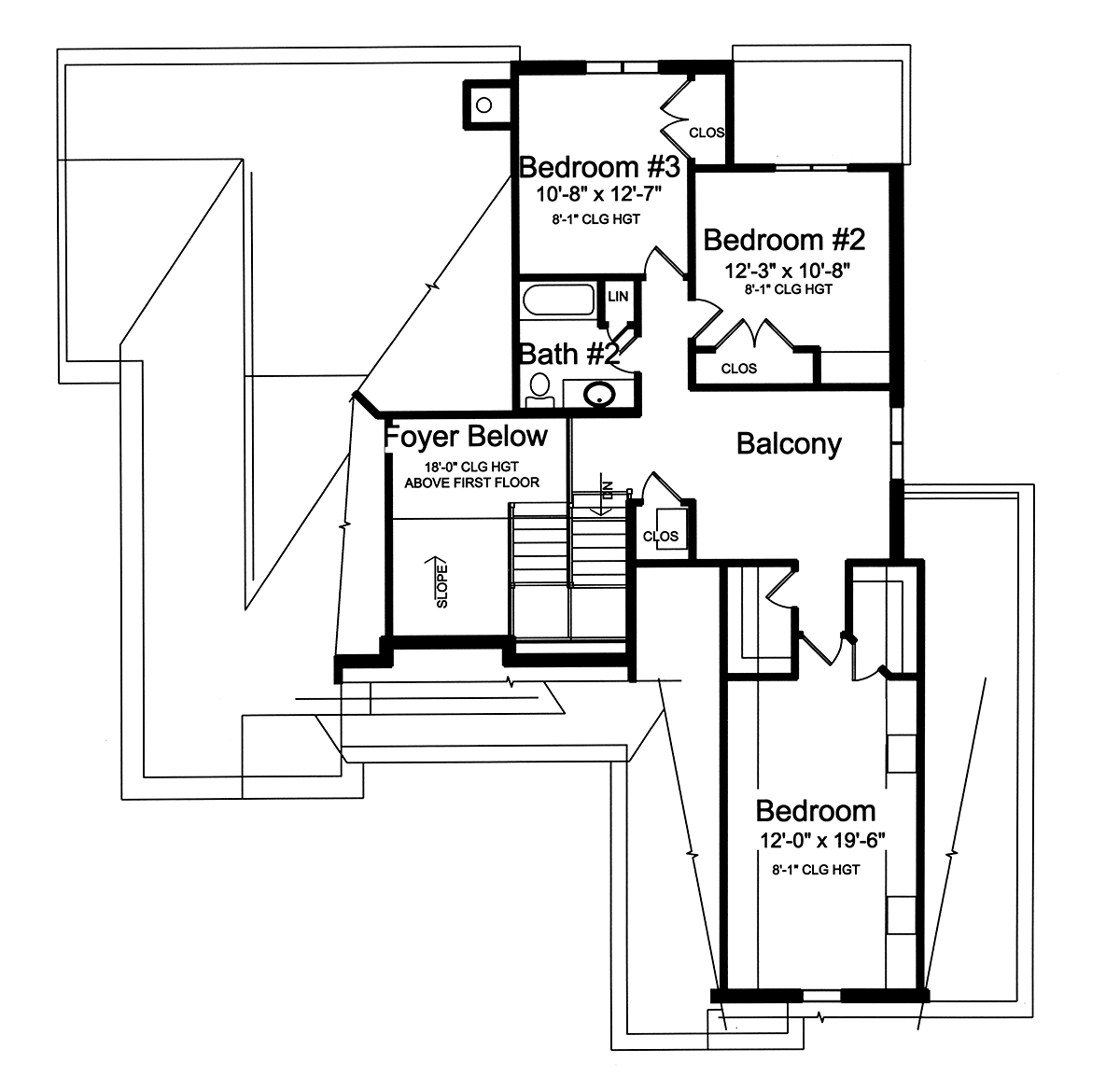

A covered front Porch, open concept living area, First Floor Master Suite, Private Study with three upper level bedrooms and a loft combine to create a beautiful home. A 9’ standard ceiling height on the main level is complimented by 18’ in the Foyer, 13’9” in the Great Room, and 10’ in the Dining Area. The Kitchen Island serves as a favorite gathering space for family and guests. The Private Study accommodates the new “work from home” trend. A double bowl vanity, stand alone tub, large shower and spacious walk-in closet pamper the homeowner in the deluxe Master Suite. The second floor balcony overlooks the Foyer and leads to a loft offering a place for the younger family members to gather.

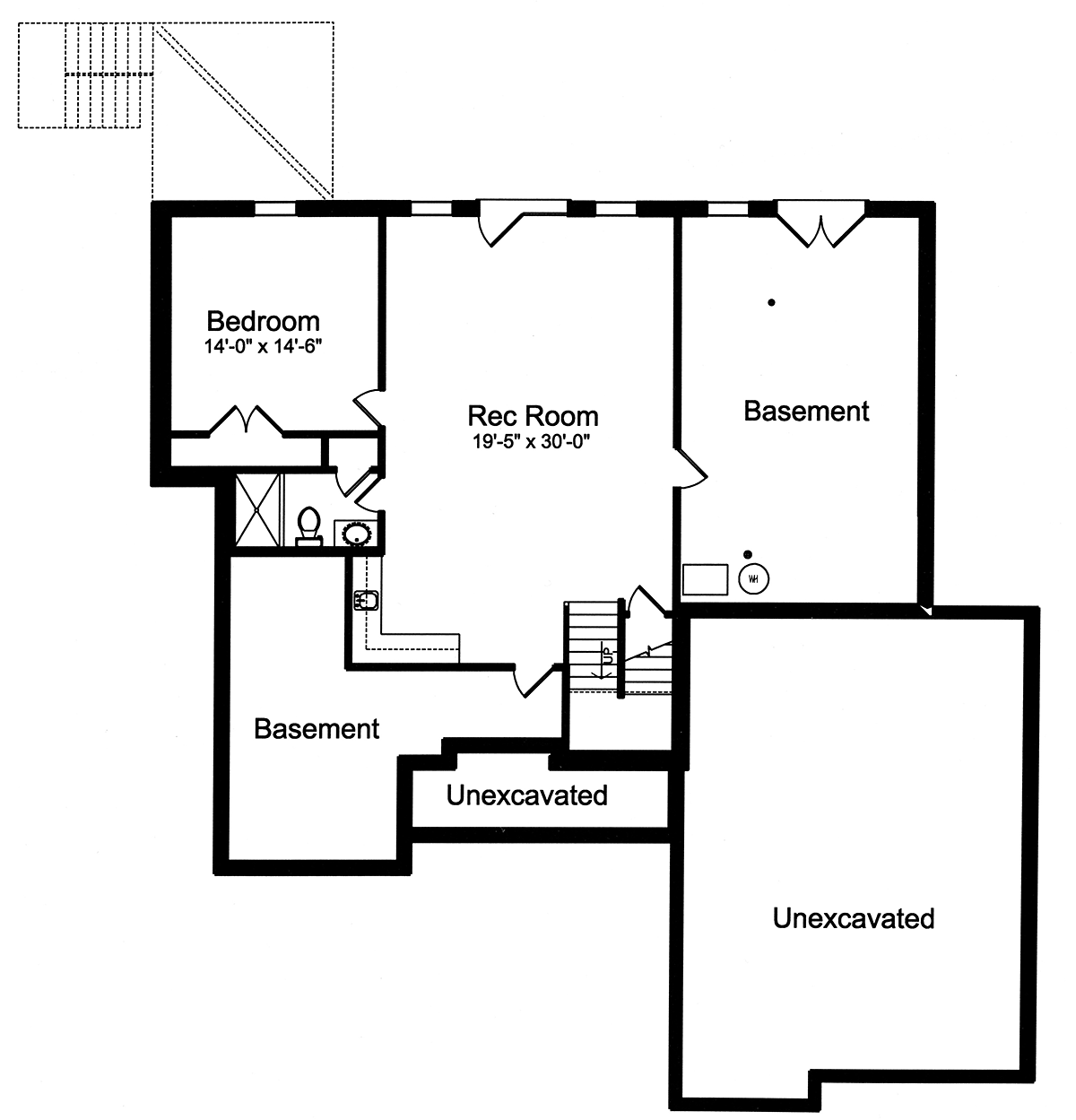

Included with this plan is a full walk-out lower level, basement foundation, including a bedroom, bath with shower, Bar Area, Rec Room and an abundance of storage. All of these features make this a great home for the growing family and fun loving entertainment.

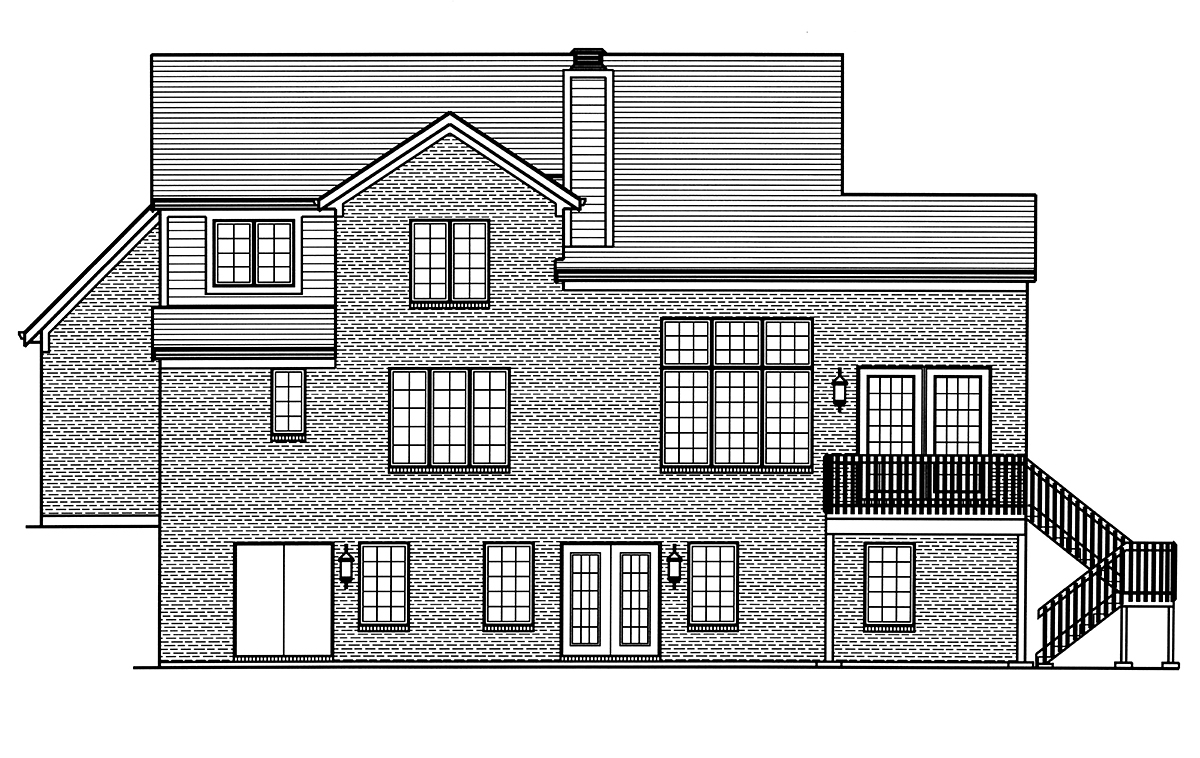

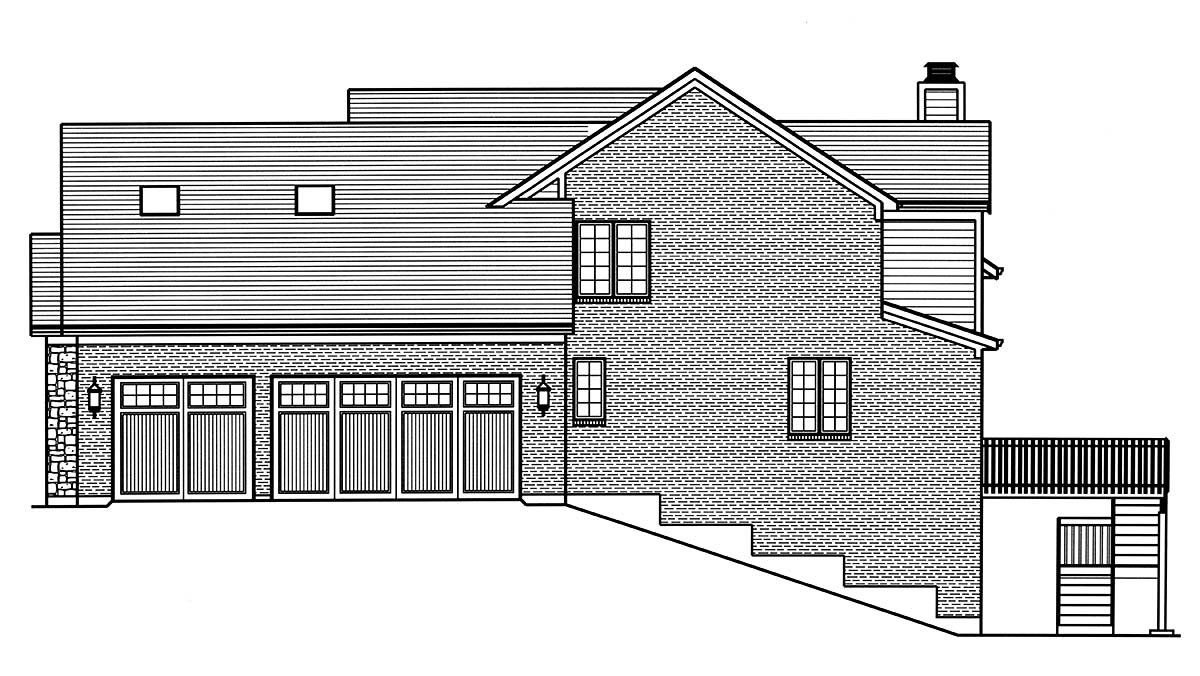

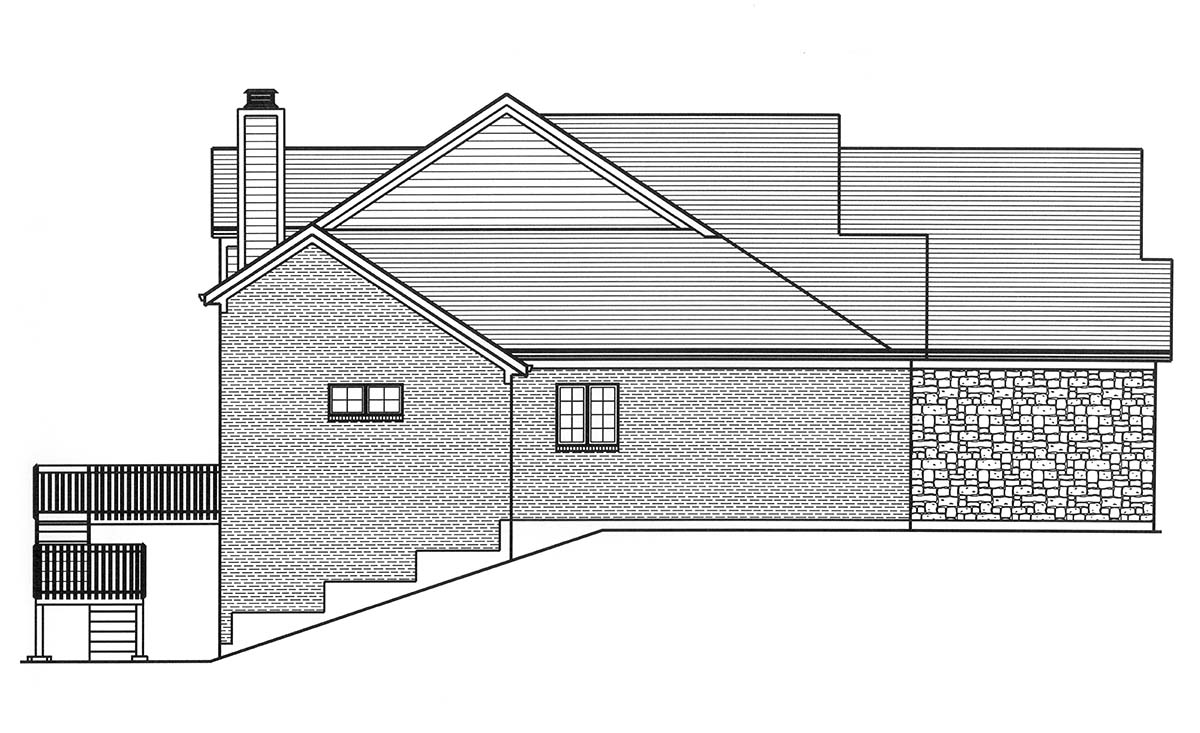

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.

Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown

Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details: Foundation reinforcing detail show size of footing and foundation wall, size and spacing of rebar. Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights. Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available. Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing. Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built. Wall section show typical framing detail of house. Most exterior walls are 2x4s; except where wall height requires 2x6s.
