Garage-Living Plan 81707

• PDF File: $1,925.00
• 5 Sets: $2,156.00
• 5 Sets plus PDF File: $2,237.00
• CAD File: $2,695.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $49.00

Additional Notes

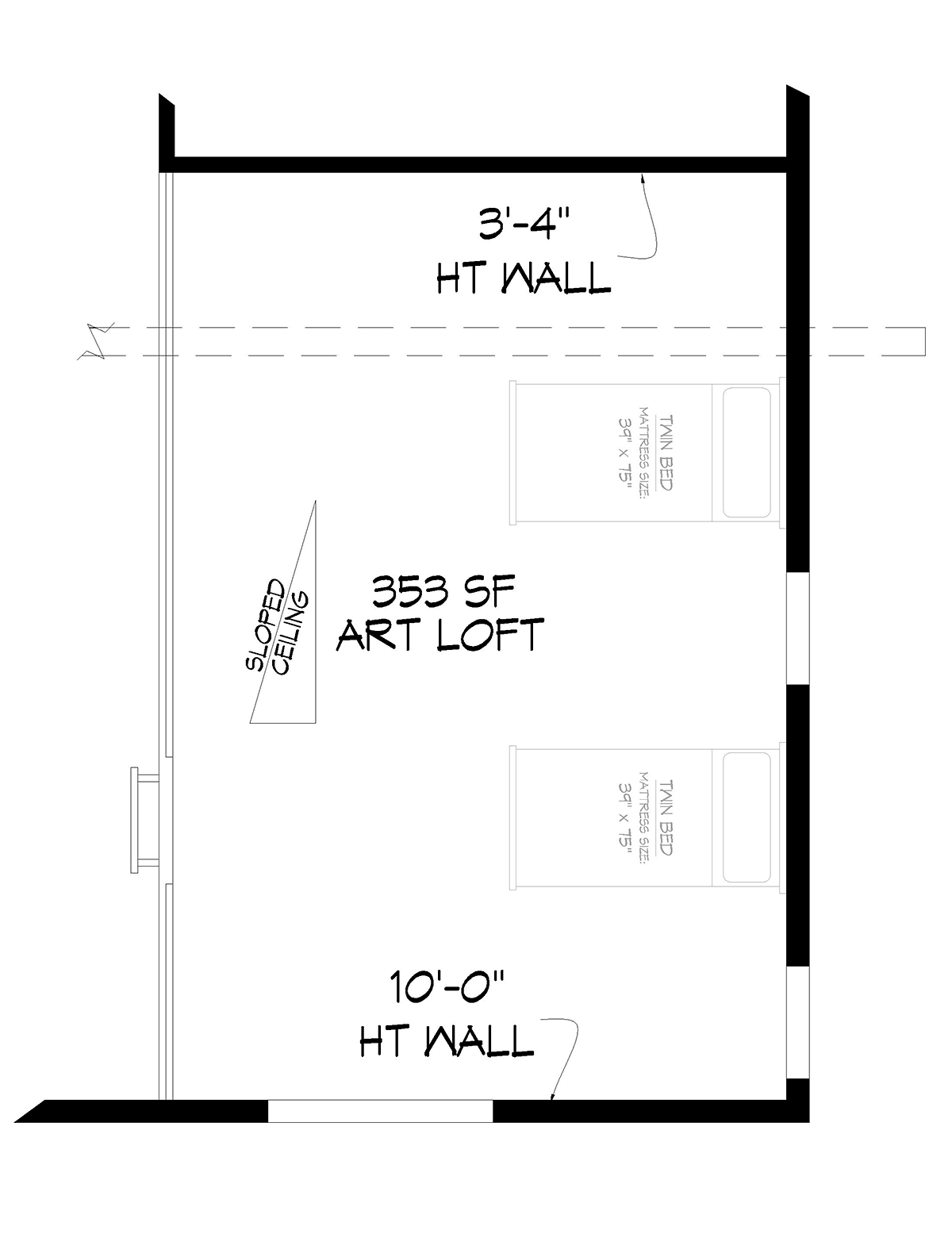

Art Loft: 353 sq. ft. (heated)

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2308 sq ft
Main Living Area:	549 sq ft
Upper Living Area:	1406 sq ft
Garage Area:	857 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement
Exterior Walls:	2x6
House Width:	44'0
House Depth:	47'0
Number of Stories:	2
Bedrooms:	3
Full Baths:	3
Max Ridge Height:	32'3 from Front Door Floor Level
Primary Roof Pitch:	3.5:12
Roof Load:	60 psf
Roof Framing:	Stick
Porch:	416 sq ft
Main Ceiling Height:	10'
Upper Ceiling Height:	8'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
