House Plan 91667
Southwest Style with 3 Bed, 2 Bath, 2 Car Garage
sq ft
1526beds
3baths
2bays
2width
66'depth
36'
click for more images
Plan Pricing from $1,045.00
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1526 sq ft |
| Main Living Area: | 1526 sq ft |
| Unfinished Basement Area: | 1526 sq ft |
| Garage Area: | 452 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement |
| Exterior Walls: | 2x4 |
| House Width: | 66' |
| House Depth: | 36' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 17'10 from Front Door Floor Level |
| Primary Roof Pitch: | 7:12 |
| Roof Load: | 35 psf |
| Roof Framing: | Truss |
| Porch: | 36 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
What's Included?
ELEVATIONS: Drawn @ 1/4" = 1'-0" include: Material labels, Floor to floor heights, Roof slope indicators, Attic ventilation notes
FLOOR PLANS: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, Door and window sizes, Complete and accurate dimensions, Room labels and interior room sizes Electrical layout, All code related notes, Building Section markers, Floor joist size, spacing and direction
FOUNDATION or BASEMENT PLAN: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, All foundation wall and footing sizes, Complete and accurate dimensions, All code related notes, Building Section markers, Floor and deck joist size, spacing and direction, Rough-in bath location (if applicable), Mechanical equipment location, Electrical layout, Door and window sizes
ROOF FRAMING PLAN Drawn @ 1/4" = 1'-0", includes: All Beam and header sizes and locations, Individual rafter and/or roof truss locations, Special truss locations (i.e. hip-masters, girder trusses, etc.), Beam or truss hangers indicated, Point load locations indicated, Building Section markers, All code related notes, All necessary notes pertaining to the structural system
BUILDING SECTIONS Drawn @ 1/4" = 1'-0" scale, include: Beam sizes, connections, and locations, Floor joist size and spacing, Roof trusses/rafters sizes and spacing, Floor to floor heights, Non-typical plate heights indicated
TYPICAL WALL SECTIONS Drawn @ 1/2" = 1'-0" scale, include: All labels indicating wall construction, Foundation wall thickness and reinforcing, Insulation type and thickness
MISCELLANEOUS NOTES AND DETAILS Miscellaneous framing details, Stairway details, Miscellaneous framing details, General Notes page covering all current UBC requirements for homes
FLOOR PLANS: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, Door and window sizes, Complete and accurate dimensions, Room labels and interior room sizes Electrical layout, All code related notes, Building Section markers, Floor joist size, spacing and direction
FOUNDATION or BASEMENT PLAN: Drawn @ 1/4" = 1'-0" scale, include: All post and beam sizes and locations, All foundation wall and footing sizes, Complete and accurate dimensions, All code related notes, Building Section markers, Floor and deck joist size, spacing and direction, Rough-in bath location (if applicable), Mechanical equipment location, Electrical layout, Door and window sizes
ROOF FRAMING PLAN Drawn @ 1/4" = 1'-0", includes: All Beam and header sizes and locations, Individual rafter and/or roof truss locations, Special truss locations (i.e. hip-masters, girder trusses, etc.), Beam or truss hangers indicated, Point load locations indicated, Building Section markers, All code related notes, All necessary notes pertaining to the structural system
BUILDING SECTIONS Drawn @ 1/4" = 1'-0" scale, include: Beam sizes, connections, and locations, Floor joist size and spacing, Roof trusses/rafters sizes and spacing, Floor to floor heights, Non-typical plate heights indicated
TYPICAL WALL SECTIONS Drawn @ 1/2" = 1'-0" scale, include: All labels indicating wall construction, Foundation wall thickness and reinforcing, Insulation type and thickness
MISCELLANEOUS NOTES AND DETAILS Miscellaneous framing details, Stairway details, Miscellaneous framing details, General Notes page covering all current UBC requirements for homes
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

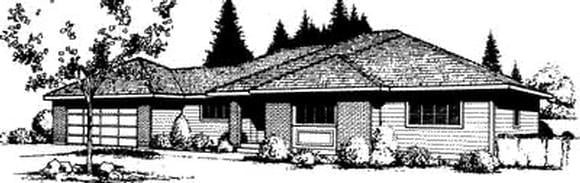

Elevation
Level One
Quick Specs
1526 Total Living Area1526 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
66' W x 36' D
Quick Specs
1526 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
66' W x 36' D
Buy This Plan
Have any Questions? Please Call 800-482-0464 and our Sales Staff will be able to answer most questions and take your order over the phone. If you prefer to order online click the button below.
