House Plan 24733

• PDF Study Set: $1,000.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $1,200.00
• 1 Set: $1,000.00
• 5 Sets: $1,100.00
• 5 Sets plus PDF File: $1,300.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $150.00
• Additional Sets: $50.00

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

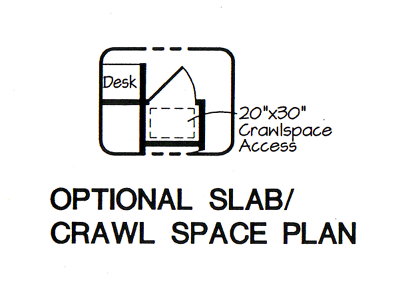

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $200.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $200.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6 (option noted on wall section only): No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2673 sq ft
Main Living Area:	1148 sq ft
Upper Living Area:	1525 sq ft
Unfinished Basement Area:	1199 sq ft
Garage Area:	484 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace - * $200.00 Slab - * $200.00
Exterior Walls:	2x4 2x6 (option noted on wall section only)
House Width:	74'
House Depth:	41'8
Number of Stories:	2
Bedrooms:	4
Full Baths:	2
Half Baths:	1
Max Ridge Height:	28'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	45 psf
Roof Framing:	Stick
Porch:	580 sq ft
Deck:	267 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Windows for Light and Views

The covered porch spans the front of the home and wraps around the sides. A balcony with window seat connects the secondary bedrooms with the master suite. An extended bar in the kitchen ends in an octagonal table, serving both the nook and the family room. This home is designed with basement, slab, and crawlspace foundation options.

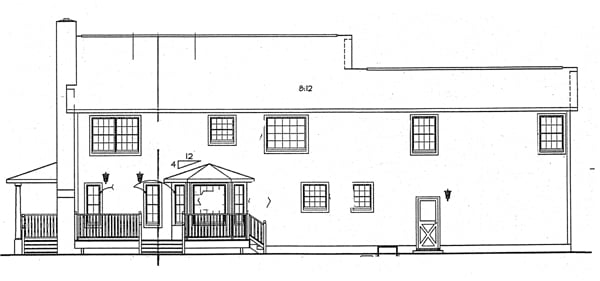

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.

Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.

Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.

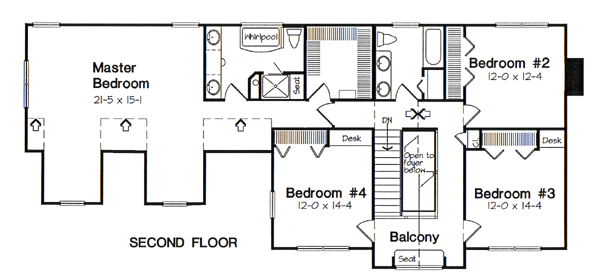

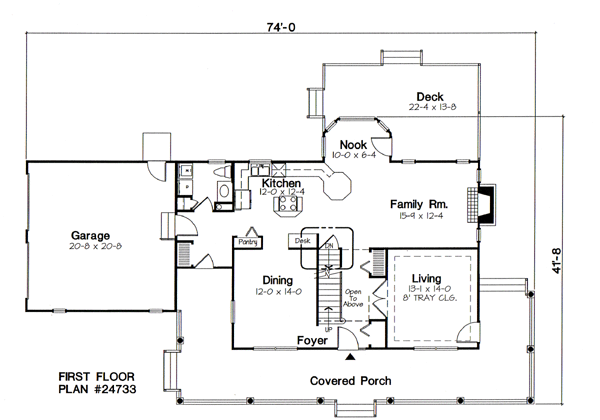

Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.

Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
