House Plan 41807

• PDF File: $1,350.00
• 5 Sets: $1,525.00
• 5 Sets plus PDF File: $1,600.00
• CAD File: $2,600.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $245.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Available Foundation Types:

• Basement : $395.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $295.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $395.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: $200.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2765 sq ft
Main Living Area:	1823 sq ft
Upper Living Area:	942 sq ft
Garage Area:	2245 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 - * $200.00 2x6
House Width:	112'0
House Depth:	61'0
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Half Baths:	2
Max Ridge Height:	28'8 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	831 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Flex Space
• Front Porch
• Open Floor Plan
• Pantry
• Storage Space
• Workshop

Barndominium Construction Plan With Large Shop

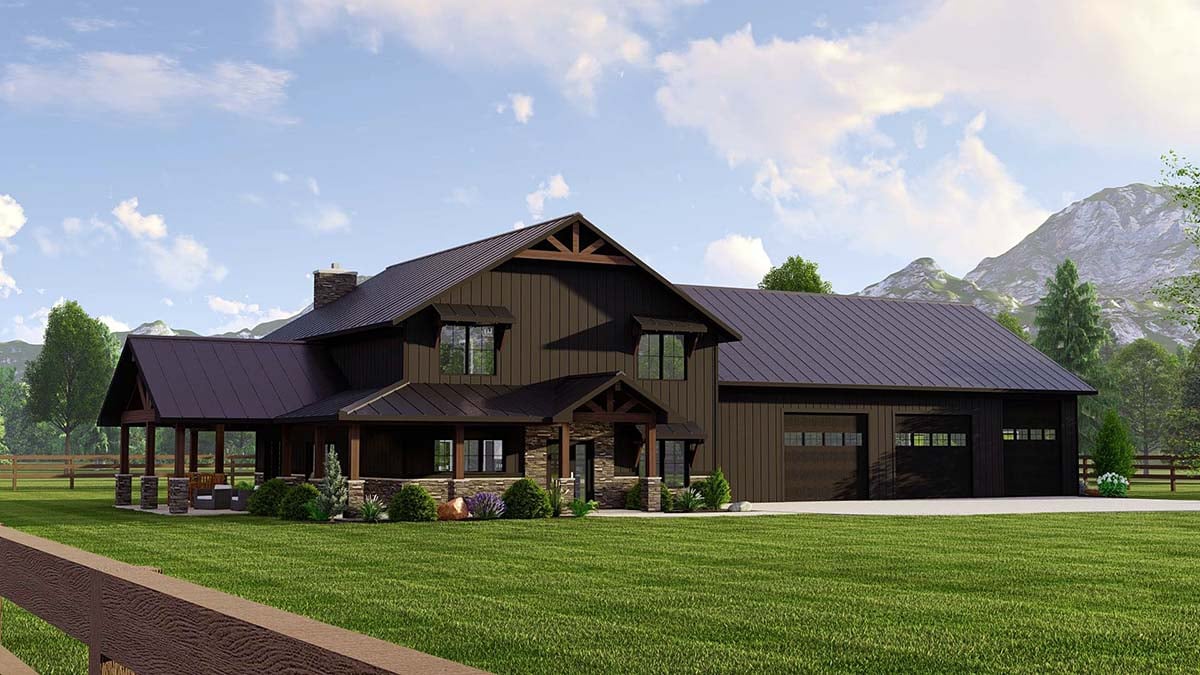

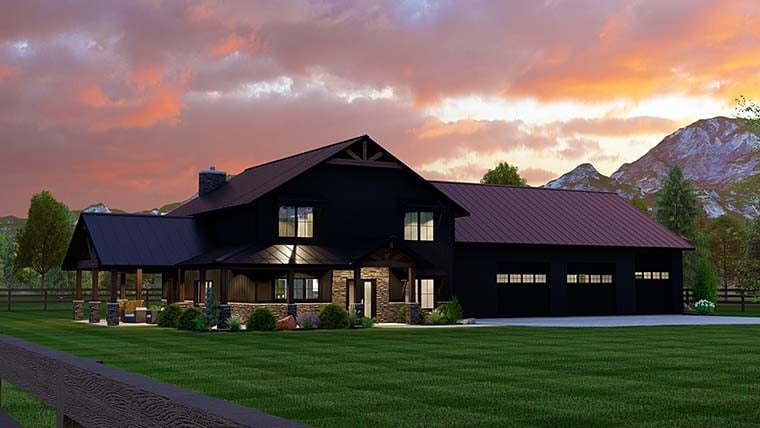

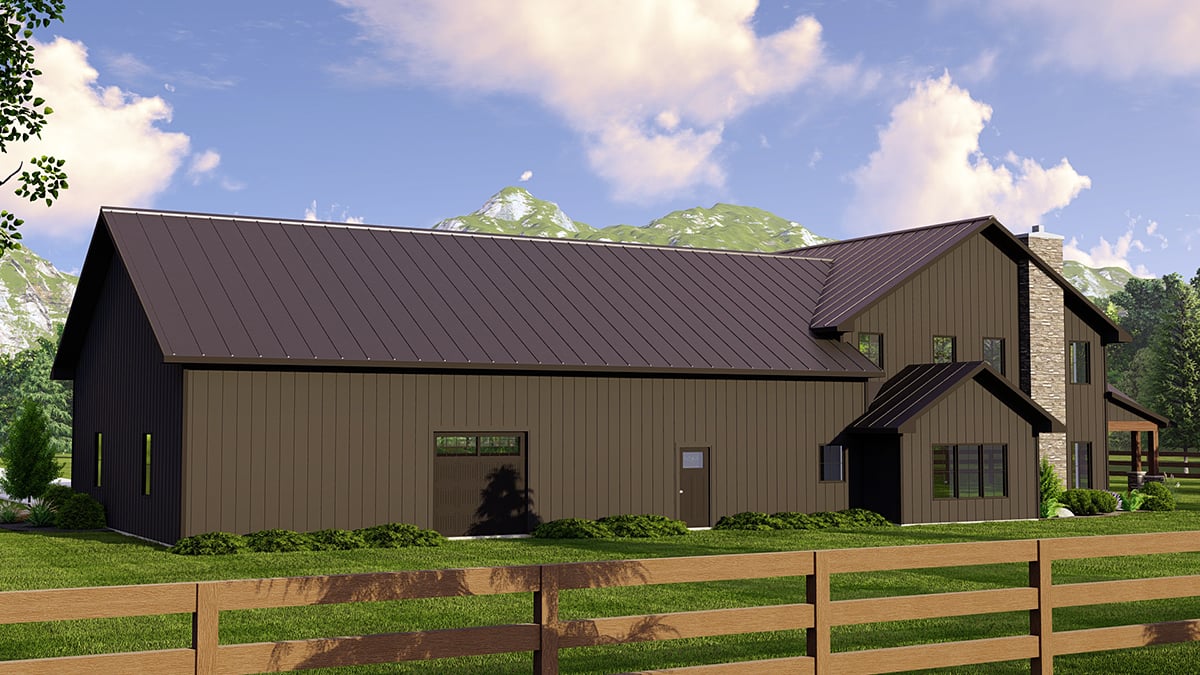

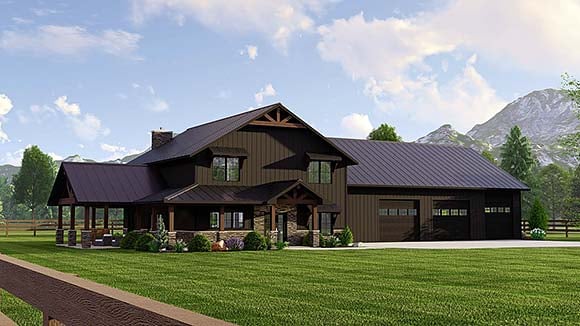

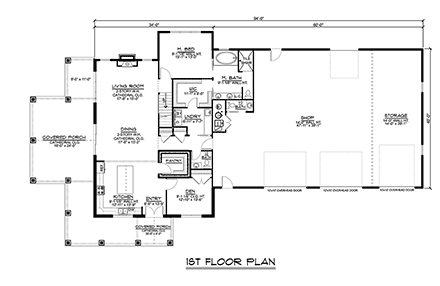

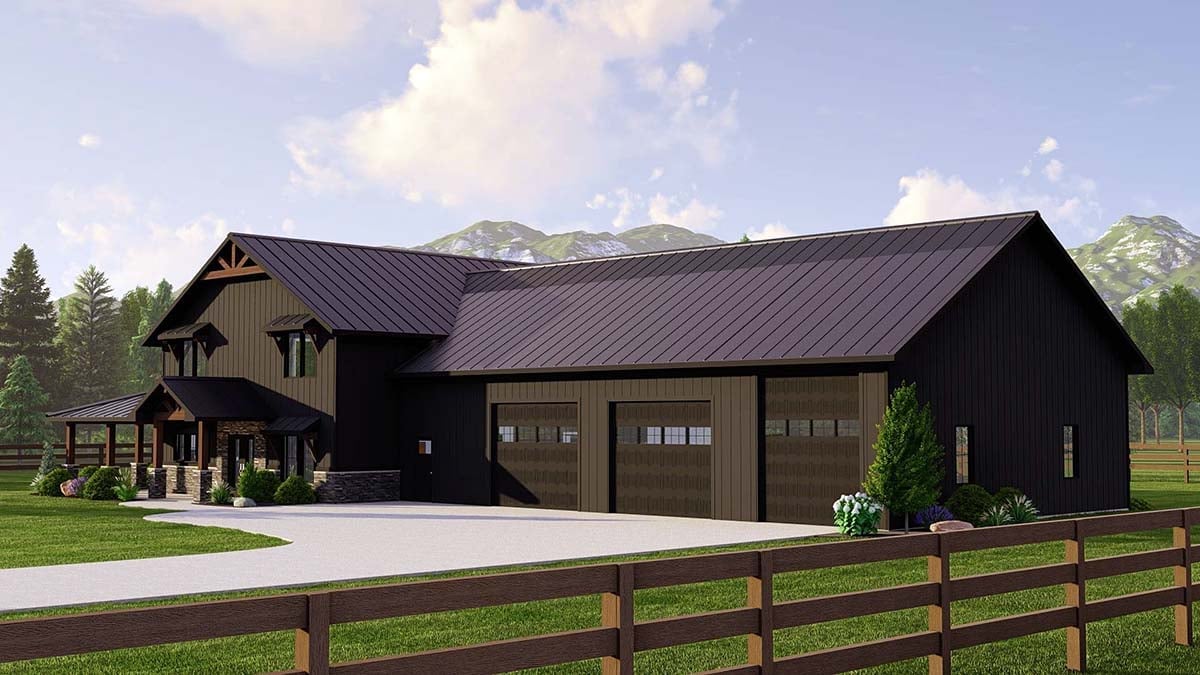

Barndominium Construction Plan 41807 has 2,765 square feet of living space, 3 bedrooms, and 2.5 bathrooms. Children’s bedrooms are located upstairs, and the primary owners’ suite is on the main level. There is so much room in the huge garage/shop. Four garage doors of various sizes will accommodate all of your vehicles. For example, across the front, the first overhead door measures 12' x 10', second door is 12' x 10', and third door is 10' x 12'. The final door on the back of the garage will be used for a smaller vehicle.

Barndominium Construction Plan with Wrap Covered Porch

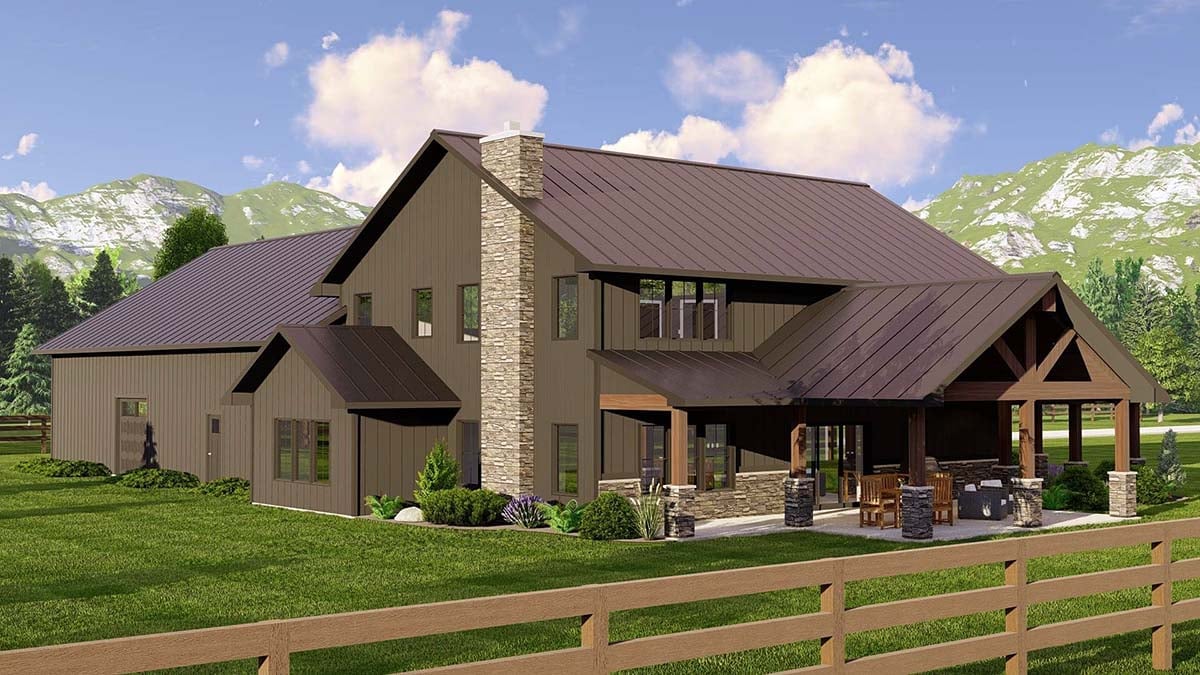

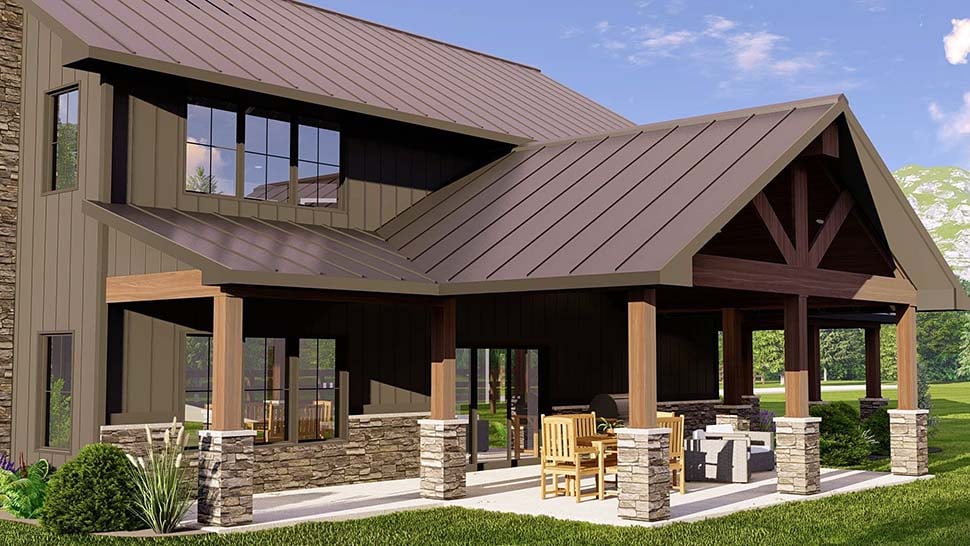

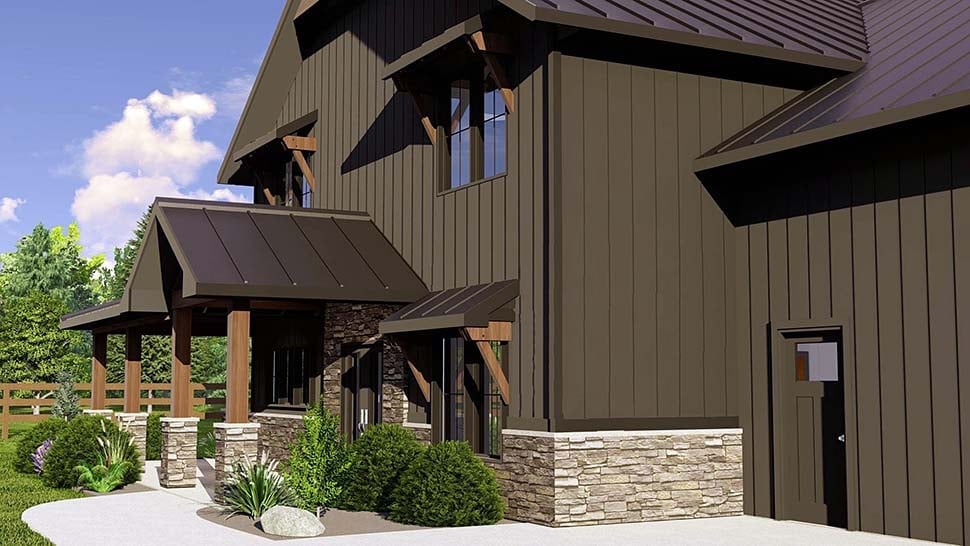

Buyers will choose Barndominium Construction Plan 41807 for several reasons. Firstly, it has a great covered porch which wraps around two sides of the living space. From the dining room, walk out to a section with cathedral ceiling which measures 18' wide by 24' deep. Here is a great place to set up the grill and enjoy outdoor entertaining with friends and family. Notice that there is also a smaller section with a cathedral ceiling at the front door entrance. This entrance boasts a welcoming set of French doors which open into the warm kitchen.

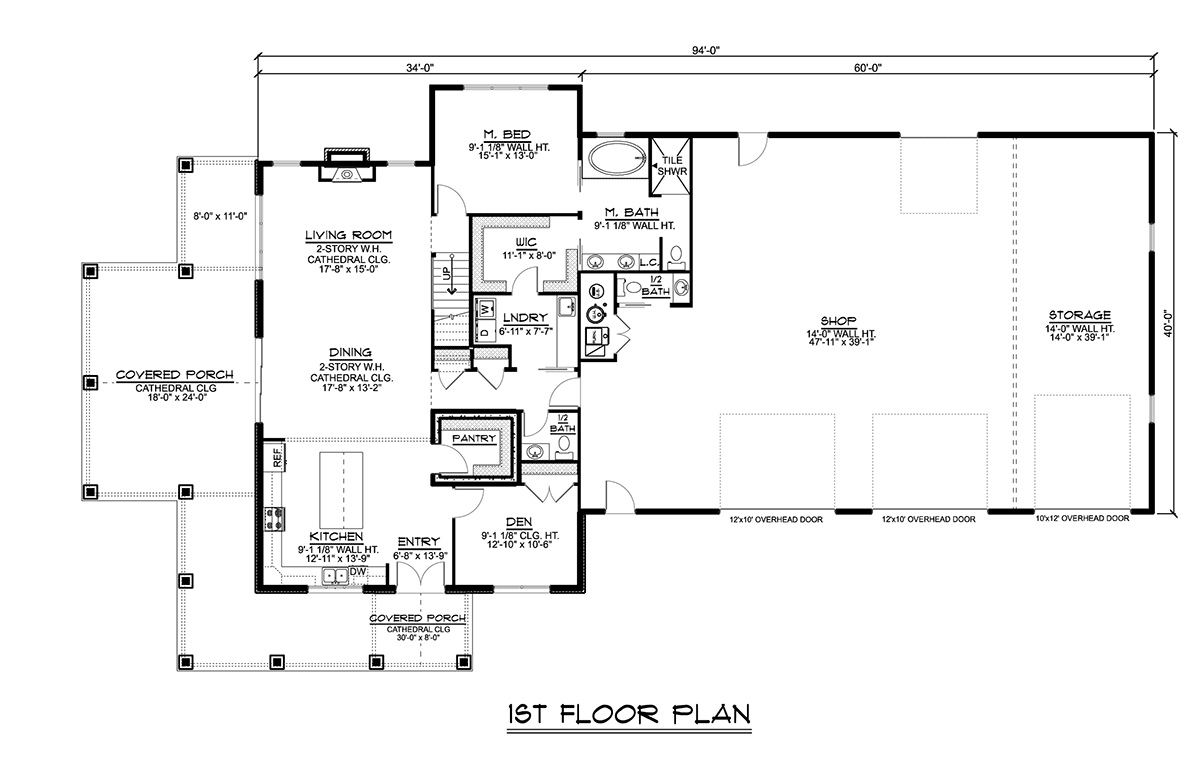

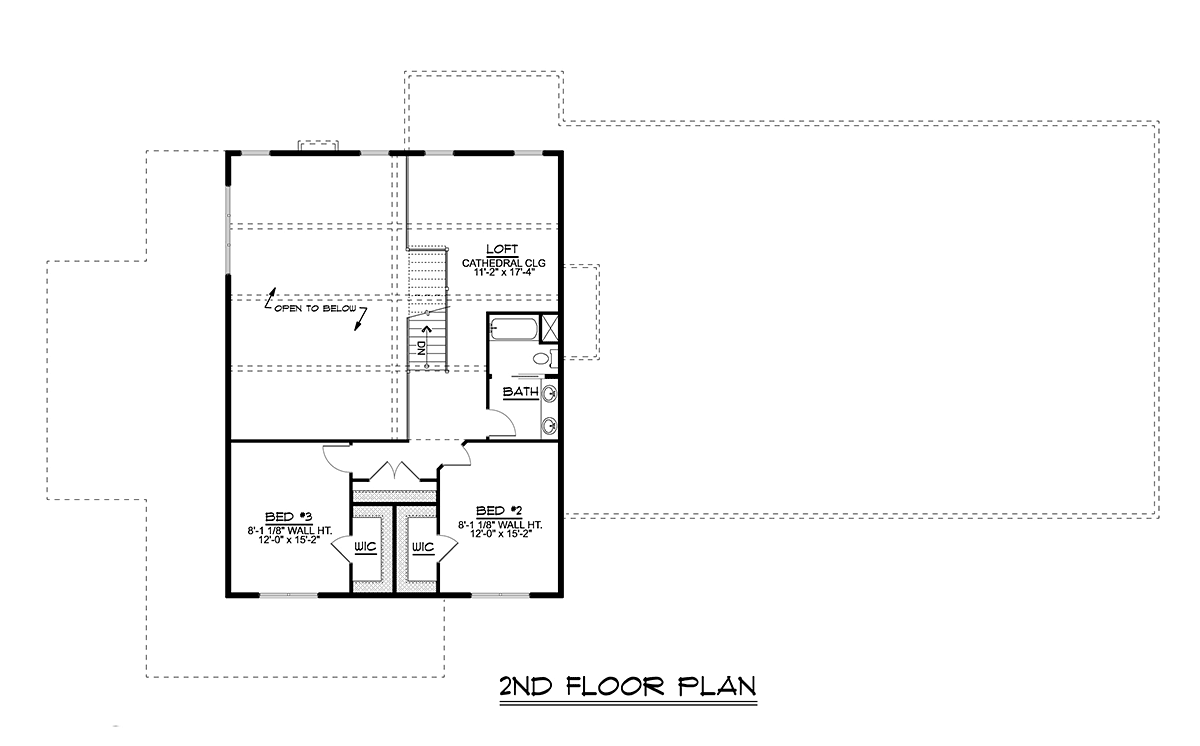

Secondly, buyers love the attached garage space. We’ve already noted the door sizes, but now let’s take a look at the overall size. From right to left, the garage is 60' wide by 40' deep, however, part of this area is taken up by a section of the living space. Included in the garage is a shop area, mechanical room and half bathroom. Thirdly, buyers love the loft. Notice the abundant loft space upstairs. Kids will turn this into a game room.

Great Master Suite and Lots of Storage

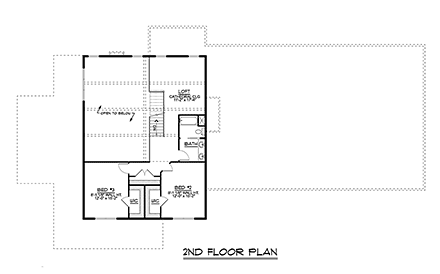

Let’s talk bedrooms next. Bedrooms 2 and 3 in Barndominium Construction Plan 41807 each have a walk in closet. The occupants share a full bathroom, and it’s designed with a pocket door inside. The pocket door separates the toilet and tub from the double sink. On the main level, Mom and Dad have a nice tile shower, soaking tub, double sink, and one enormous walk-in closet. Pass through the closet to access the laundry room. Talk about convenience!

Living room with fireplace, dining area, and kitchen with island make up the open concept floor plan. The oversized kitchen pantry is a walk-in, and it doubles as a safe room. Off the entry, you can access the den, and it would be a great home office. In conclusion, this plan is designed so that you will never run out of space whether inside the house or out in the garage.

Title page

4 elevations, all details, notes, etc...

Floor plans (1st, 2nd, bsmt, etc...)

Roof plan

Wall sections, sometimes building cross sections

Foundation plan & Foundation details

General notes page

Electrical plans for each floor.

Miscellaneous column, bracket, details, stair sections.

What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans, plumbing and hvac (We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!
