Plan Pricing from $2,050.00

Plan Pricing

PDF File: $2,050.00
5 Sets: $2,250.00
5 Sets plus PDF File: $2,350.00
8 Sets: $2,350.00
CAD File: $2,700.00
Single Build License issued on CAD File orders.
Materials List: $500.00
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $75.00

Available Foundation Types:

Basement : $400.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : $400.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2514 sq ft
Main Living Area:	2514 sq ft
Bonus Area:	390 sq ft
Unfinished Basement Area:	2514 sq ft
Garage Area:	506 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $400.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $400.00
Exterior Walls:	2x6
House Width:	69'0
House Depth:	57'6
Number of Stories:	1
Bedrooms:	4
Full Baths:	3
Half Baths:	1
Max Ridge Height:	29'0 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown
Porch:	535 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'0

* May require additional drawing time.

Special Features:

Bonus Room
Front Porch
Jack and Jill Bathroom
Mudroom
Office
Pantry
Rear Porch

Plan Description

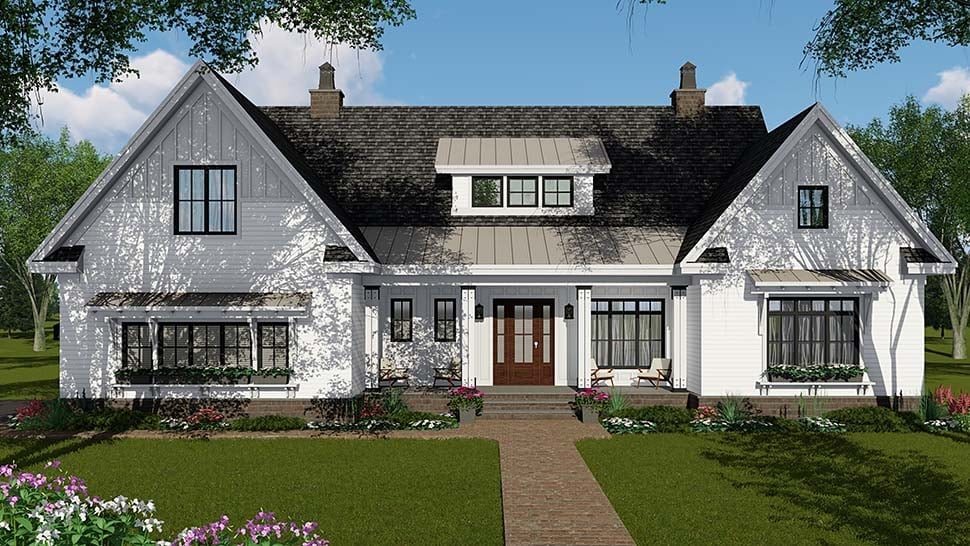

4 Bedroom Ranch Style House Plan

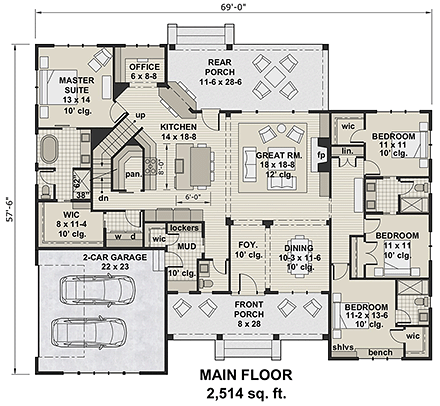

Ranch Style House Plan 42697 has over 2500 square feet of heated living space. This 4 bedroom, 3.5 bath floor plan is an open layout and split bedroom design. Bonus space is available above the garage for future expansion. There is a basement option available (for an additional fee) if you need to increase the square footage.

Ranch Style House Plan With Covered Porches

Two great covered porches will provide ample outdoor space to escape the hot sun. The front porch measures 8' wide by 28' deep. Next, walk around to the covered back porch. Many homeowners will add a swimming pool in the back yard. A unique way to entertain your friends is provided by a pass-through window from the kitchen. From here you can serve food and beverages to your guests after they get out of the pool.

The 2 bay, side-load garage will admit 2 vehicles. The side-entry garage is a highly-requested feature because it does not take away from the curb appeal of the house. A man door from the garage opens to the mud room. The drop zone with lockers and bench seating will store sports equipment and anything else that you don't need to carry through the house.

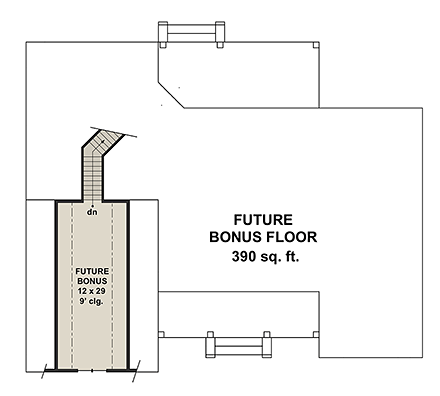

Ranch Style House Plan 42697 has a future room over the garage. Also know as a FROG, this bonus room measures 12' wide by 29' deep. Having a bonus room will increase the value of your home because it offers 390 square feet of additional living space. Use it for storage, or finish the space for a recreation room.

Ranch Style House Plan With Split Bedroom Layout

The master bedroom is located on the left side of the home and includes a full ensuite with private water closet, shower, stand-alone tub, double vanity, and huge walk-in closet. We love the pass-through pocket door between the master walk-in closet and the laundry room. Talk about convenience! On the opposite side of the house are the children's bedrooms. Two bedrooms each have a small walk-in closet and share a Jack and Jill bathroom. The fourth bedroom has a private bathroom, built-in shelves, and a bench seat in the window.

Upon entering from the front door of Ranch Style House Plan 42697, you find open living space. The fireplace offers a cozy place to gather in the great room which is all the more impressive because of its 12 foot ceiling. Traffic flows freely around the kitchen island. Seating is available for 5 at the island, and more formal meals will be held in the dining room by the foyer. Lots of storage is available around the corner in a large walk-in pantry.

When it comes time to get some work done, a pocket office is available in the rear of the house. Just be careful not to day-dream too much when you're looking outside at the back yard!

What's Included?

All blueprints are designed by licensed architects, members of the American Institute of Building Design (AIBD), or members of the Council of Publishing Home Designers (CPHD). All of the plans we feature were designed to meet one of the recognized North American building codes (the Uniform Building Code, the Standard Building Code, the Basic Building Code or the National Building Code of Canada) in effect at the time and place they were drawn.

The blueprints for most home designs include the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual designer:

Exterior elevations show the front, rear and sides of the home, and include notes on exterior materials, details and measurements. Roof details show slope and pitch, as well as the location of dormers, gables and other roof elements, including clerestory windows and skylights. Details may be shown on the exterior elevation sheet or on a separate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to ensure compliance with local codes and regulations.

Foundation plans include drawings for a standard, daylight or partial basement and/or a crawlspace, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, a generic foundation conversion diagram is available.)

Interior elevations show the specific details of cabinets (kitchen, bathroom and utility room), fireplaces, built-in units and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles. THIS IS ONLY AVAILABLE ON SELECT PLANS. PLEASE CONTACT FOR AVAILABILITY

Detailed floor plans show the placement of interior walls and the dimensions of rooms, doors, windows, stairways, etc., on each level of the home.

Cross sections show details of the home as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.

General specifications provide instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Note: Regional variations, local availability of materials, local codes, methods of installation and individual preferences make it impossible to include much detail on heating, plumbing and electrical work on your plans. Your home's ductwork, venting and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor and/or local suppliers.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Hey! What an amazing plan! I wanted to know if the 2514 sq ft included the stairs leading to the unfinished bonus room? Ty

A: Good morning, Thank you! We are pretty proud of that plan. It has become very popular. The stairs leading to the bonus are included in the sq ft. I hope this helps, thank you.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
