House Plan 42698
Modern Farmhouse Plan with Wrap Around Porch, 2nd Floor Loft and Media Area | Plan 42698
sq ft
3952beds
4baths
4bays
3width
77'depth
79'
Plan Pricing
Additional Notes
SITE RESTRICTION: This plan cannot be built within a 100 mile radius of Richmond VAAvailable Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3952 sq ft |
| Main Living Area: | 2422 sq ft |

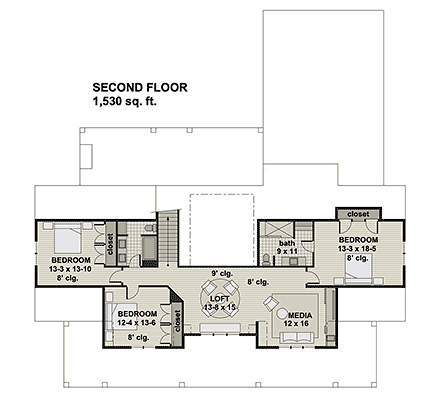

| Upper Living Area: | 1530 sq ft |
| Unfinished Basement Area: | 2422 sq ft |

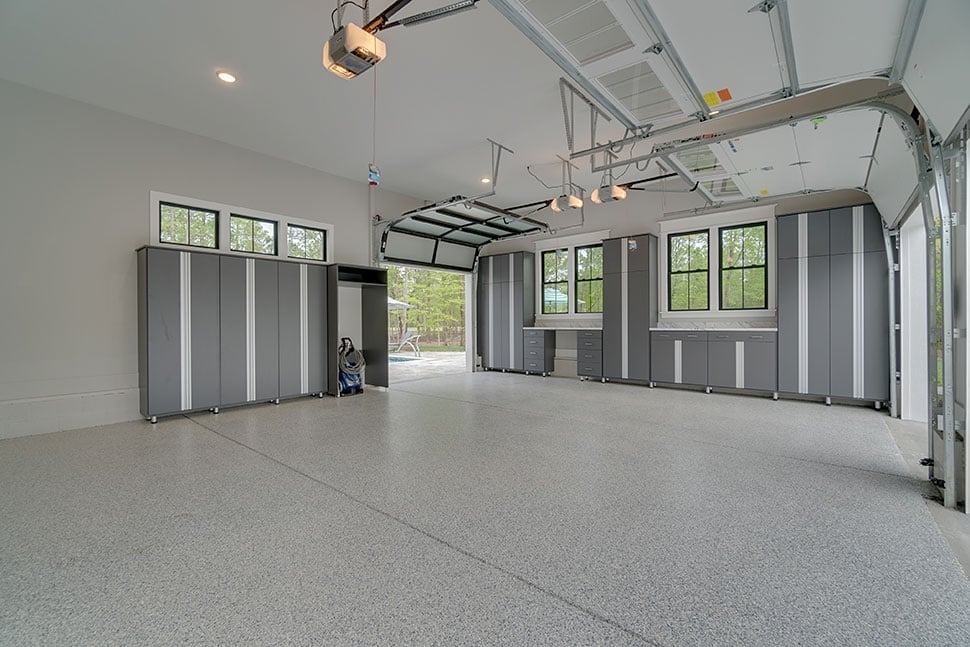

| Garage Area: | 796 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $400.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $400.00 Walkout Basement - * $400.00 Total Living Area may increase with Basement Foundation option. |
| Exterior Walls: | 2x6 |
| House Width: | 76'10 |
| House Depth: | 78'2 |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Max Ridge Height: | 37'0 from Front Door Floor Level |
| Primary Roof Pitch: | 14:12 |
| Roof Framing: | Unknown |
| Porch: | 995 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10' |
Special Features:
Plan Description

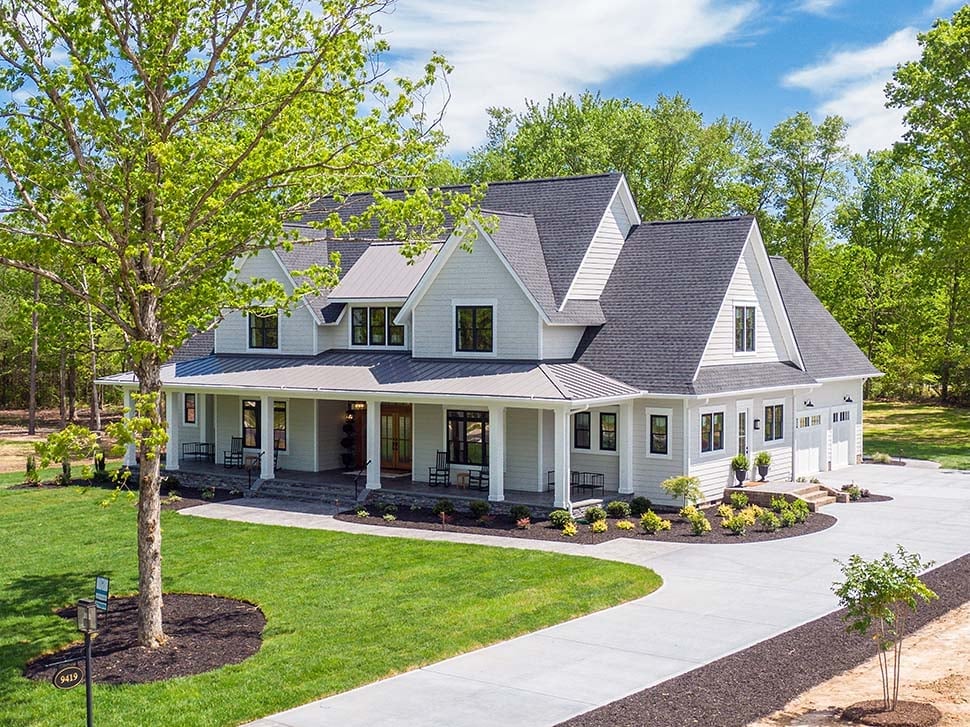

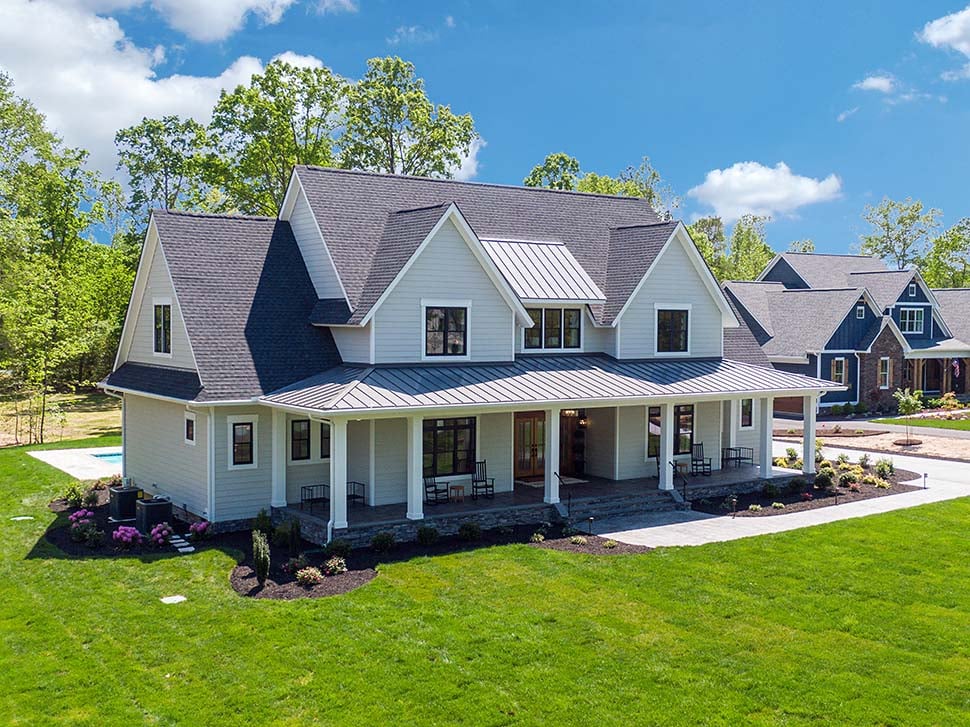

Modern Farmhouse Plan with Wrap Around Porch, 2nd Floor Loft and Media Area

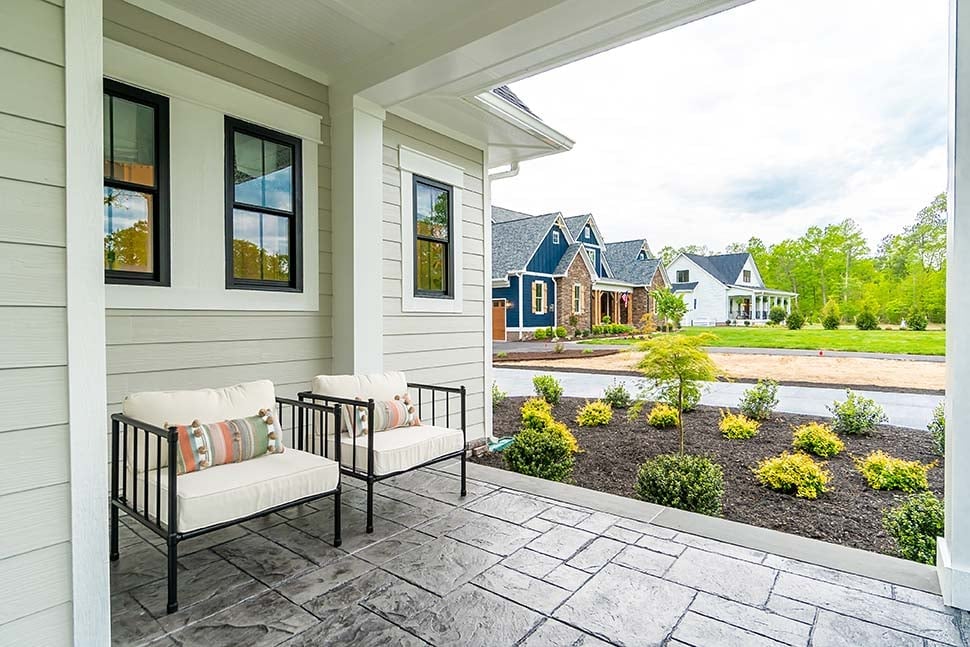

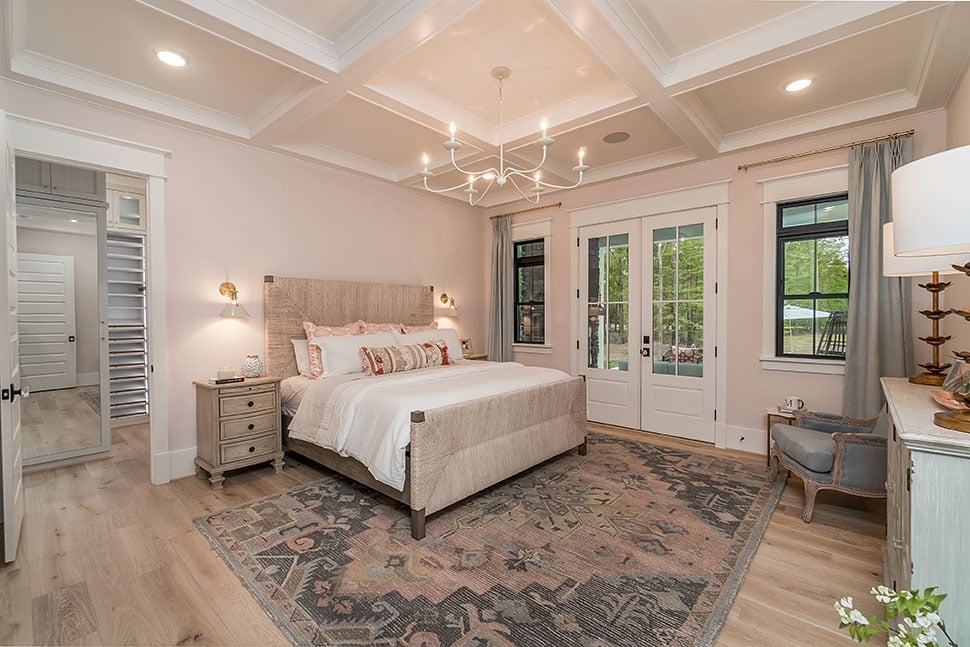

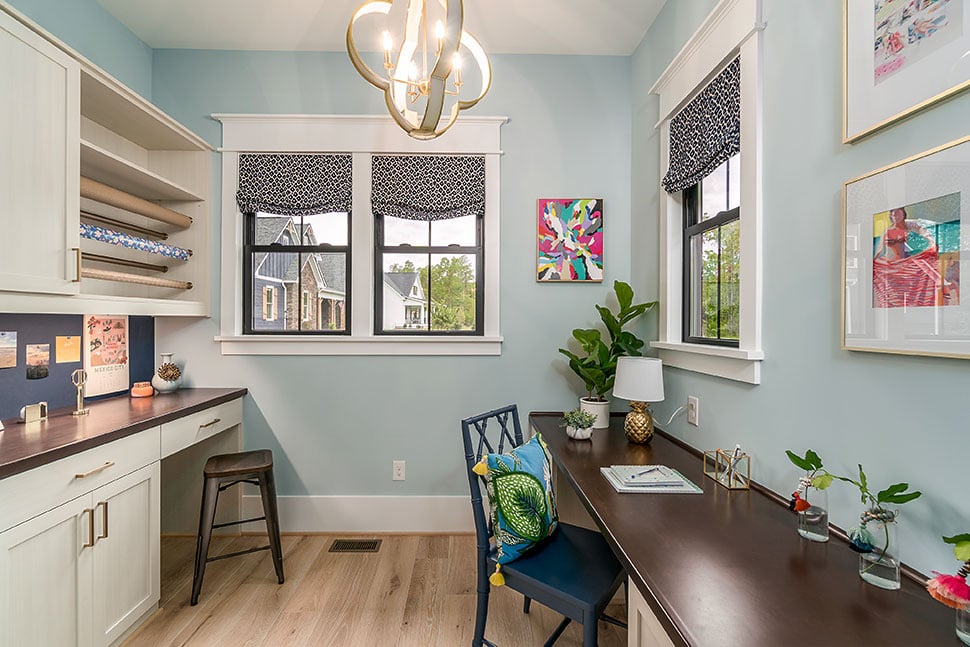

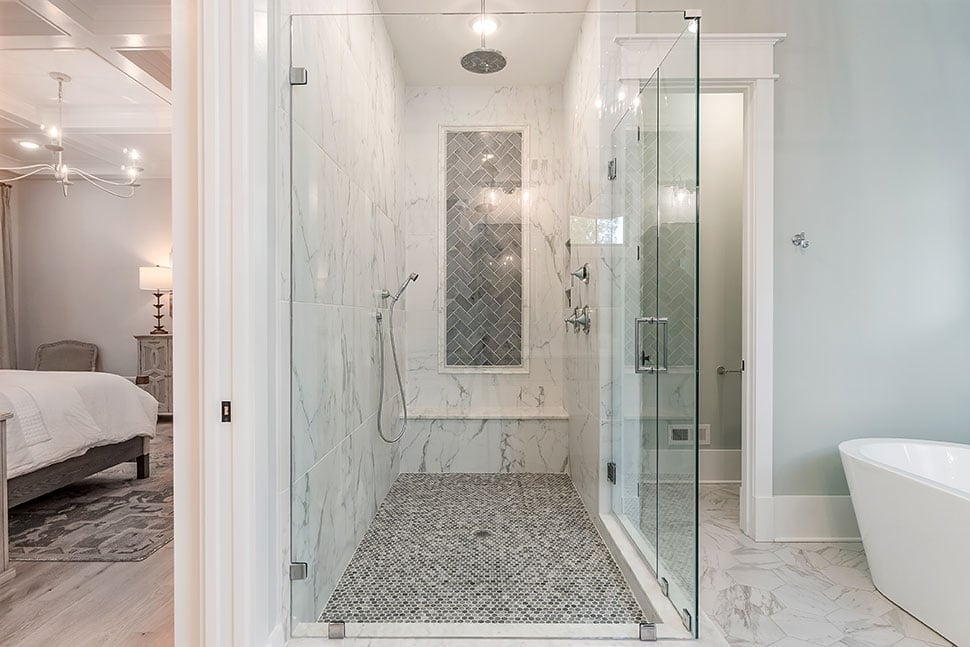

This stunning modern farmhouse home plan is brand new to the website, but it is getting a lot of attention. At almost 4,000 sq feet, this beautiful country home plan offers 4 large bedrooms and 4 full bathrooms. The first floor offers a formal dining room, lounge, master suite, great room, kitchen, office and mudroom. Large front and rear covered porches offer cooling shade and outdoor entertaining space. The second floor has three bedrooms, two full bathrooms, a loft area and media center.Modern Farmhouse Home Plan - Four Bedroom House Plan - Country Living - Country Life - Two Story House Plan - Award Winning House Plan - Beautiful Traditional Country Home - Outdoor Living - Open Floor Plan
What's Included?
The blueprints for most home designs include the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual designer:
Exterior elevations show the front, rear and sides of the home, and include notes on exterior materials, details and measurements. Roof details show slope and pitch, as well as the location of dormers, gables and other roof elements, including clerestory windows and skylights. Details may be shown on the exterior elevation sheet or on a separate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to ensure compliance with local codes and regulations.
Foundation plans include drawings for a standard, daylight or partial basement and/or a crawlspace, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, a generic foundation conversion diagram is available.)
Interior elevations show the specific details of cabinets (kitchen, bathroom and utility room), fireplaces, built-in units and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles. THIS IS ONLY AVAILABLE ON SELECT PLANS. PLEASE CONTACT FOR AVAILABILITY

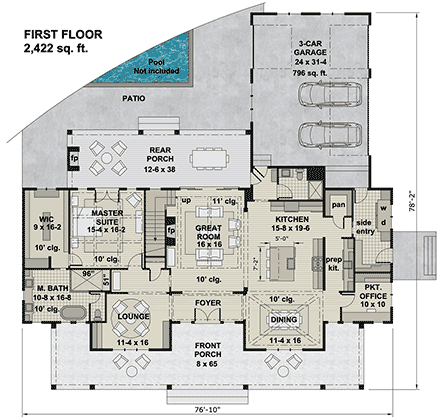

Detailed floor plans show the placement of interior walls and the dimensions of rooms, doors, windows, stairways, etc., on each level of the home.
Cross sections show details of the home as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
General specifications provide instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.
Note: Regional variations, local availability of materials, local codes, methods of installation and individual preferences make it impossible to include much detail on heating, plumbing and electrical work on your plans. Your home's ductwork, venting and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor and/or local suppliers.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, From bottom to top the height is 4' 11 1/2". That does not include the footings. We are in Minnesota, so our plans allow for the frost line. I have attached a screenshot of the building section below for reference. I hope this helps!
View Attached FileA: That plan was designed for a builder that works in and around Richmond. He agreed to let us sell it as long as that restriction was in place.

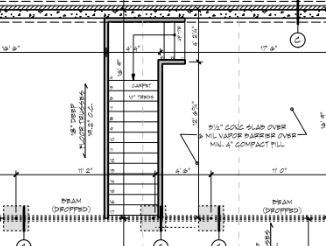

A: Hello, Unfortunately this plan does not come with a finished basement. I have included a screenshot of the stairs below. Thanks and have a great day!
View Attached FileA: Typically you want a 10ft turn radius plus the length of the vehicle. So 30-35ft is recommended for the driveway (from the face of the garage).
A: Yes, it can be built in that zip code. Note: We cannot provide sealed drawings. All of our designs are drawn to meet national building codes in effect at the time the plan was drawn. If your building officials go by other codes, have any unique building codes and/or require the drawings to be sealed by an architect or engineer in order to obtain a building permit, you will need to consult a local design professional for assistance with those matters.
A: Good afternoon, I’m sorry you would not be able to build this from that location as it is only 65 miles from Richmond VA. You might want to look at plan 41917 and 41918 which are similar to the CL-20-020 I hope this helps, have a great evening!
A: The walkout is located in the rear of the home.
A: This plan in stock form does not open up to the great room below. We can modify the plan to do so with a few options. 1) If you want a full 2 story great room you will have to add a dormer on the rear of the house to get a flat 2 story ceiling 2) Open up the loft wall to below with a railing, it will have a sloped ceiling on the rear of the great room.
A: Good morning, Unfortunately we do not have pictures of this plan reversed. These plans will require some engineering. Thank you!
A: Good morning, Our plans are drawn on a cad program called Soft Plan 2020
A: Yes, there should be no issue using our plans to submit for Superior Walls Systems precast walls.
A: Hello, The prep kitchen is 11'3" x 6'3". The pool is not included in the plan. You can add cabinets under the sink, but otherwise the walk in closet is right off the master bath. Hope this helps!
A: The floor and roof systems are both done with trusses.
A: Hello, I am unable to supply all the upper level window sizes. If you have purchased the plan, you will find them all called out on the plan. Sorry I couldn't be more helpful.
A: Hello, As long as you're building 100 miles from Richmond, you should be good to go. No further steps need to be taken. Thank you!
A: The plans are fully dimensioned for the truss manufacturer to layout their design. We call out for a min. L/480 deflection or less along with the height of the truss we have drawn in for flooring and any heel heights for the roofing trusses.
A: 10’ main 9’ upper
A: The basement stairs will be located between the great room and master suite.
A: Hello! The interior door heights are 8 feet. Hope this helps!
A: Hello, That area can't be used because of the ceiling heights in the great room. The only way you could use it (like for a room) is if the boxed ceiling in the great room was eliminated and had a 10' ceiling all across the room. Thanks!
A: They are all gas.
A: No they do not.
A: 8'-10" Thanks
A: We have no additional photos, unfortunately.
A: We do not use AutoCAD we use SoftPlan2020
A: They are not floor joists they are floor trusses 18” deep spaced 19.2” on center We do not stick frame.
A: We have a contract with a builder that works with us. You could build it within 100 miles of Richmond, but you would have to use that specific builder.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
