Multi-Family Plan 43700

• PDF File: $2,380.00
• 1 Set: $955.00 **
• 5 Sets plus PDF File: $1,485.00
• CAD File: $2,580.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $410.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x4: $475.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2872 sq ft
Main Living Area:	1986 sq ft
Upper Living Area:	886 sq ft
Garage Area:	1158 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Crawlspace
Exterior Walls:	2x4 - * $475.00 2x6
House Width:	116'0
House Depth:	38'0
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	21'3 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Truss and/or Stick
1st Floor Master:	Yes
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space

Craftsman Style Duplex House Plan with 2872 Sq Ft, 6 Beds, 4 Baths and a 4 Car Garage

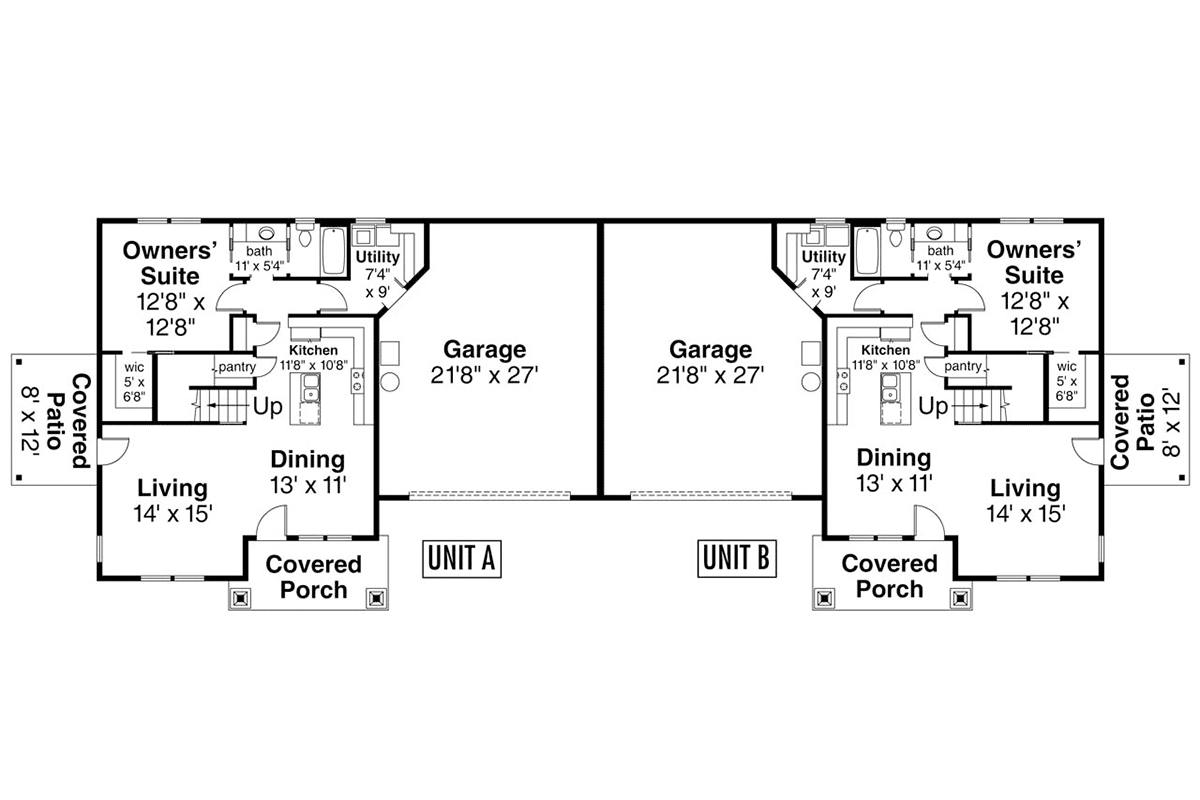

Adorable Duplex separates its two units with two 2-car garages, allowing for plenty of room to breathe. The living spaces are identical mirrors of each other with an open style living room, dining room, and kitchen at the front of each unit. A walk-in pantry is nestled under the staircase for plenty of storage. The owners’ suite is at the back of the main floor with a galley style bathroom and walk-in closet. Across from the owners’ suite is a utility room which leads to the unit’s garage. Up the stairs off the kitchen, you will find two more bedrooms and a full bath. Each unit has a covered porch at the entry and a private covered patio off the living room.

Unit A:
1st Floor: 993 sq ft
2nd Floor: 443 sq ft
Garage: 579 sq ft
Bedrooms: 3
Full Baths: 2
Garage Bays: 2

Unit B:
1st Floor: 993 sq ft
2nd Floor: 443 sq ft
Garage: 579 sq ft
Bedrooms: 3
Full Baths: 2
Garage Bays: 2

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
