House Plan 52020
Traditional Three Bedroom, Two Bathroom House Plan with Over 2000 Square Feet Living Space
sq ft
2026beds
3baths
2bays
2width
74'depth
71'
click for more images
Plan Pricing
Sorry, but this plan cannot be sold in the following zip codes: 30041, 30501, 30504, 30506, 30542, or 30566.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2026 sq ft |
| Main Living Area: | 2026 sq ft |
| Garage Area: | 542 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 73'9 |
| House Depth: | 70'4 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 22'9 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Truss and/or Stick |
| Porch: | 384 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| Main Ceiling Height: | 10' |
Special Features:
Plan Description
Traditional Three Bedroom, Two Bathroom House Plan with Over 2000 Square Feet Living Space
Enter into the foyer of New House Plan 52020 and find a wide-open floor plan. Homebuyers will choose this plan because it offers a split floorplan among 3 bedrooms and 2 bathrooms. Total living area is 2,026 square feet, and that doesn't even include the 542 square foot 2 car, angled garage. Spend time outside on the back screened porch. It offers a stone floor, vaulted ceiling, and outdoor fireplace where you can warm your hands while relaxing on a chilly fall evening.
New House Plan With Angled Garage
New House Plan 52020 displays a floor plan with great angles. Firstly, notice the 2 car angled garage as you arrive. The angled garage gives this home plan a little something extra when it comes to style. Plus, white painted cedar shingle siding is a modern take on craftsman design. The arched double front door and decorated eaves bring in more interest to the handsome front elevation.
Secondly, those angles continue as you enter the home from the garage. The hallway begins with a convenient bench where you can leave boots and sneakers. You know, cut down on the clutter that enters the house. Slide back the barn style door to reveal an office alcove with built-in desk. The angled hallway ahead is a great way to soften the passageway and save space. We love that there are no hard angles.
Master Closet Connected to the Laundry Room
Thirdly, those angles help create usable space in the master closet. Mom and Dad seem to have their own wing of the house. Add a little height with the tray ceiling. It makes this 14' x 16' bedroom look even bigger. Open the double doors to access a master bath. Enjoy a garden tub on one end, lots of space between the double sinks, private toilet room, and separate walk-in shower. All of this just leads up to the best part—the huge walk-in closet is connected to the laundry room.
Trekking across the house, we step into a wonderful open floor plan among the great room, kitchen, foyer, and dining room. The ceiling is what defines the spaces. Add beams to visually outline the borders of each room. Continue into the children's bedroom area, and we find two that are almost equal in size. The kids share the guest bathroom. Lastly, the occupant of bedroom 3 has a back door exit to the patio.
What's Included?
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Sorry no.
A: The closet in garage shows a tankless water heater. HVAC unit can go in garage or attic. There is attic space because of roof pitch but there is not an official bonus area shown on plans.
A: It’s 17-4” wide by 11’-8” deep as shown.
View Attached FileA: The garage is a 22.5 degree angle
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation

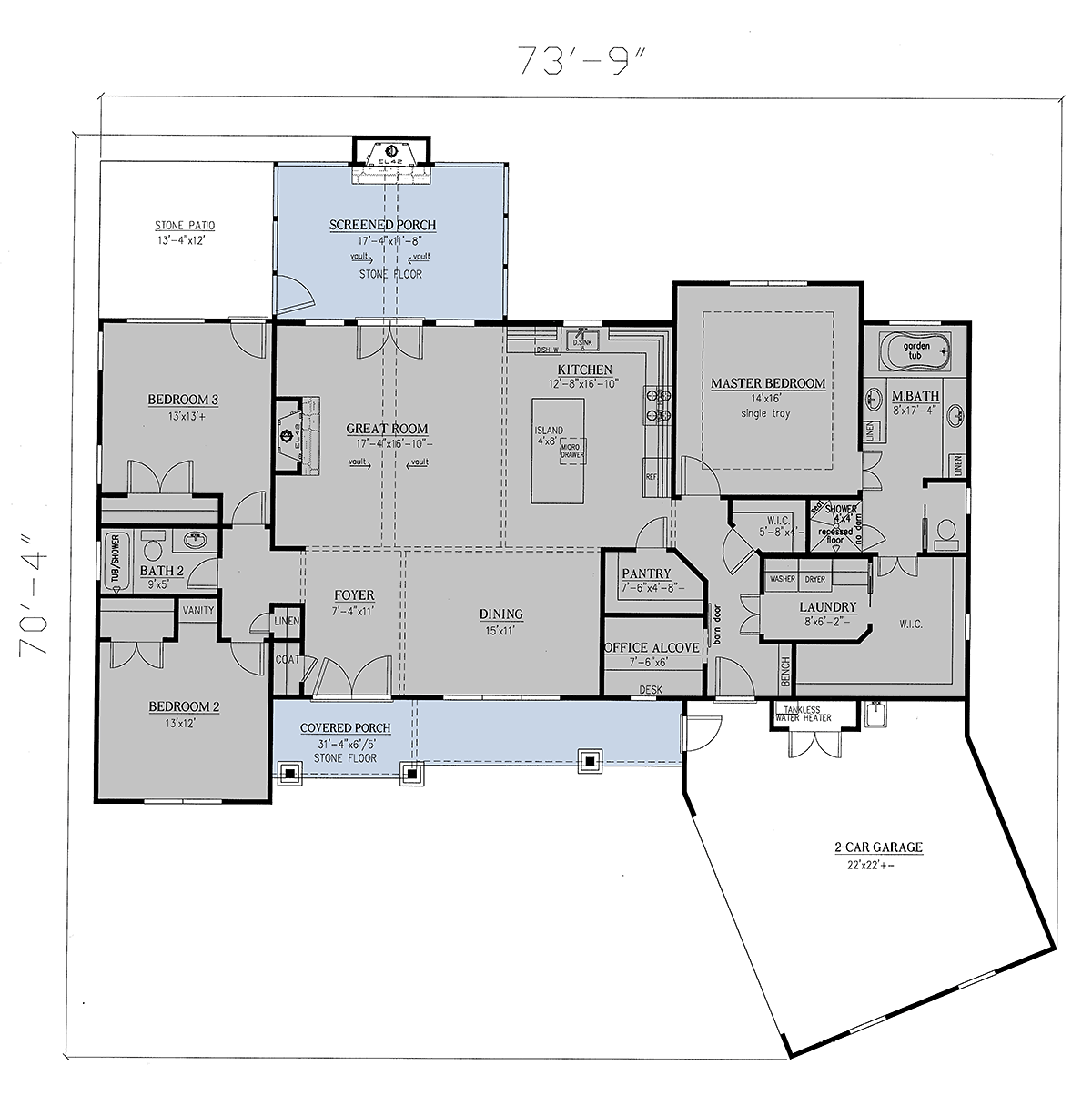

Level One
Quick Specs
2026 Total Living Area2026 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
73'9 W x 70'4 D
Quick Specs
2026 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
73'9 W x 70'4 D
Rear Elevation
