| Specifications and Pricing |

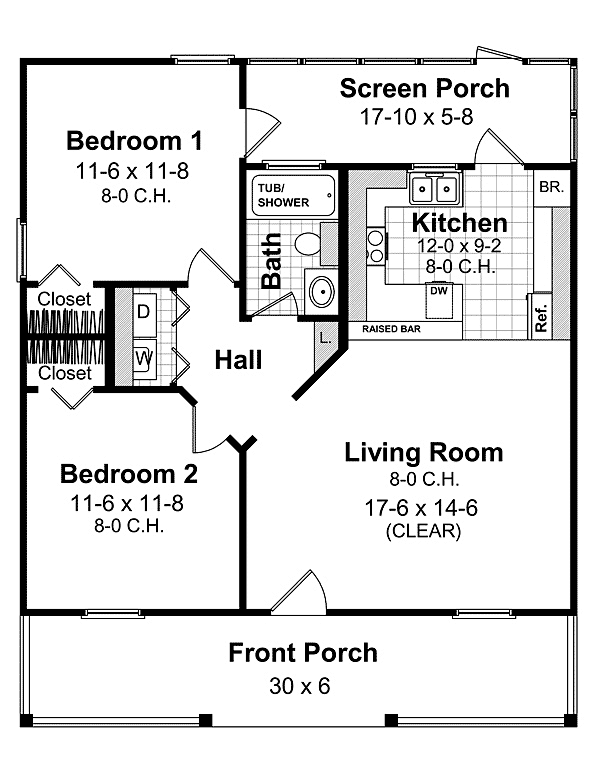

See Elevation and Floor Plan(s)
The design and layout of this home brings back the memories of days gone by and of places we feel comfortable. Enjoying the screened-in back porch in the summer...and spending time with your family ye...
Expand Text |
The design and layout of this home brings back the memories of days gone by and of places we feel comfortable. Enjoying the screened-in back porch in the summer...and spending time with your family year-round, make this a most inviting home.
Collapse Text |
Ask The Designer
Got a question about this plan? Ask The Designer any question you may have. NOTE: If you have a plan modification question, please click on the Modifications Tab above.
Previous Ask The Designer Q & A
|
|
Question: can we change the room size on this plan
Answer: Hello, Yes, if you would like a quote to modify the plans, please reply with a list of the changes. We will provide a quote.
Thanks.
Date Posted: 13-Feb-19
Question: Where would you put a furnace and hot water heater? Can you have a basement and can you have access to attic? Judy
Answer: Hello, The basement version of this plan is 59122. The extra space required to add basement stairs changes the footage to 950 heated. The basement level comes as empty unfinished storage space, but could be modified to be a walkout basement, or whatever you had in mind. If you have a basement foundation type, the heat and ac unit, and water heater can be located there. If you use a tankless water heater, which is most common now, those mount on any exterior wall, or inside on the wall. If there is no basement, the heat and ac unit will be in the attic, and a tankless type water heater will be necessary, unless you choose to put an old timey tank style water heater in the attic too, which is very common.
There is an attic access in the hallway, but it is not shown on the presentation plan you see online.
Thanks!
Date Posted: 04-Dec-18
Question: It looks like there is room for a loft. There is a window in one of the pictures where a second floor would be. It there one?
Answer: No. There is no loft in this house plan.
Thanks,
Amanda
Date Posted: 06-Mar-17
Question: where is the hot water tank
Answer: Hello, We recommend using a tankless water heater, unless you want to put an old timey conventional type in the attic, with a catch basin, and drain line connected to the plumbing. The ac unit is also intended to go in the attic, since there is no good place to put it in a plan this small.
Tankless type water heaters are small and very flexible in their mounting locations. Usually, they are mounted on the exterior wall near the bathrooms, or under a counter, in the attic, under the house if its a crawlspace, etc...
Predrawn house plans do not include plumbing, heat and ac, or any other type of mechanical plans. This is all explained in more detail in the frequently asked questions portion of the website.
Have a great day!
Date Posted: 03-Jan-17
Question: Please can you provide the dimensions
Answer: Hello, This house is 30 feet wide, by 36' deep overall. Each room size is given online, except for these smaller spaces that were really too small to add the text…
Approx. sizes are-
Bath is 5' x 8'
Laundry closet is 3'-3"x5'-4"
closets- 4'x2'-8"
Thanks.
Date Posted: 03-Jun-16
Question: Is any loft area in this plan? If so, where is the acess to the loft? Thanks
Answer: Hello, No there is no loft. There is floored attic storage up there with a scuttle hole or pull down stairs in the living area for access. It could be modified to be a loft with a ladder on the wall for access, and a vaulted ceiling in the living area, but its not that way now.
Date Posted: 20-Jun-13
|
Common Customer Questions:
Q. Can I make modifications to this plan?
A. Yes you can! Please click the "Modifications" tab of the top of this page to get more information.
Q. What is the estimated price to build this plan?
A. The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab at the top of this page. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
|
House Plan 59098
Order Code: 00WEB
Bookmark This Plan
Build your own custom, up to 96 Page Planbook, by filing this plan away in your Bookmark This Plan!
 You can Add Your Own Notes about this plan.
Add to Compare List
Compare up to 5 of your favorite plans at once.
|
Order This Plan
or call 800-482-0464.
Our Low Price Guarantee
Close - Our Low Price Guarantee
If you find this plan featured on a competitor's web site at a lower price (advertised OR special promotion price), we will beat the competitor's price by 5%.
To take advantage of our guarantee, please call us at 800-482-0464 when you are ready to order.
Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
What Do These Plans Include?
Close - What Do These Plans Include?
Cover Sheet, showing architectural rendering of the residence
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
 U.S. customers call 800-482-0464 |
| |
 Canadian customers call 1-800-361-7526 |
This house plan does not seem to have a garage. Please make sure to view our online garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
|
| Specifications |
Pricing Information |
Total Living Area: 800
Main Living Area: 800
Garage Type: None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
House Width: 30'
House Depth: 36'
Number of Stories: 1
Bedrooms: 2
Full Baths: 1
Max Ridge Height: 21'6 from Front Door Floor Level
Primary Roof Pitch: 12:12
Roof Load: 30 psf
Roof Framing: Stick
Porch: 280 sq ft
1st Floor Master: Yes
Main Ceiling Height: 8'
Available Foundation Types:
Slab
Available Exterior Wall Types:
2x4
|
1 Set of Same Plan: $750.00 **
5 Sets of Same Plan: $810.00
Reproducible Set of Same Plan: $965.00
PDF File of Same Plan: $885.00
CAD File of Same Plan: $1,455.00
Materials List: $115.00
Right Reading (True) Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $60.00
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Order This Plan
or call 800-482-0464.
