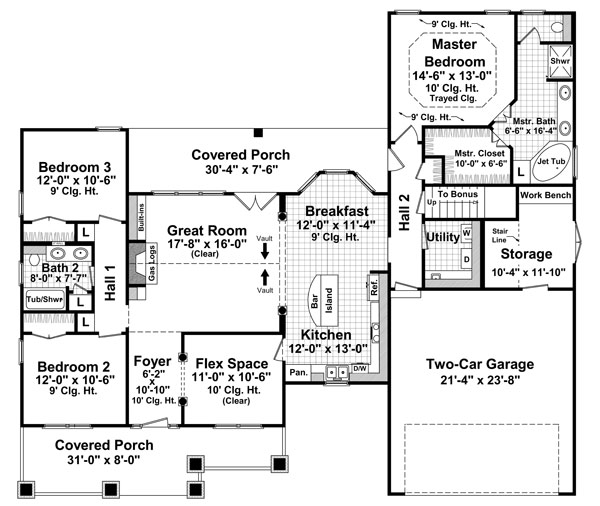

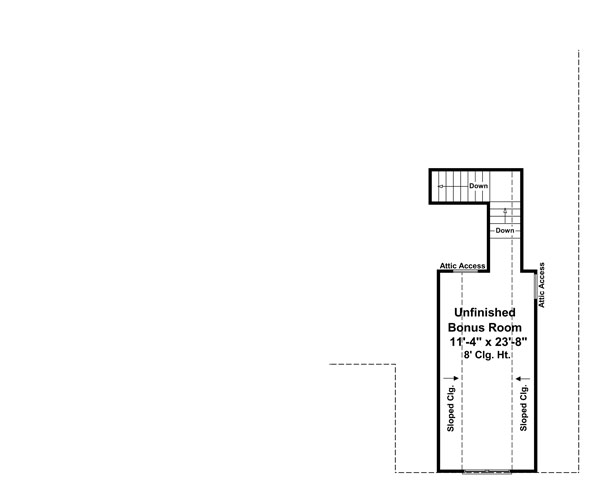

This inviting home has craftsman styling with upscale features. The front and rear covered porches add usable outdoor living space. Great room is vaulted with built in cabinets and gas fireplace. The spacious kitchen has an island with an eating bar. The hall bath is equipped with dual lavatories for convenience. The master bedroom has a raised ceiling and opens into the well equipped bath with dual lavatories, corner tub and walk in closet. There is a shop area off the garage for projects and storage. Future space upstairs could be a playroom, extra bedroom, or just extra storage. The flex space could be used as a home office, dining room, or playroom. This is a very flexible home with lots of options to choose from.
1800 Total Living Area 1800 Main Level 326 Bonus Area 3 Bedrooms 2 Full Baths 2 Car Garage 65' W x 56'8 D
1 Set: $1,175.00 5 Sets: $1,325.00 5 Sets plus PDF Print Set: $1,500.00 PDF File: $1,425.00 CAD File: $1,850.00
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Want to make changes?
Our modification team is ready to help you adjust this plan to fit your needs. Receive a FREE modification estimate by completing this form.
Cost To Build
No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $19.95 will be deducted from your order! *
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $19.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q:The property we are looking at will have a well and septic tank and field. Does the plan specify where these utilities enter or exit the house? We are also looking at radiant in floor heating in the slab and unfinished bonus room using a high quality gas water heater as the heating source instead of boilers or a furnace with forced air. Where would the water heater and HVAC normally be located?
A:Hello, Predrawn plans do not include mechanical plans, which are site specific content. Mechanical plans must be designed by a local person who is familiar with the exact layout, slope, and solar orientation of your exact lot.
So the plans do not indicate any particular utility locations since they are intended to adaptable to any site.
Water heater location depends on whether you choose a tankless or the type with a tank. Tankless water heaters mount anywhere on the exterior walls, or interior walls. Tank style water heater could be located in the garage storage room, or under the stairs, accessed from the storage room, or in the attic space with a drain pan under it.
The hvac system is most often located in the attic if you choose a slab foundation type. If you get the crawlspace option, it may be possible to run the ducts under the house. If you prefer to have the hvac unit inside a closet on the first floor, the coat closet in the entry hall could be slightly enlarged into the closet about 4" more to fit the hvac unit. The laundry room could be extended to the right by 4 feet, under the stairs, and the washer and dryer shifted too. This would create extra space which could be used to add a 3x3 hvac closet in the front left corner of the laundry room, with a return air vent in the entry hall. Ducts would go out the top into the attic and to each room.
If you intend to finish the bonus room, you can use a mini split type system, which is a wall mounted one or two room system, or use a second smaller central hvac unit located in the attic to the rear of the stairs, or on the left or right side of the bonus room in the lower attic areas.
Hope this helps!
Date Posted: 21-Aug-20
Q:Wondering if ur able to change the width and length some to decrease the total living area of the house but keep the same layout? It’s just a little to big but love the plan
A:See plan 55600 for a 1619 s.f. version of this same plan. We also have a basement version, which is 55603.
Perhaps one of these will suit your needs. These can also be modified if you need changes.
Date Posted: 23-Oct-18
Q:What is the depth on the end of the house that holds bedroom 2 and 3? Please include the depth of the front porch in your measurements. Thank you so much!
A:Hello, The depth is 43 feet from the front edge of the front porch to the back wall of bedroom 3.
Date Posted: 08-Apr-14
Q:What is the total square footage for this house (Considering main living area, bonus area, garage, and porches)?
A:Hello, The footages from outside of stud to outside of stud, not including masonry are:
1800 first floor heated, 309 s.f. bonus room (could be heated or unheated, your choice) 1109 s.f. porches, garage, storage for a total under roof footage of 3218
Date Posted: 25-Feb-13
Q:Hello, I would like a full basement. Can this house be built with one? The property slopes down very steeply. Dina
A:See plan 59201 for the basement version of this plan. It is the same price too. Its just got two sets of stairs. The basement comes as unfinished and you just tell the contractor wherever you want any exterior doors and windows in the basement. Hope this helps you. Have a great day and God bless!
Date Posted: 08-Sep-10
Q:I was hoping to get the window sizes for the front windows please.
A:Good afternoon, The tall windows are 32” wide and 72” tall with 12” transoms above the one in the flex space and the one in bed 2. The kitchen window is 32” wide and 36” tall. Hope this helps you. God bless!
Date Posted: 08-Feb-10
Q:why do all your designs like this not include basements?
A:Good morning, We do have basement versions for them. They are usually 16 to 20 feet larger, due to the way we have to add the basement stairs. To see the basement version of this plan, see 59201 and if there are other ones you cannot find, please ask, and I will direct you to it. Have a great day and God bless!
Stephen Mathis, CPBD
Date Posted: 01-Sep-09
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
