Multi-Family Plan 59926

• PDF File: $1,465.00
• 1 Set: $1,215.00 **
• 5 Sets: $1,365.00
• 5 Sets plus PDF File: $1,540.00
• Reproducible Set: $1,700.00
• CAD File: $1,990.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2340 sq ft
Main Living Area:	1170 sq ft
Garage Type:	None
Foundation Types:	Crawlspace Slab
Exterior Walls:	2x4
House Width:	66'
House Depth:	48'
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	19'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	48 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	9'

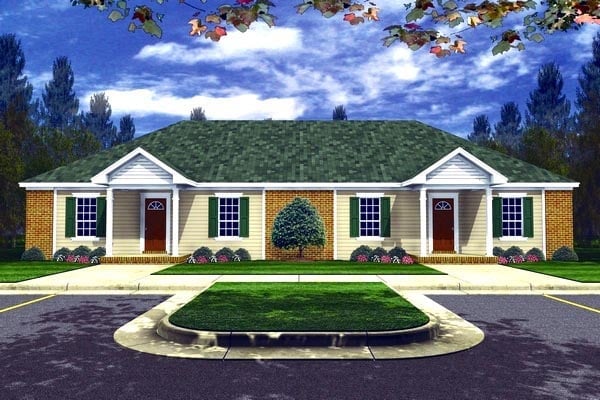

Beautiful traditional 3 Bedroom duplex featuring open living area and spacious bedrooms. Large pantry/storage, patio, large kitchen, and easy-to-build. A great value for owners and builders alike!

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!
