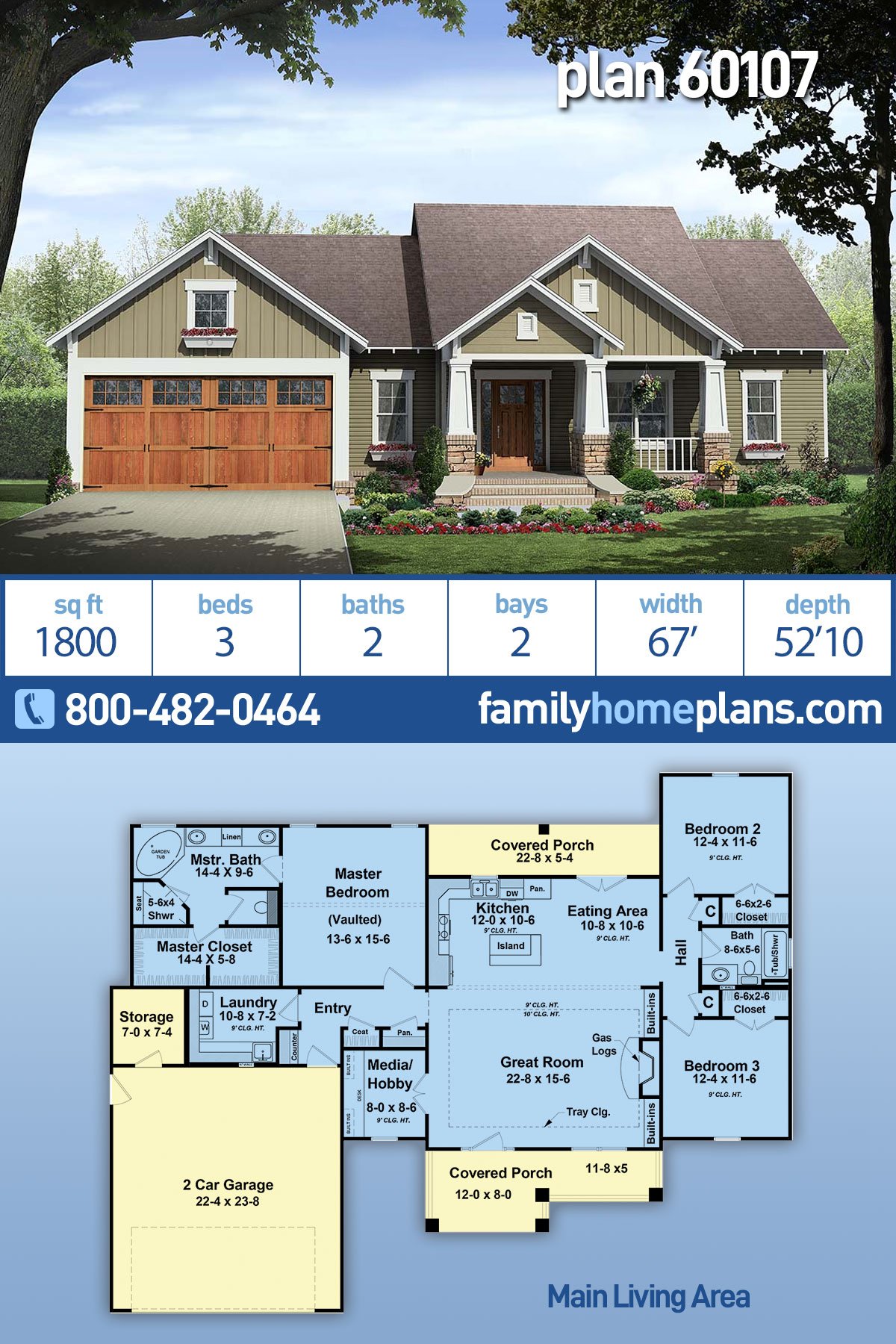

House Plan 60107
Craftsman Style House Plan with Split Bedroom Design
sq ft
1800beds
3baths
2bays
2width
67'depth
53'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1800 sq ft |
| Main Living Area: | 1800 sq ft |
| Garage Area: | 607 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace Slab |
| Exterior Walls: | 2x4 |
| House Width: | 67'0 |
| House Depth: | 52'10 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Stick |
| Porch: | 286 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
Plan Description
Craftsman Style House Plan with Split Bedroom Design
This inviting craftsman home includes all the features that you and your family have always dreamed of having. The well-appointed floor plan design makes use of every available space while providing many extras that you would expect to find in a much larger home. Walk into this elegant great room that features trayed ceilings as well as built in cabinets and a gas log fireplace. An eating area is provided within close proximity to the well-equipped kitchen and features beautiful views. The kitchen also includes an eating bar and island that provides plenty of cabinet and counter space. The master suite features vaulted ceilings as well as a large walk-in closet, tub and separate shower, dual lavatories, and enclosed toilet area. The other two bedrooms are well-sized with closets, and share a compartmented bath. The over-sized garage is large enough for today's vehicles and also includes a separate storage area. This design truly features everything that makes a house a home.What's Included?
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: Hello, The roof slope is 8/12. Thanks!
A: Hello, The floor plan and basement level layout is attached. The basement comes as a non walkout type, with one egress window on the rear with optional window well. There are no living spaces in the basement. It comes as empty, unfinished storage space. You can add rooms and extra windows and doors onsite, or the plans can be modified for an extra cost. Thanks!
View Attached FileA: See plan 59980. It is the same plan, and is available with a basement. The exterior is a different color in the rendering, but its the same. The basement is the same size and shape as the heated/cooled areas on the main floor. Basement comes as empty, unfinished space with one row of support posts in the middle, and one egress window with optional window well on the rear, under the master suite. Basement comes with approx. 9' ceiling height. Thanks.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.
Elevation

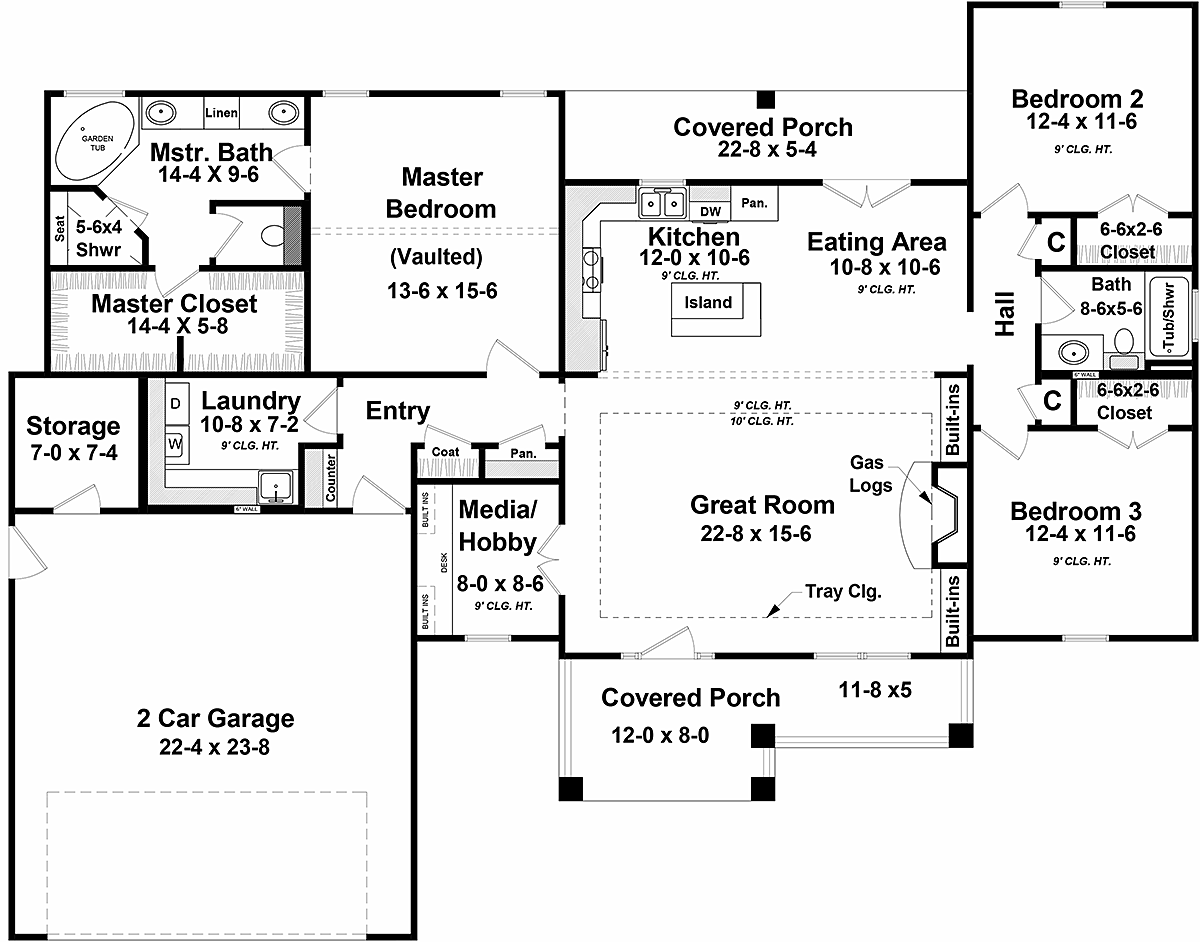

Level One
Quick Specs
1800 Total Living Area1800 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
67'0 W x 52'10 D
Quick Specs
1800 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
67'0 W x 52'10 D
Pricing
PDF File: $1,425.001 Set: $1,175.00
5 Sets: $1,325.00
5 Sets plus PDF File: $1,500.00
CAD File: $1,850.00
more info
Rear Elevation
Photographs may show modified designs.
