Plan Pricing from $3,150.00

Plan Pricing

PDF Study Set: $1,000.00
Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
PDF File: $3,150.00
CAD File: $6,300.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Additional Notes

CAD Files available for $2630.00...Please call to order

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	6462 sq ft
Main Living Area:	3874 sq ft

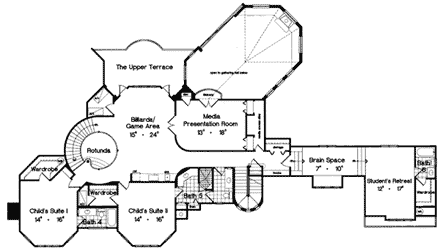

Upper Living Area:	2588 sq ft
Garage Area:	1000 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	137'8
House Depth:	91'7
Number of Stories:	2
Bedrooms:	5
Full Baths:	8
Max Ridge Height:	44'6 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Truss
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes

Plan Description

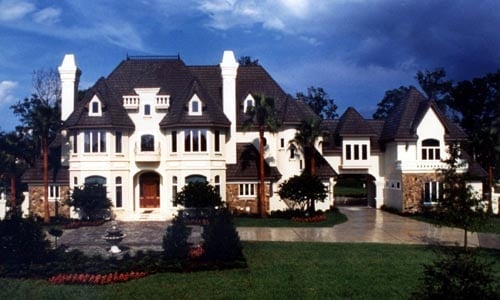

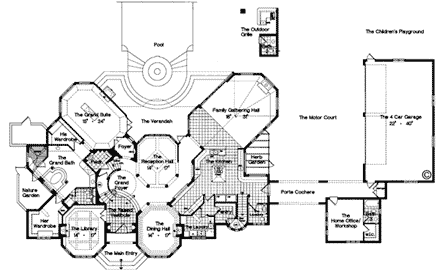

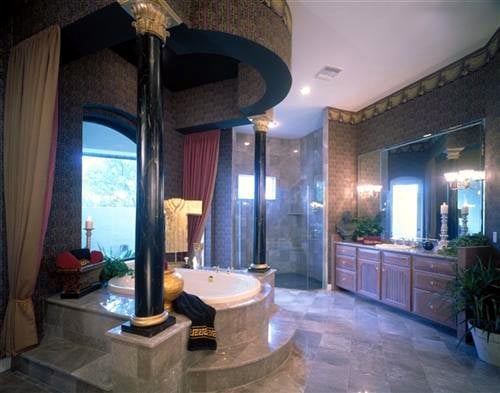

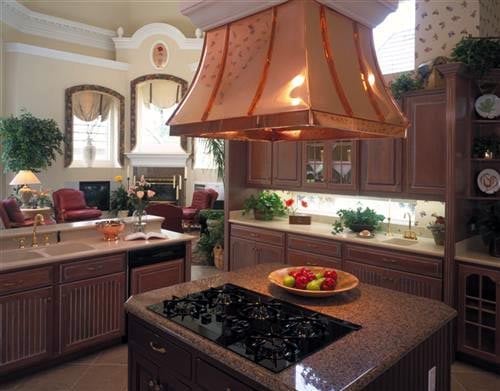

Imagine driving up to the gates which welcome you to this magnificent home! Reminiscent of classic French Chateau architecture, everything about this house exclaims opulence and understated elegance. The raised main entry brings you to a solid oversized main door with sidelights framed by niches. The marble floored vestibule offers grand vistas throughout this home. To the left is a the beamed ceiling library with fireplace and built in book cases. The grand staircase ascends to the second floor while a few steps lead to the formal reception and dinging halls framed by 12’ high columns and coffered ceilings. While the reception hall affords limitless views of the gardens beyond, the dining hall exudes warmth with lighted floating ceiling, and fireplace. Note the sunken powder room just off the grand foyer, replete with barreled ceiling and many niches. The master suite is entered through its own foyer, and enjoys lavish spaces and views, as does the grand bath. Every amenity is enjoyed especially the mini laundry area in the toilet chamber. The informal area of this estate is truly impressive with the kitchen serving as the heart of the home. It accesses the formal dining hall through a dual use butler’s pantry which has a motorized screen which when opened becomes a bar pass thru to the formal reception hall. A secondary staircase just off the pantry and laundry room leads to the second floor with lavishly appointed bedrooms, home theater and connecting tunnel which leads to an additional bedroom suite over the garage wing. Below this suite is an additional suite with private entry, perfect for visitors. A four car motor court provides security and privacy, and offers children a safe area for play.

What's Included?

A. Cover sheet with front renderings and general notes.

B. Foundation plan (Slab standard) 1/4"=1'0", Other foundations may be available as an option. Call for availability and/or modification quotation.

C. Floor plans for each floor including all dimensions, 1/4" = 1'0".

D. All 4 Elevations, front (1/4" = 1'0"), rear and sides (1/8" or 1/4" = 1'0").

E. Building Section.

F. Detail Sheets.

G. Roof Plan (does not include truss layout and profiles which are determined in area of construction.)

H. Electrical plans of each floor. (Outlet, switch and fixture layout only)

Note: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include much detail on heating, plumbing, and electrical work on your plans. The ductwork, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) you use. The details and specifications are easily obtained from your builder, contractor, and/or local suppliers

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
