House Plan 63120

• PDF Study Set: $600.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $1,050.00
• 5 Sets: $1,250.00
• 5 Sets plus PDF File: $1,400.00
• CAD File: $2,100.00
  Single Build License issued on CAD File orders.
• Additional Sets: $50.00

Additional Notes

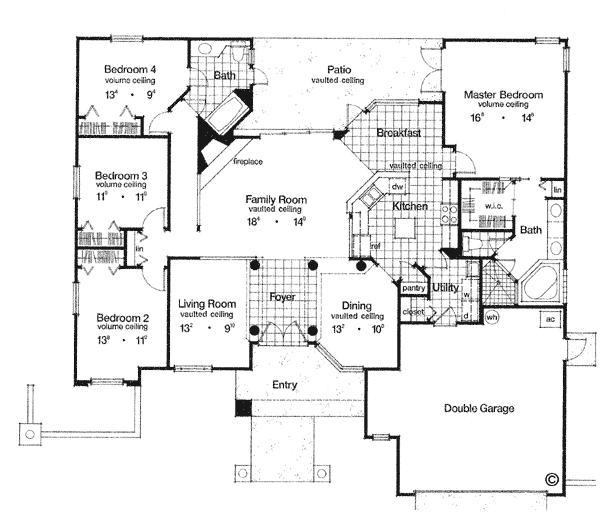

Garage:
20'8 X 20'8
Including indents the dimensions are:
24'8 X 22'8
Bedroom 4: 13' 4" X 9' 4
Living Room: 9' 10" X 13' 2
Dining Room: 10' 0" X 13' 2
Family Room: 18' 4" X 14' 6
Master Bedrm: 14' 8" X 16' 8
Master Bath: 12' 6" X 14' 8
Kitchen: 13' 0" X 10' 0
Nook: 12' 6" X 9' 0
Bedroom 2: 11' 0" X 13' 8
Bedroom 3: 11' 0" X 11' 0

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2060 sq ft
Main Living Area:	2060 sq ft
Garage Area:	478 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	60'4
House Depth:	56'
Number of Stories:	1
Bedrooms:	4
Full Baths:	2
Max Ridge Height:	24' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	125 sq ft
Deck:	238 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'

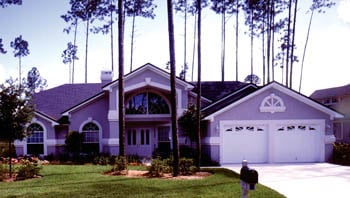

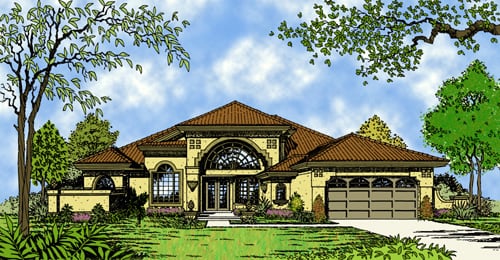

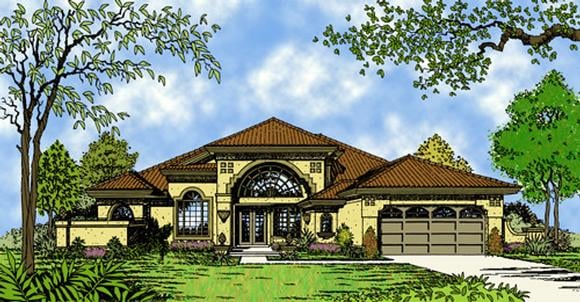

The excitement begins the moment you see the elevation of this home. The grand palladian window showers lighted brilliance both inside and out. Gracious columns adorn the foyer, which separates, in traditional fashion, the living and dining rooms. Once past the foyer, you are in the great room, the center of large family gatherings around the corner, gas fireplace. The three secondary bedrooms share a uniquely designed pool bath. Bedroom #2 can easily become a den/library. An extraordinary design feature of this plan is the location of the master wing, which is conveniently located off the kitchen/breakfast nook. It's location offers both more space and convenience. With the corner soaking tub, oversided shower, private toilet chamber and walk-in closet, the bath is truly well appointed. Also well appointed, is the large island kitchen with a walk-in pantry and access to the big laundry room, complete with strage closet.

A. Cover sheet with front renderings and general notes.

B. Foundation plan (Slab standard) 1/4"=1'0", Other foundations may be available as an option. Call for availability and/or modification quotation.

C. Floor plans for each floor including all dimensions, 1/4" = 1'0".

D. All 4 Elevations, front (1/4" = 1'0"), rear and sides (1/8" or 1/4" = 1'0").

E. Building Section.

F. Detail Sheets.

G. Roof Plan (does not include truss layout and profiles which are determined in area of construction.)

H. Electrical plans of each floor. (Outlet, switch and fixture layout only)

Note: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include much detail on heating, plumbing, and electrical work on your plans. The ductwork, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) you use. The details and specifications are easily obtained from your builder, contractor, and/or local suppliers
