Specifications and Pricing

Cottage Craftsman Tuscan House Plan 65866 Elevation
See Elevation and Floor Plan(s)


Ask The Designer

Got a question about this plan? Ask The Designer any question you may have. NOTE: If you have a plan modification question, please click on the Modifications Tab above.

Previous Ask The Designer Q & A
Question: looking at this plan and wondering if taking the second bedroom out and used to increase size of master bedroom, bath and closet could be done? also what is size of ceiling heights in all rooms?
Answer: That could certainly be done. Ceiling heights: 12’ – Family, Dining, Foyer, Kitchen, BR2 10’ - BR3, Utility, PDR, Master Bath and WIC. 12’ vaulted to 14’-6” – Master Ste
Date Posted: 11-Oct-17

Question: Does the 3 car garage option have a 2nd floor loft? Is the exterior calling for stone or just stone veneer?
Answer: There is no loft included in our plan, but there is room to have a space about 12’ wide x the length of the garage. We indicate stone “veneer” over a 2x4 stud wall with a 1” air space between, but it is designed as a 4” thk veneer (self supporting – not sutructural) that needs metal ties to the stud wall for stability.
Date Posted: 19-Apr-17

Question: What would be the minimum acreage requirements be for this home/2 car garage based on a slab foundation?
Answer: I don’t have any info on acreage/area requirements. I can tell you the total width of the house is 98’-6” wide and the slab area is 3225 SF.
Date Posted: 28-Nov-16

Question: With only the first floor. How high are the ceilings? Are the upper level windows only decoration or will bring light to the 1st level?
Answer: 10’-12’ on the first floor. Dormers are into attic/bonus areas only.
Date Posted: 01-Jun-15

Question: Can you verify width/depth of this plan?
Answer: Width including garage = 92’-0”
Width without garage = 47’-11”


Depth = 58’-7 1/2”

Date Posted: 31-Jul-14

Question: is it possible for this plan to have a walk out?
Answer: We have a walkout designed for the rear of the basement, but no interior walls are shown, just doors and windows which match the main level.
Date Posted: 08-Jul-14

Question: In the bonus room on the left, what is the kneewall height and regular ceiling height?
Answer: The knee wall in front is 3’-6” tall slopes up to as much as a 12’ clg.
Date Posted: 21-May-14

Question: I love this house plan. Do you have actual photos of this house built? Thank you so much. Nikki Whitehead
Answer: Unfortunately, not yet.
Date Posted: 13-May-14

Question: what is the color scheme of this house ? and what type siding and trim are used?
Answer: The colors are merely generated by a color palette in our rendering software. The materials I would recommend are Hardi-shake and Hardi-trim.
Date Posted: 28-Apr-14

Question: Thank for your answer. One other thing I asked was - what is the width of the stairs to the bonus and to the basement?

We are trying to get a feel for the inside since there is no picture available. Is it possible to put railings on both sides of the stairs to the basement? and railings on one side of the stairs to the bonus?

Thank you.

Answer: It is possible, sure. You just need to use beams to carry the ceiling and floor loads. The stair width inside is 3’-0” clear.
Date Posted: 01-Aug-13

Question: Hello,

Thank you for your response. Part of my inquiring is still hanging . . . "I'm trying to figure out how the stairs operate to the basement and up to the bonus area. In other words, are the stairs open with railings and what's the width?" Can you also let me know if it is possible to modify the garage in order to add a bedroom and bathroom above the parking space.

Thank you,
Tamara

Answer: The stairs are enclosed going down to the basement and are partially open(at the first floor) going up.

There is a space about 12x22 over the garage, as is. Would obviously need to increase the garage for a stair width of about 3’-6”.

Date Posted: 01-Aug-13

Question: Hello, Are there any interior photos for this plan? I'm trying to figure out how the stairs operate to the basement and up to the bonus area. In other words, are the stairs open with railings and what's the width? Also, are the walls full or half walls in the bonus area? Thank you!
Answer: There aren’t any pictures unfortunately. The walls in the Bonus areas typically start at about 5’ high and slope up to the ceiling.
Date Posted: 29-Jul-13

Question: Does the garage have a room over top of it , or is there enough room for one?
Answer: There is room for a 12’x24’ room with 5’ tall side walls along the 24’ length and sloping up to a full height ceiling at a 12:12 slope. Space for a stair would need to be allocated and the Garage would need to be stretched about 4’ to accommodate this.. Most builders can achieve this simple change in the field.
Date Posted: 20-Apr-12

Question: do you have any pictures of the inside of this house
Answer: Presently, no.
Date Posted: 21-Dec-11

Question: Do all the rooms on the 1st floor have 12' high ceilings?
Answer: 12' everywhere except... Middle Bedroom, Utility, Powder, Mstr Bath, WIC = 10' clgs.. and Dress, Bath 2, Garage = 9' clgs
Date Posted: 18-Jul-11


Common Customer Questions:

Q. Can I make modifications to this plan?
A. Yes you can! Please click the "Modifications" tab of the top of this page to get more information.


Q. What is the estimated price to build this plan?
A. The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab at the top of this page. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.


House Plan 65866

Order Code: 00WEB

Bookmark This Plan

Build your own custom, up to 96 Page Planbook, by filing this plan away in your Bookmark This Plan!


Add to Plan Comparison List

Compare up to 5 of your favorite plans at once.



Our Low Price Guarantee

What Do These Plans Include?

U.S. customers U.S. customers call 1-800-482-0464

Canadian Customers Canadian customers call 1-800-361-7526

PDF Brouchure Click Here to download a free PDF Brouchure of Plan Number 65866.

Specifications Pricing Information
  • Total Living Area: 1698
  • Main Living Area: 1698
  • Bonus Area: 1153
  • Unfinished Basement Area: 1698
  • Garage Area: 600
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 92'
  • House Depth: 58'2
  • Number of Stories: 1.5
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 31'5 from Front Door Floor Level
  • Primary Roof Pitch: 12:12
  • Roof Load: 20 psf
  • Roof Framing: Stick
  • Porch: 767 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 12'
  • Upper Ceiling Height: 9'

    Available Foundation Types:
  • Basement - * $300.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace - * $200.00
  • Slab
  • Walkout Basement - * $300.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.

    Available Exterior Wall Types:
  • 2x4
  • 2x6 - $150.00 (Please call for drawing time.)

    * May require additional drawing time.
  • PDF Study Set: $795.00
    Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.

  • 1 Set of Same Plan: $795.00 **
  • 5 Sets of Same Plan: $995.00
  • 8 Sets of Same Plan: $1,145.00
  • Reproducible Set of Same Plan: $1,245.00
  • PDF File of Same Plan: $1,245.00
  • CAD File of Same Plan: $1,995.00

  • Right Reading (True) Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00

    ** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

    3-car version available for $150


    or call 1-800-482-0464.

    Associated Styles:
    Cottage House Plans
    Craftsman House Plans
    Tuscan House Plans


  • or call 1-800-482-0464.
    Printer-Friendly Page













    Plan Images

    Cottage Craftsman Tuscan House Plan 65866 Elevation Loading image. Please wait

    Cottage Craftsman Tuscan House Plan 65866 Lower Level
    Click Here to Mirror Reverse Image Lower Level



    Printer-Friendly Page
    Add this plan to your My Plans collection.

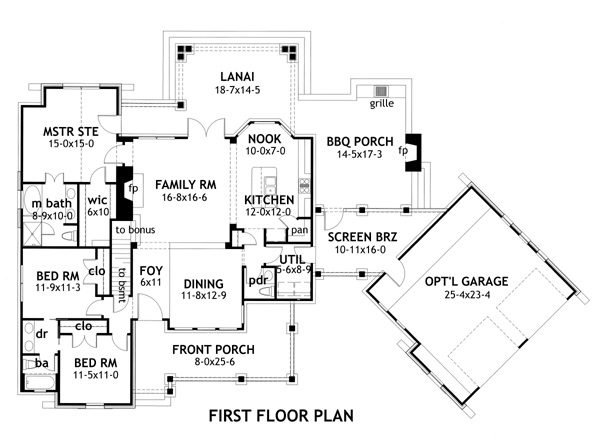

    Cottage Craftsman Tuscan House Plan 65866 Level One
    Click Here to Mirror Reverse Image Level One



    Printer-Friendly Page
    Add this plan to your My Plans collection.

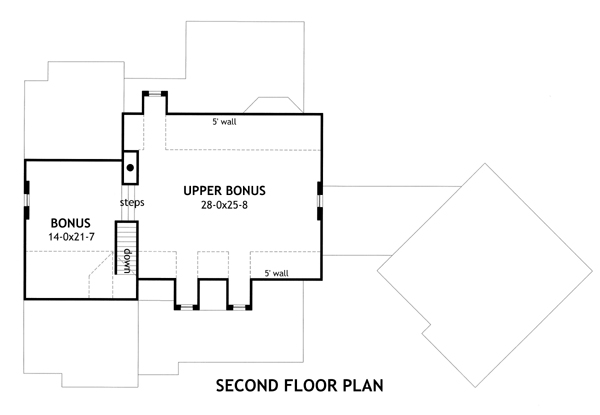

    Cottage Craftsman Tuscan House Plan 65866 Level Two
    Click Here to Mirror Reverse Image Level Two



    Printer-Friendly Page
    Add this plan to your My Plans collection.

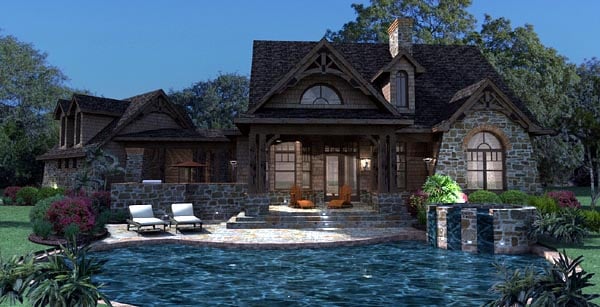

    Cottage Craftsman Tuscan House Plan 65866 Rear Elevation

    Click Here to Mirror Reverse Image Rear Elevation
    Photographs may show modified designs.
    Image quality may be compromised.



    Printer-Friendly Page
    Add this plan to your My Plans collection.















    Plan Modifications

    Want to make changes?

    Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. Simply contact the modification department at...

    Phone: 866-465-5866 - Talk to a live person that can give you and FREE modification estimate over the phone!
    Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
    Email: Click Here. Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

    ...and you will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of.














    Cost To Build
    QUICK-Cost-To-Build: Only $19.95 Per Plan
    • No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $19.95 will be deducted from your order! *

    • Get more accurate results, quicker! No need to wait for a reliable cost.

    • Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!

    • Cost report for your zip code. (the zip code can be changed after you receive the online report)

    • Estimate 1, 1½ or 2 story home plans. **

    • Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.

    • Your estimate is active for 1 FULL YEAR!

    View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.

    $19.95
    Available for U.S. only.

    * Limit one $19.95 credit per complete plan package order.

    ** Estimate Assumptions


    QUICK Cost-To-Build estimates have the following assumptions:

    QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1½ story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.

    QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.

    User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.

    User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.

    Estimate will dynamically adjust costs based on the home plan’s finished square feet, porch, garage and bathrooms.

    Estimate will dynamically adjust costs based on unique zip code for project location.

    All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.

    Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.

    QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.

    All costs are “installed costs” including material, labor and sales tax.
