Multi-Family Plan 72793
Traditional Neighborhood Design Style Multi-Plex Home Plan | Plan 72793
sq ft
1736beds
4baths
2.5bays
0width
29'depth
38'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1736 sq ft |
| Main Living Area: | 448 sq ft |
| Upper Living Area: | 420 sq ft |
| Garage Type: | None |
| Foundation Types: | Crawlspace Slab |
| Exterior Walls: | 2x4 2x6 - * $295.00 |
| House Width: | 28'3.5 |
| House Depth: | 38' |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 2 |
| Half Baths: | 2 |
| Max Ridge Height: | 27'2 from Front Door Floor Level |
| Primary Roof Pitch: | 9:12 |
| Roof Framing: | Unknown |
| Porch: | 170 sq ft |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
Plan Description
Traditional Neighborhood Design Style Multi-Plex Home Plan
Traditional Neighborhood Design Style Multi-Plex Home Plan 72793 has a grand total of 1,736 square feet of living space. Breaking it down, each unit has 868 square feet, 2 bedrooms, and 1.5 bathrooms. Occupants will enjoy the covered front porch and the back deck or patio. Build on a crawlspace or slab foundation. This two-story design measures 29' wide by 38' deep, so it has a tidy footprint. A compact duplex plan for maximum economy, it has a charming traditional look that is right at home in many residential subdivisions.
2-Story Multi-Plex Home Plan
Why build a duplex? Firstly, buyers want to save money on construction costs. The simple rectangular footprint is a breeze for building. As you know, time is money. Several units can be constructed in a short amount of time. In addition, simple building materials expedite the process. Do not worry about custom orders at your building supplier. Wood or vinyl siding is easy to come by. Secondly, buyers want to save money on maintenance costs. Do you need to replace some of that siding? No problem! Repairs are fast and easy when you’re working with mass-produced materials.
Thirdly, 2 bedroom housing is appealing to a large category of renters. Multi-Plex Home Plan 72793 has two bedrooms per unit. People in all stages of life are in the market for 2 bedroom homes. For example, young couples who are just starting out only need 2 bedrooms. They might use the extra bedroom for an office/guest room. Other tenants who may be interested include the following: short-term renters, retired couples, and those who are on a budget. Not to mention, this 2-unit design is an excellent option for an Airbnb or Vrbo property if you live in a popular destination.
Functional Layout With Bedrooms Upstairs
Main Floor: Entering from the covered front porch, you arrive in a living space that measures 13'4 wide by 12'5 deep. This is adequate space for a large wall-mount tv and a plush recliner couch. Traffic flows into the dining room, and the powder room is accessible to your right. Natural light flows throughout the main floor because there are no dividing walls. The kitchen is separated from the rest of the living space by a counter, so there is no separation between host and guests. The simple kitchen is perfectly suited to this 868 sq. ft. unit.
Level 2: Upstairs, we find a convenient stacked washer and dryer in a small closet. Occupants will appreciate that they don't need to lug laundry up and down the stairs. Both bedrooms boast a walk-in closet, and they share a full bathroom. In addition, a linen closet in the hallway helps to keep your toiletries and towels close at hand. In conclusion, this duplex plan is an excellent choice for your next building project, and it will be snapped up quickly by renters.
What's Included?
Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.
Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.
Exterior Elevations - All elevations drawn at 1/4"=1'-0".
Electrical Plans - All electrical located on separate drawings.
Schedules - Door and window schedules.
Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.
Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.
Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0"
Roof Plan - Roof plan at 1/8"=1'-0"
Alternate Slab Foundation - If requested an alternate slab plan can be included
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: There are general notes as to what method is used (continuous sheathing), but no calculations. Very rarely needed in my experience, but a few areas do want calculations (Charlotte NC for seem insane reason).
A: Three quick ones. 1) how large is the pictured vanity in the full bath? 30" ) how wide is the powder room? 3' 3) is there a way to design this with a basement? No way for a basement with inside access.
A: The CAD fle price should be on the web site. I send CAD files out in Autocad DWG format. Archicad 20 is also available. • Cover sheet – General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation. • Foundation Plan – A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available. • Floor Plan(s) – Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc. • Exterior Elevations – All elevations drawn at 1/4?=1'-0?. • Electrical Plans – All electrical located on separate drawings. • Schedules – Door and window schedules. • Building section(s) – Section through the building showing stairs, vertical dimensioning, and structural information. • Details – Various details describing foundation, wall, column details, roof assemblies, porch and deck details… etc. • Cabinet Elevations – Kitchen cabinet elevations @ 3/8?=1'-0? • Roof Plan – Roof plan at 1/8?=1'-0? • Alternate Slab Foundation – If requested an alternate slab plan can be included
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

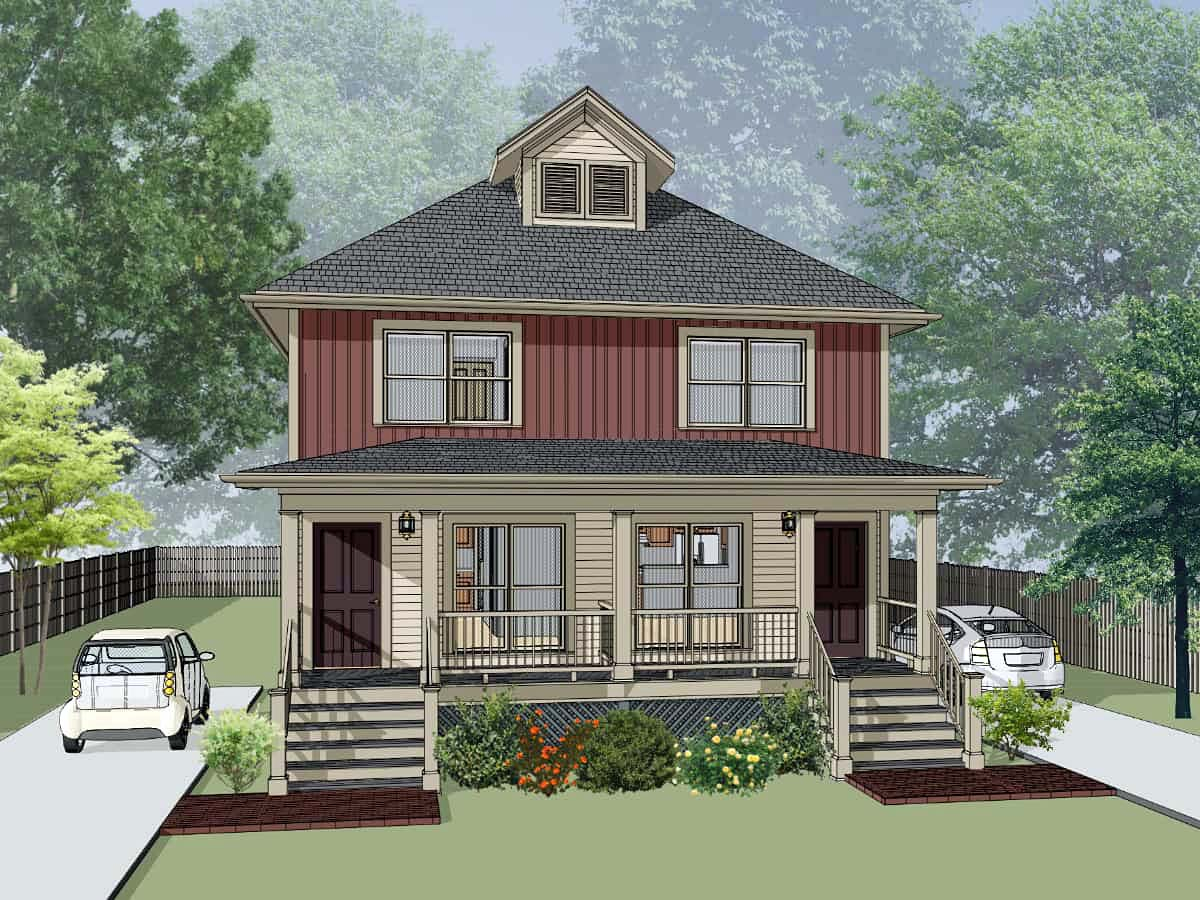

Elevation

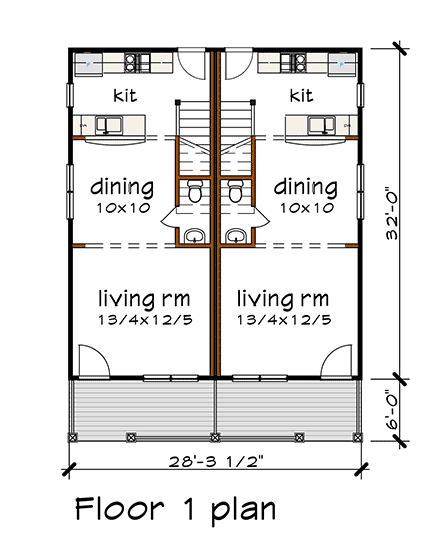

Level One

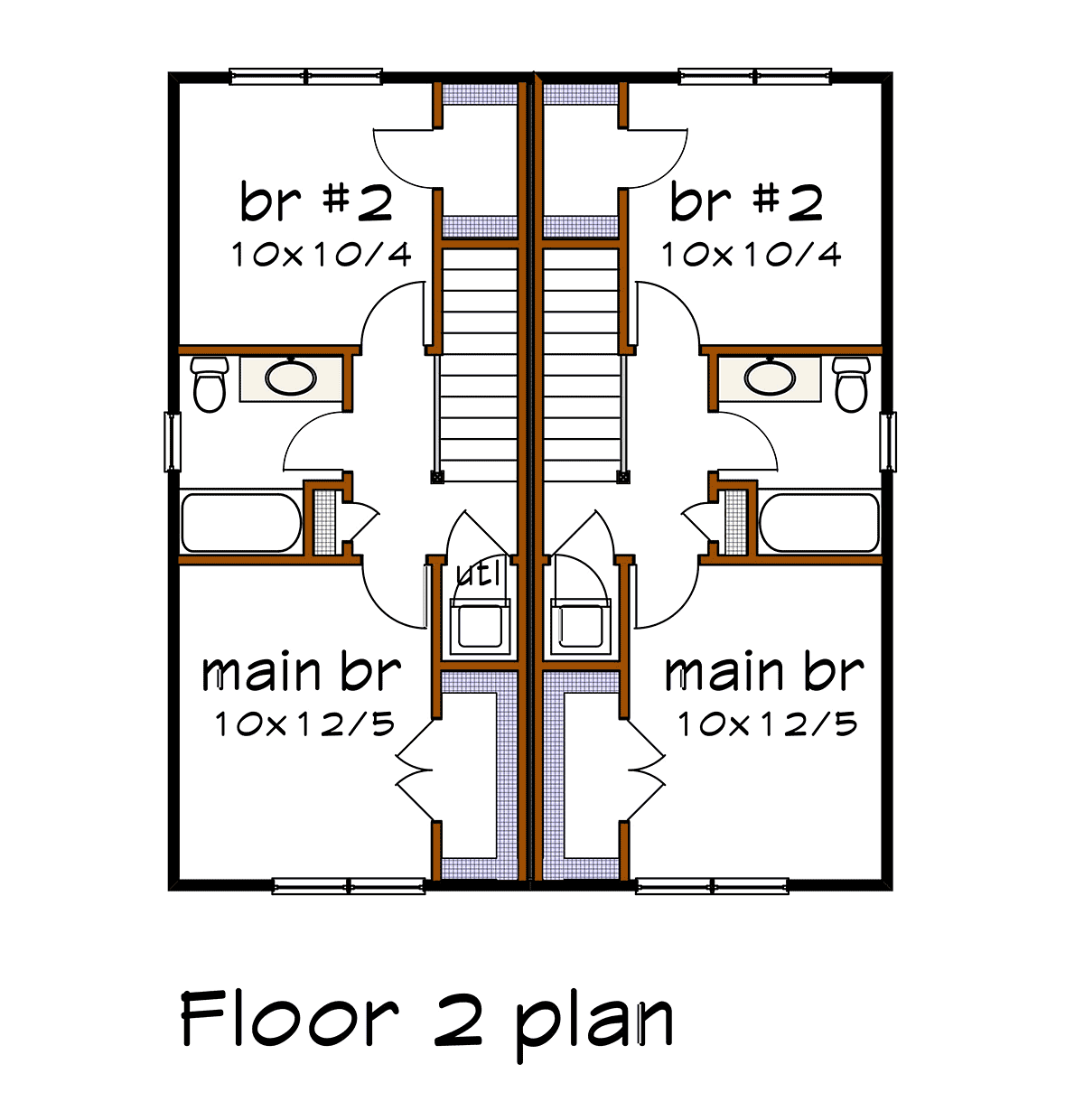

Level Two
