Specifications

Bonus Area:	759 sq ft
Garage Area:	1432 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	54'
House Depth:	40'
Number of Stories:	2
Half Baths:	1
Max Ridge Height:	26'2 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	32 psf
Roof Framing:	Truss
Porch:	46 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

Plan Description

Popular RV Garage Plan With Future Apartment

Popular RV Garage Plan 76023 has motorhome parking plus 2-bay garage parking for your standard sized vehicles. In addition, the plan offers an upper-level bonus room that can be converted into apartment living space. Build this motorhome plan to store your recreational vehicle, and rent out the apartment space. This motorhome plan is an excellent investment.

Popular RV Garage Plan With Workshop

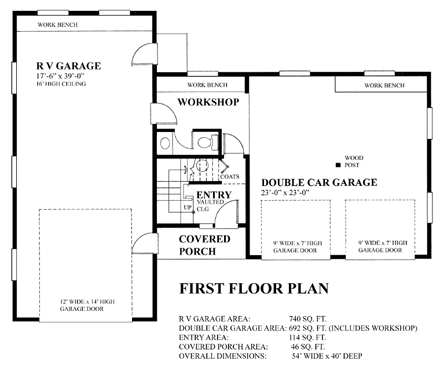

740 square feet is allotted for the RV parking area, and a 16' ceiling offers plenty of vertical space. In the rear, there is a work bench. The RV door measures 12' wide by 14' high. Overall, the motorhome parking is 17'6 wide by 39' deep. Be sure to check that the measurements will work for your motorhome. If not, remember that we also offer modifications for all of our garage plans.

Parking for 2 standard-sized vehicles is available on the right side of the garage. Car parking is 23' wide by 23' deep. The two garage spaces are connected by the workshop. It includes a work bench and half bath. The entry includes a coat closet and access to the staircase. In total, your garage ground floor keeps your vehicles sheltered from the elements and gives you a place to work and store your tools.

RV Garage Plan With Income Potential

Popular RV Garage Plan 76023 is an excellent choice for the adventurer. Firstly, the generous sheltered parking area will keep your motorhome in tip-top shape when you're not on the road. Need to do a little maintenance? No problem because all of your tools are right there. Need to store sporting equipment and camping gear? Well, there is plenty of space for that too.

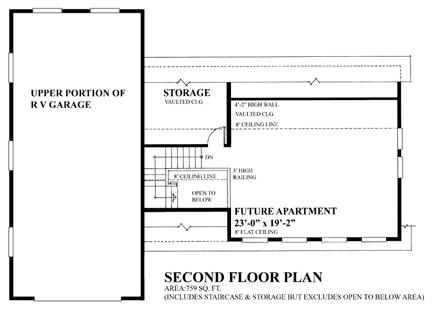

Secondly, everyone knows that travelling takes money. To help out with cash, you can finish the bonus space upstairs. Turn it into an apartment, and rent it out. Use the money to fund your travel expenses. As a bonus, the renter could barter for time. For example, the renter could care for your property in exchange for a reduced monthly payment.

In conclusion, RV Garage Plan 76023 is a popular choice because it supports your lifestyle in so many ways.

What's Included?

These designs packages usually run between three and five 24" x 36" sheets.

Working drawings usually comprises of the following:

General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.

Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.

Items not including with plans: Interior cabinet elevations. Window schedules.

Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the sizes of the windows in the double car garage and the apartment above? Thank you.

A: Double car garage: 4 – 4’-0” x 4’-0” ( width x height) Apartment: 2 – 3’-0” x 4’-0” right side, 4 – 3’-6” x 4’-6”

Q: I would like the garage to be just as deep as RV garage. And would like RV garage to be a little longer, say 45ft. Need more living space, say about 2000 sq ft above garage, got any plans like that?

A: Have a look at pre-drawn plan number 76034.
It has a RV garage 55’ long with a 18’ plate height.
The double car garage is 49’ long with a 9’ plate height.
The area above the garage is 1280 sq. ft. and has a vaulted ceiling.

As an alternate I would be happy to modify any of my drawings or design you a custom garage to meet your specific requirements.

Thank you for your interest in one of my designs,

Q: i like this design without rv garage do you have plans like that I am looking for 24x32 size thanks

A: Please have a look at garage design 76024, which is 24’ x 36’ and similar to 76023 but without the RV garage portion. Otherwise I would be happy to modify any of my plans or design you a garage to meet your specific requirements.

Please email with questions or if you require any additional information.

Thanks for your interest in one of my designs, Regan.
