House Plan 77437

• PDF File: $890.00
• 3 Sets: $995.00
• 5 Sets: $1,040.00
• 5 Sets plus PDF File: $1,115.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Basement : $495.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $425.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $350.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : No Additional Fee
• Walkout Basement : $525.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: $295.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1311 sq ft
Main Living Area:	1311 sq ft
Garage Area:	855 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $495.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $425.00 Slab - * $350.00 Stem Wall Slab Walkout Basement - * $525.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 - * $295.00 2x6
House Width:	76'0
House Depth:	42'6
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	20'5 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Porch:	280 sq ft
Main Ceiling Height:	10'

* May require additional drawing time.

Special Features:

• Dropzone
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space

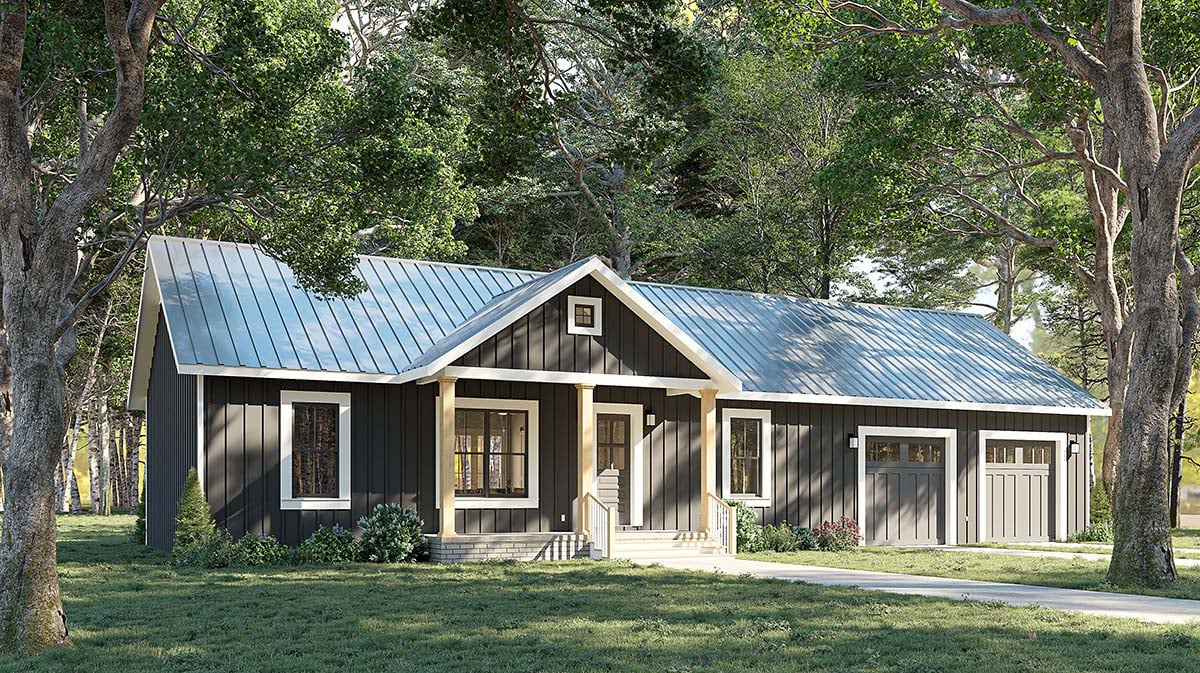

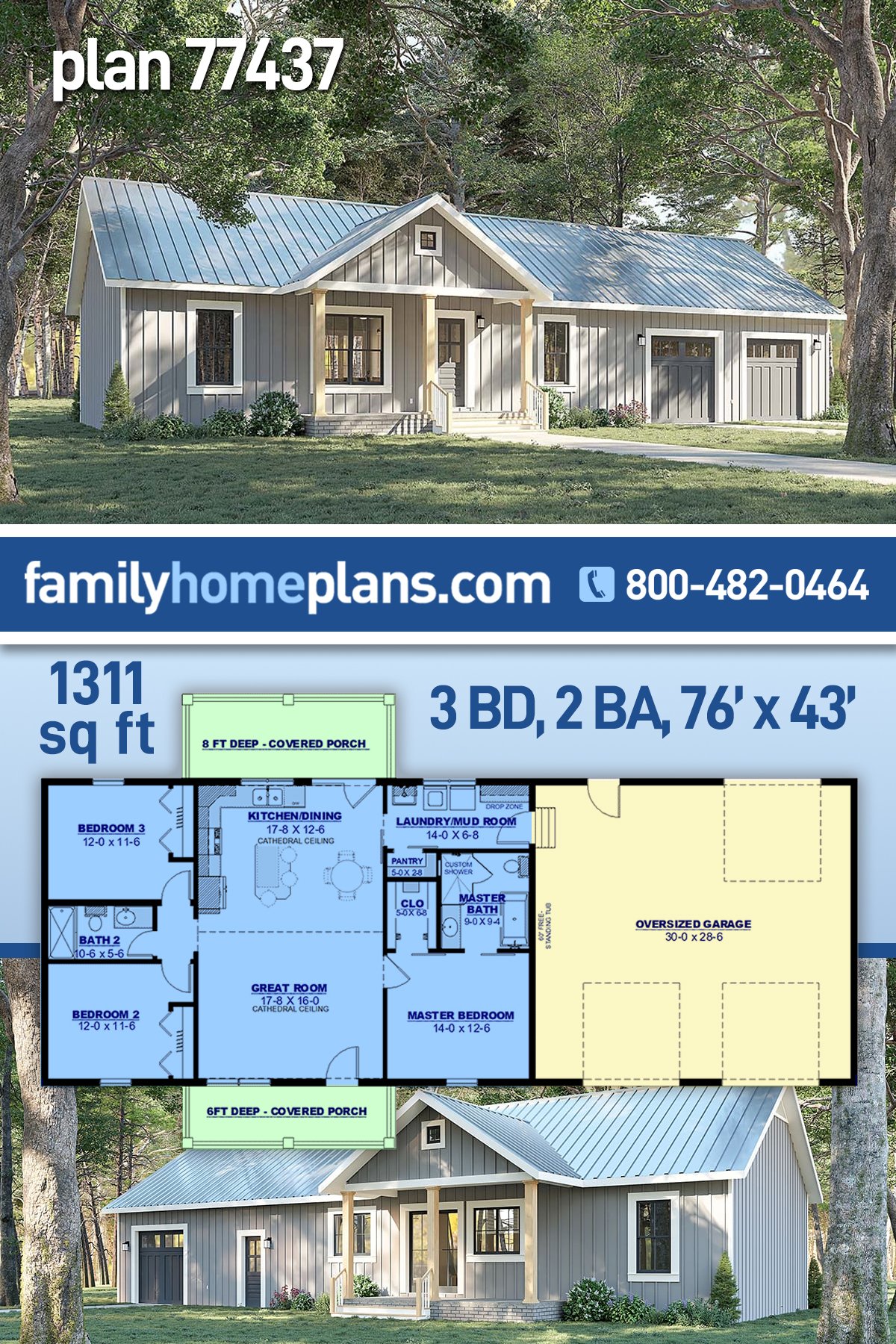

Simple Ranch Plan With 3 Car Garage

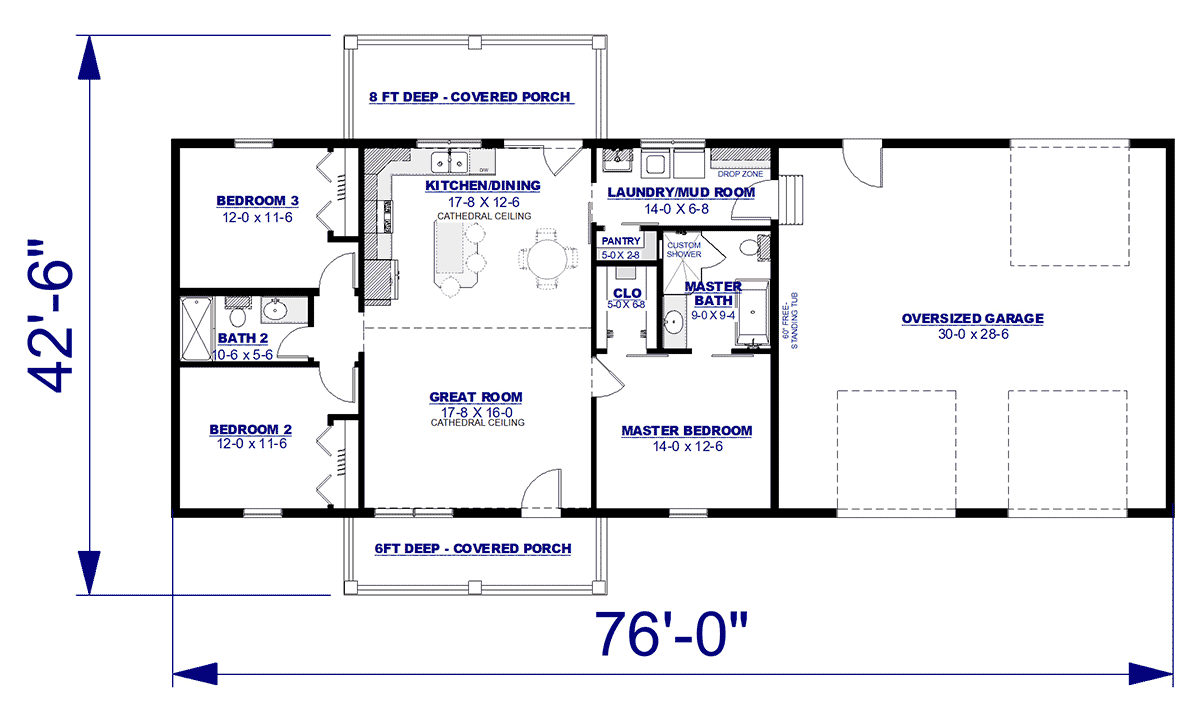

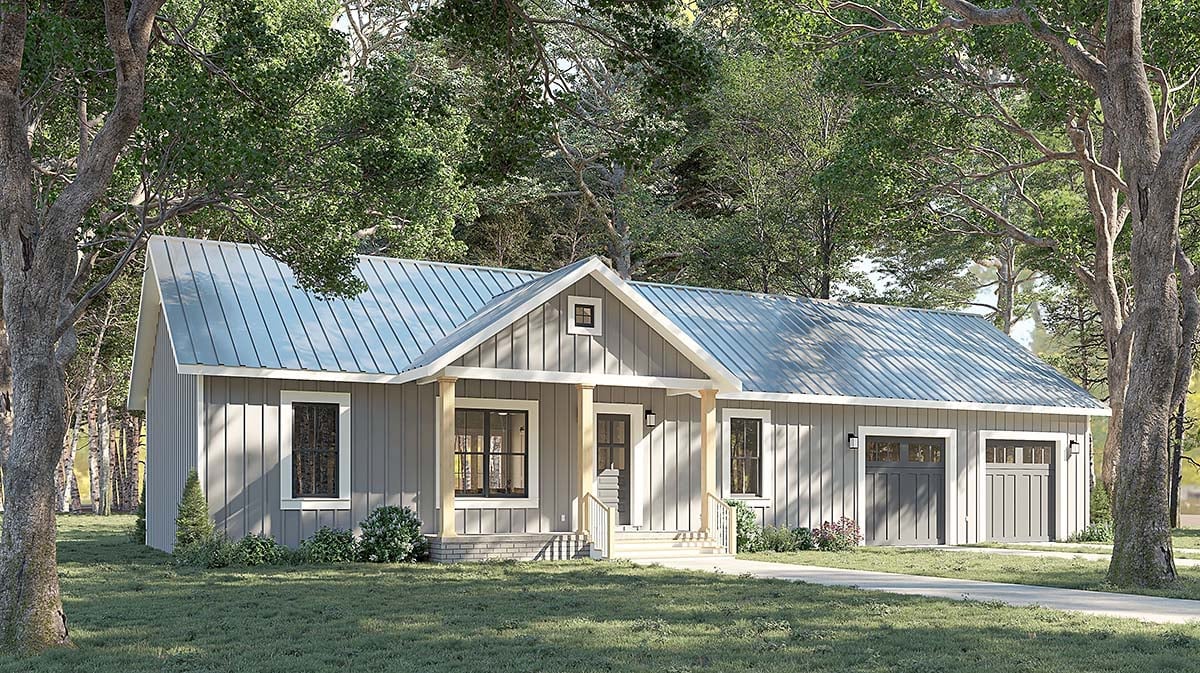

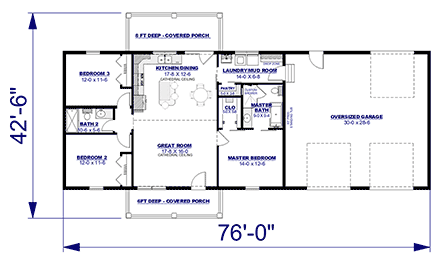

Simple Ranch Plan 77437 is your ticket to an affordable build and an affordable lifestyle. This new construction home has the perfect balance of space in 1,311 square feet of living area. You will have 3 bedrooms and 2 bathrooms, and there is no unused space costing you money! The footprint is perfect for a wide and short lot because the exterior dimensions are 76 feet wide by 43 feet deep. While it's a Ranch Style, the floor plan is modern with open living space, and there's a surprise when it comes to the garage as well.

Simple Ranch Plan With Oversized Garage

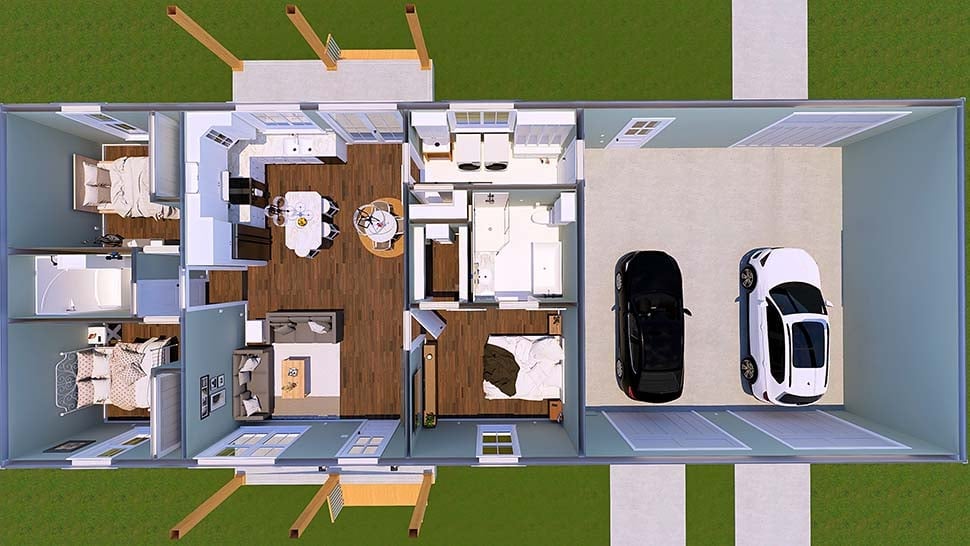

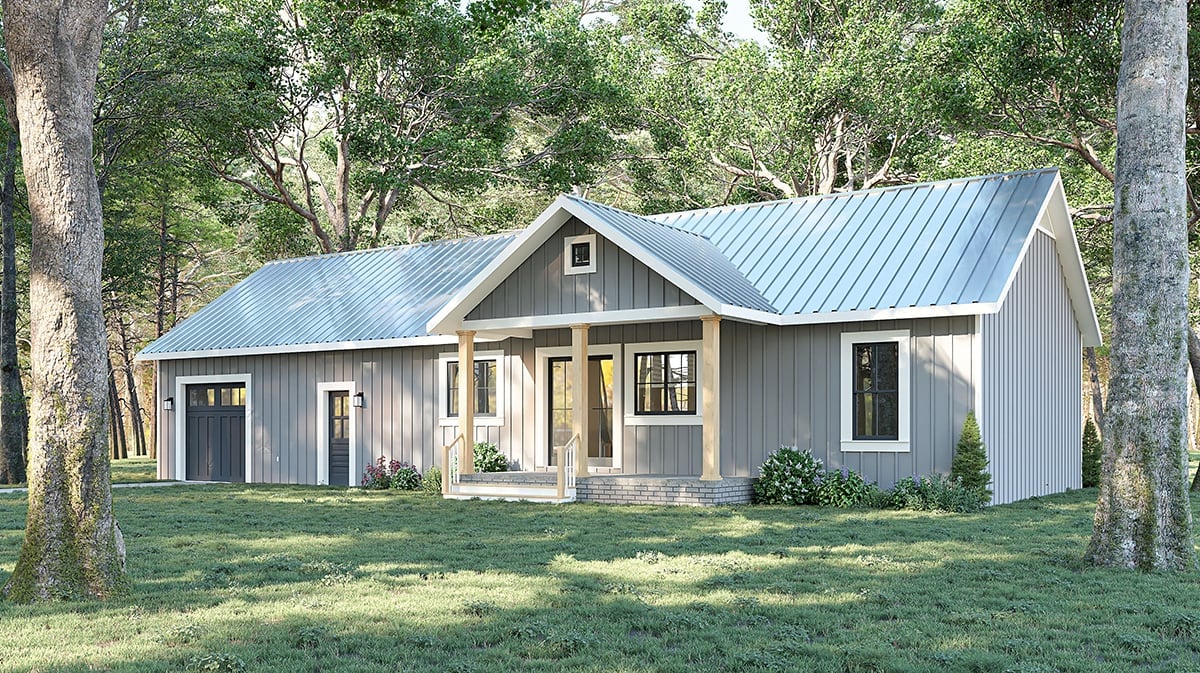

Simple Ranch Plan 77437 has features that are rare in a home this size. Firstly, you won't often find a 3 car, oversized garage in an approximately 1300 square foot home. This new house plan has a right side garage measuring 30 feet wide by 28'6 deep! You have 3 overhead garage doors total. Best of all, the 3rd garage door is on the back of the house. Therefore, this is a Ranch House Plan With Drive-Through garage. Now you can hook up your boat or trailer and drive straight through. No more difficulty when backing in and out. Do you have a spouse who is a poor driver? Well don't tell them, but this design cuts down on the chance that they will do some damage with your trailer.

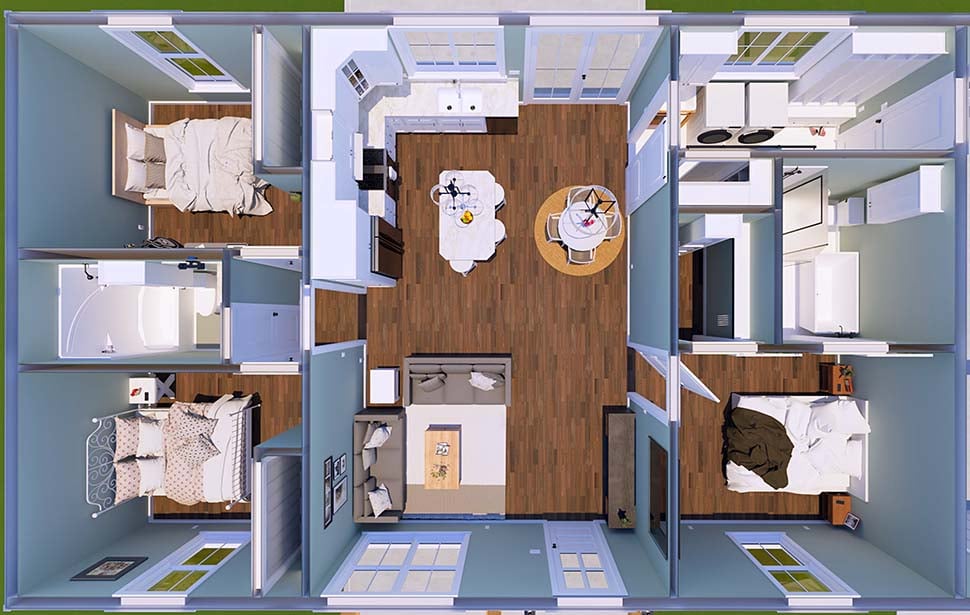

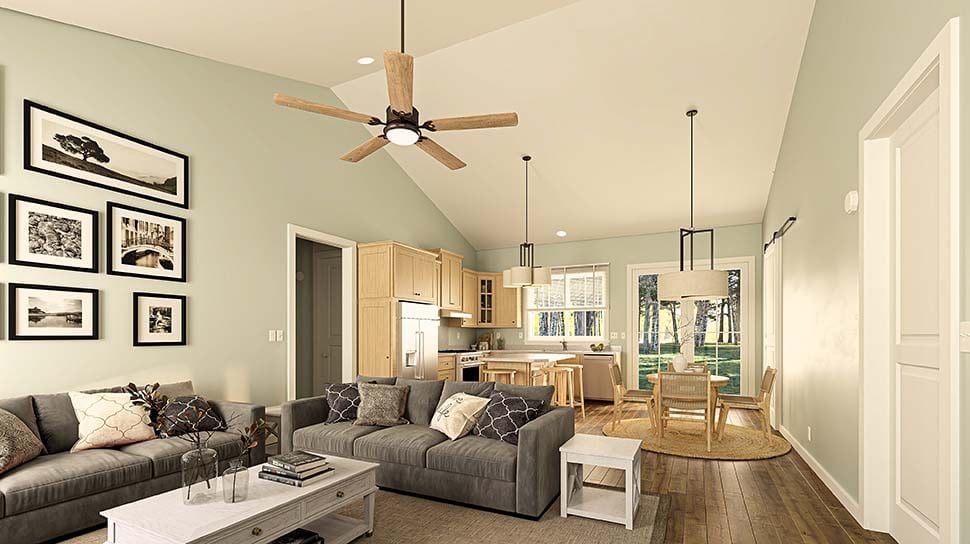

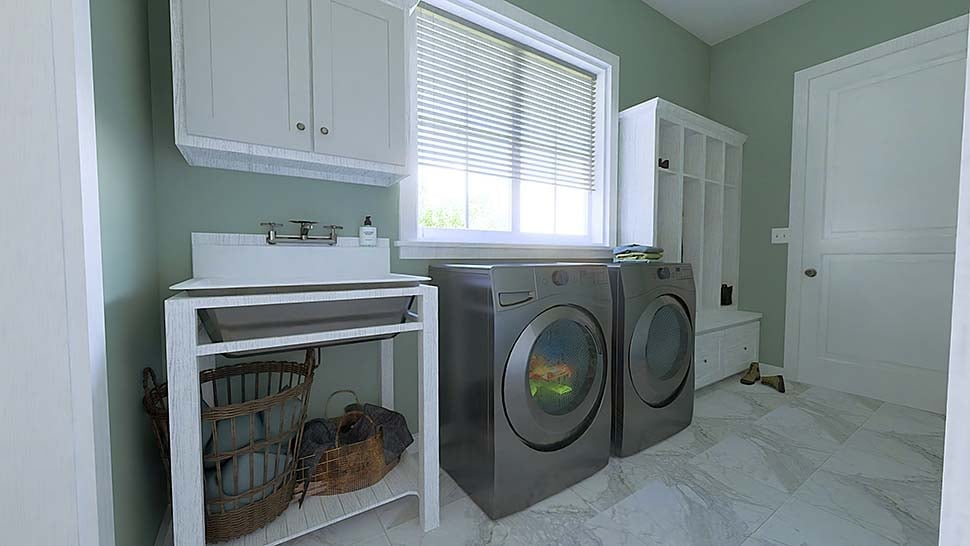

Secondly, the floor plan is designed for both function and comfort. Notice the function when you enter from that garage into a combination mud room and laundry room. Keep all the mess in one place. Sit down on the bench by the back door and peel off those muddy boots. Soak muddy clothes in the utility sink and avoid dragging any messes into the main house. When it comes to comfort, this home offers open living space between the great room, kitchen, and dining space. The entire area is 17'8 wide, and traffic flows freely from the front door, through the living room, and around the round dining table and the kitchen island.

Split Floor Plan and Two Covered Porches

Thirdly, outdoor living space has not been left out in Simple Ranch Plan 77437. The front porch is 6' deep, and you can picture it overflowing with potted plants, both hanging from the porch or set up next to the front door. Next, walk around back where the porch is 8 feet deep to accommodate your grill and lounge chairs. The kids can play on the front porch while you are moving about in the kitchen and setting the dining table inside because you can watch them through the glass patio door and the large window above the sink.

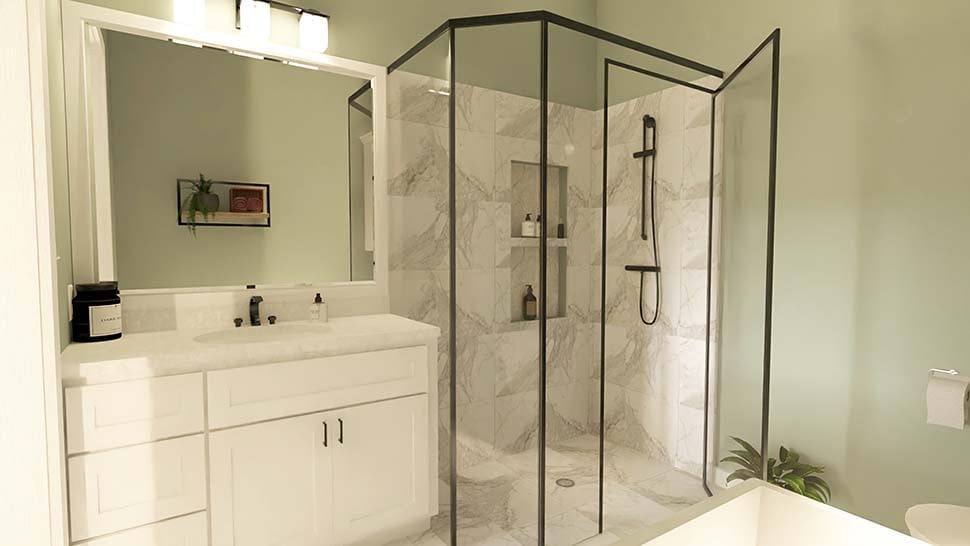

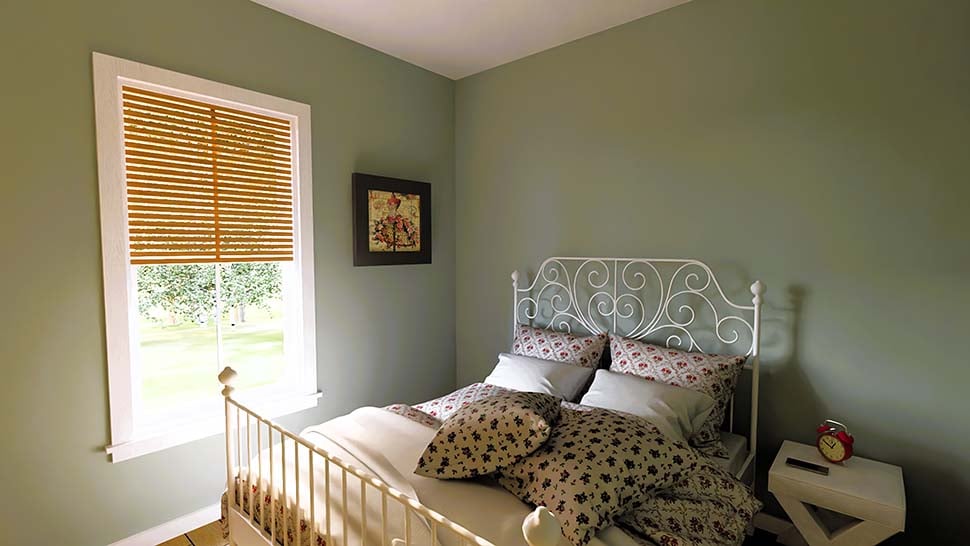

Bedrooms are designed as a split floor plan, so the two children's bedrooms are located on the left side of the floor plan. The kids share bathroom number 2 along with any guests who come over. Mom and Dad's master bedroom includes a large walk-in closet measuring 5' wide by 6'8 deep. The bathroom has both an oversized custom shower and a freestanding tub for those days that you just need to relax and soak.

Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.

Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.

Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.

Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.

Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.

Building Sections, Details and Typical Specifications Sheets

Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.
