Specifications

Total Living Area:	4039 sq ft
Main Living Area:	2412 sq ft
Upper Living Area:	1627 sq ft
Garage Area:	688 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4 - * $437.50 2x6 - * $437.50 2x8 - * $437.50 Concrete
House Width:	44'8
House Depth:	81'0
Number of Stories:	2
Bedrooms:	5
Full Baths:	5
Half Baths:	1
Max Ridge Height:	28'5 from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Framing:	Truss
Porch:	323 sq ft
Deck:	216 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	11'4
Upper Ceiling Height:	9'4

* May require additional drawing time.

Special Features:

2nd Floor Balcony
Bonus Room
Elevator
Entertaining Space
Flex Space
Guest Room
Lania
Open Floor Plan
Outdoor Fireplace
Outdoor Kitchen
Pantry
Storage Space
Study
Wet Bar

Plan Description

Narrow Lot Florida House Plan With 5 Bedrooms

Narrow Lot Florida House Plan 77511 has a whopping 4,039 square feet of living space, 5 bedrooms, and 5.5 bathrooms! As we all know, beachfront lots can be hard to find. When you do find one, it's often narrow. This home will fit well into a narrow lot because the exterior dimensions are 45 feet wide by 81 feet deep. However, nothing is lost when it comes to amenities. This new 2 story Coastal Home Plan boasts an abundance of open living space and a bathroom for each member of the household.

Narrow Lot Florida House Plan With Elevator

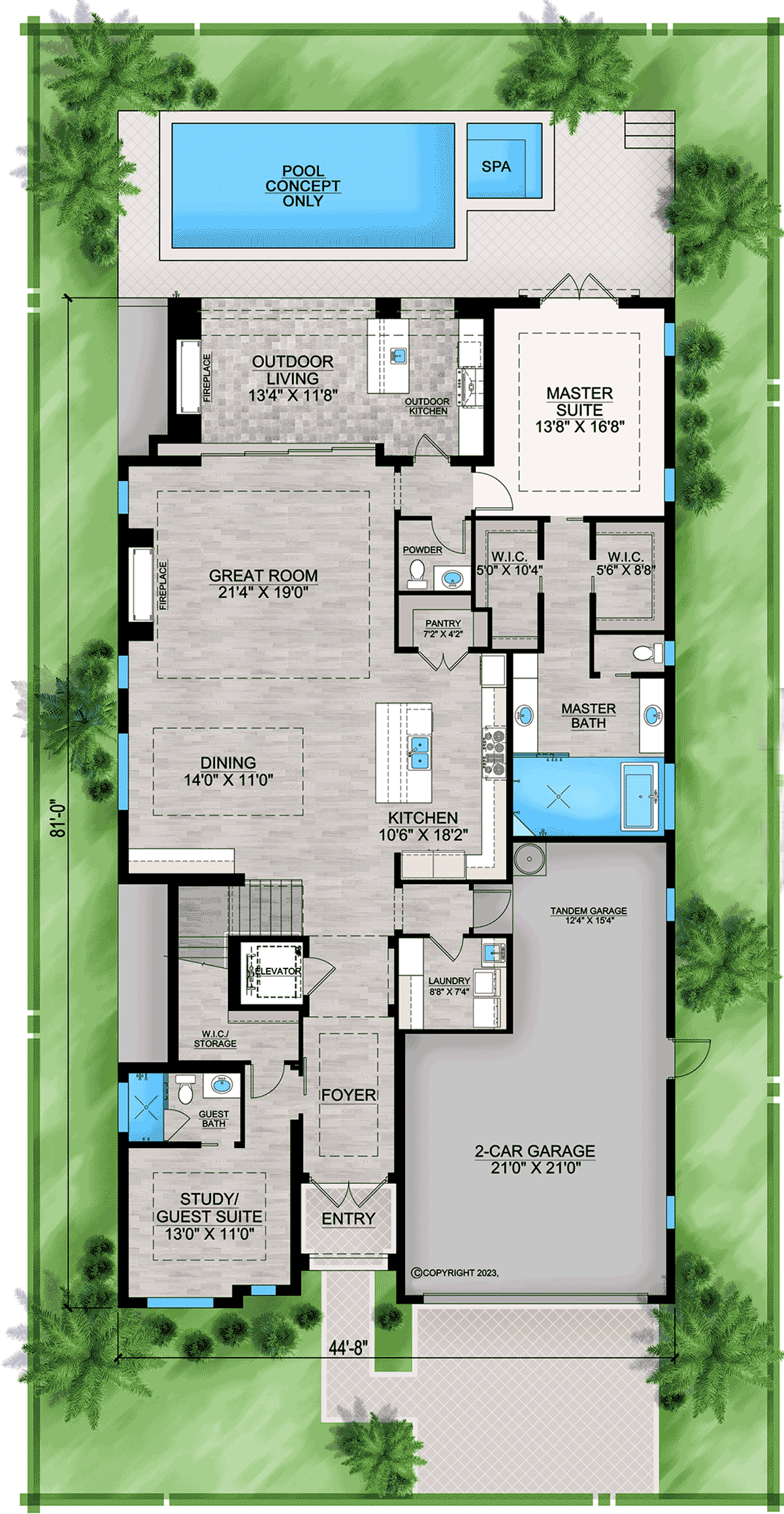

Let's take a tour of the 1st level of Narrow Lot Florida House Plan 77511. Firstly, upon entering, you land in a formal foyer with special ceiling treatments. There is a guest suite / study immediately to your left, and it has a private bathroom and walk-in closet for storage. Use this room as your office until the holidays role around. Then, turn it over to Aunt Sue and Uncle Don. They will appreciate the combination of privacy from the hustle and bustle of daily activity, yet they will also be close to the rest of the family. Plus, they can easily access the laundry room because it's right down the hall at the garage entrance.

Secondly, the living space opens invitingly at the end of the entrance hallway. You have special ceiling treatments delineating the spaces for the dining room and the great room. Gather around the fireplace and share popcorn during family movie night. But when you're entertaining, push back the sliding doors, and guests will spill outside and enjoy the outdoor fireplace. Furthermore, seat your guests at the bar and serve steaks from the outdoor kitchen. Thirdly, this new Florida Home Plan has an elevator. Easily access the second floor via the elevator which is located close to the foyer and close to the garage entrance.

House Plan With More Toilets Than People

That's right—Narrow Lot Florida House Plan 77511 has 5 bedrooms, but it has even more bathrooms. Guests will use the one and only half bath. It's located with quick access to the outdoor kitchen. If effect, if you have a pool, it's easy to access the half bath and eliminate wet footprints traveling too far into the rest of the home. The master suite is also located in the back of the house. Mom and Dad will love the double doors which open to the patio. Furthermore, they will love the TWO walk-in closets and the wet room setup which combines a big tub and walk-in shower area behind glass.

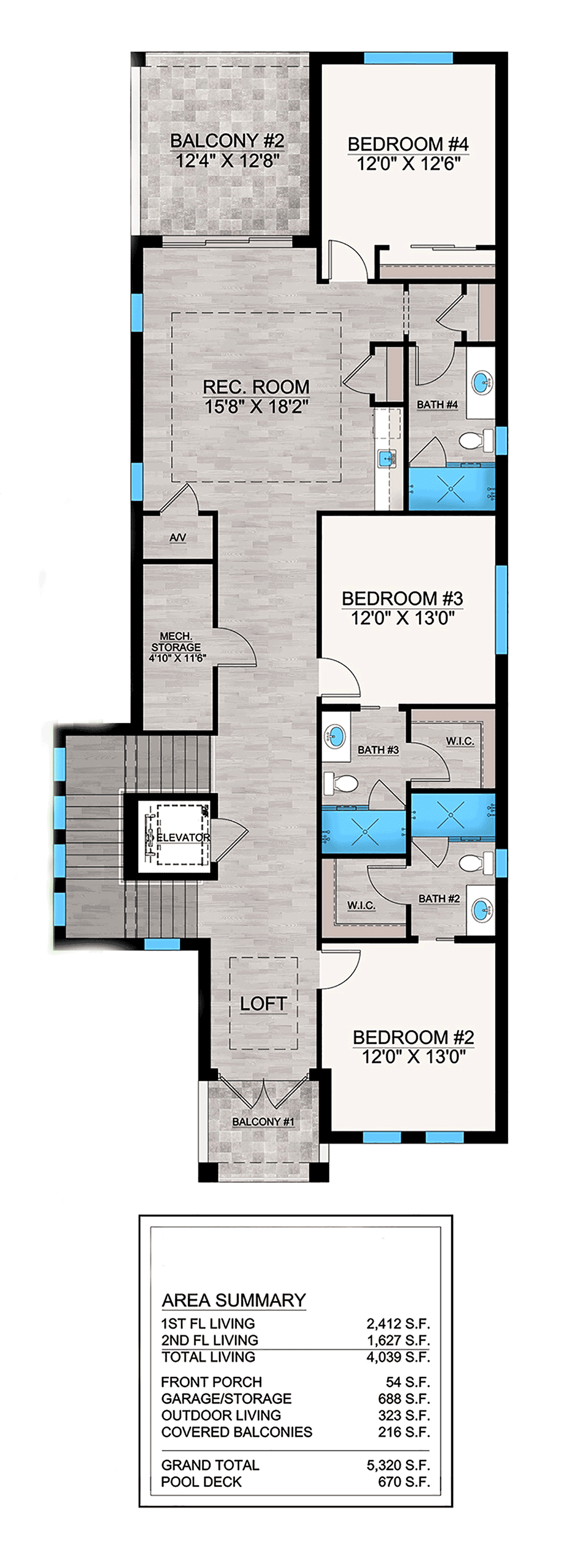

Three bedrooms are located upstairs along with a recreation room, kitchenette, loft, and TWO fun outdoor balconies. Bedrooms 2 and 3 each have their own private bathroom and walk-in closet. Bedroom 4 shares access to bathroom 4 along with anyone who is enjoying the upstairs amenities.

What's Included?

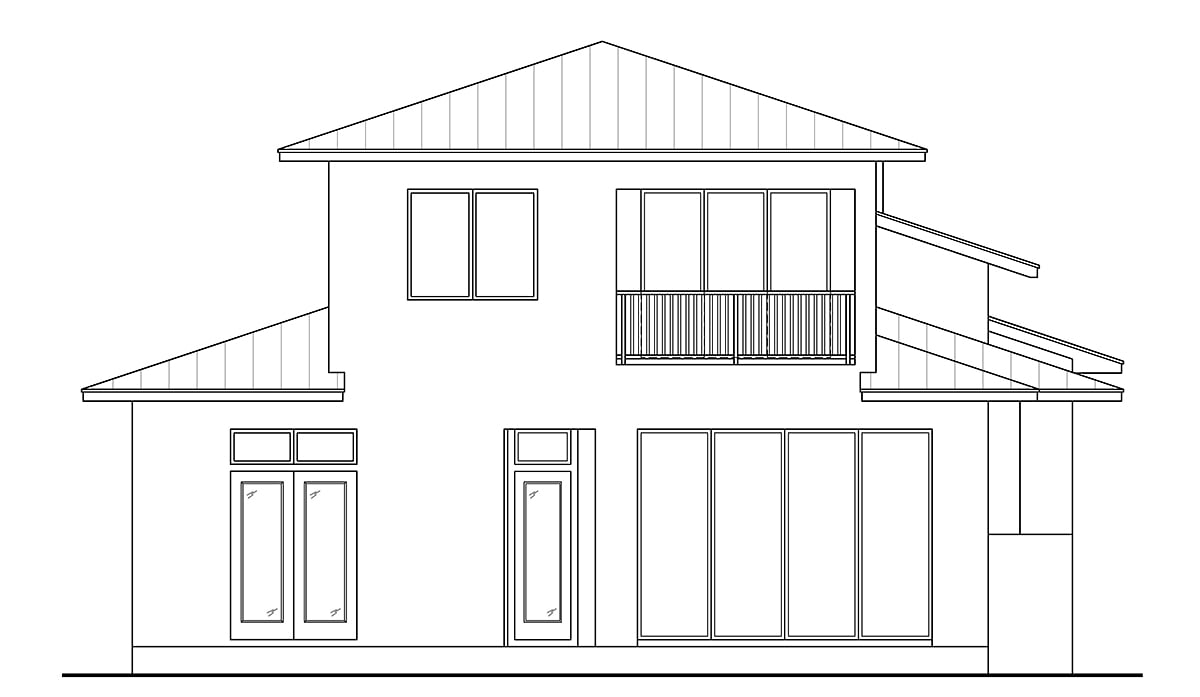

Elevations:
