Materials List: $250.00 Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.
Right Reading Reverse: $225.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file.
Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace
: No Additional Fee
Slab
: No Additional Fee
Walkout Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $395.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:
2x4 2x6 - * $325.00
House Width:
86'8
House Depth:
73'0
Number of Stories:
1
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Max Ridge Height:
24'0 from Front Door Floor Level
Primary Roof Pitch:
7:12
Roof Load:
30 psf
Roof Framing:
Stick
Porch:
575 sq ft
FirePlace:
Yes
Main Ceiling Height:
10'
* May require additional drawing time.
Special Features:
Entertaining Space
Front Porch
Mudroom
Open Floor Plan
Outdoor Kitchen
Pantry
Rear Porch
Storage Space
Study
Plan Description
Texas Ranch House Plan With Outdoor Kitchen
Texas Ranch House Plan 80814 has 2,974 square feet, 3 bedrooms, and 3.5 baths. Every bedroom has a private bathroom and walk-in closet. In addition, the home offers an outdoor kitchen on the rear porch. This home has a big pantry, laundry room, and game room. Bigger is better in Texas. This Texas Ranch Style Home Plan has everything you want and more!
Texas Ranch House Plan With Rustic Appeal

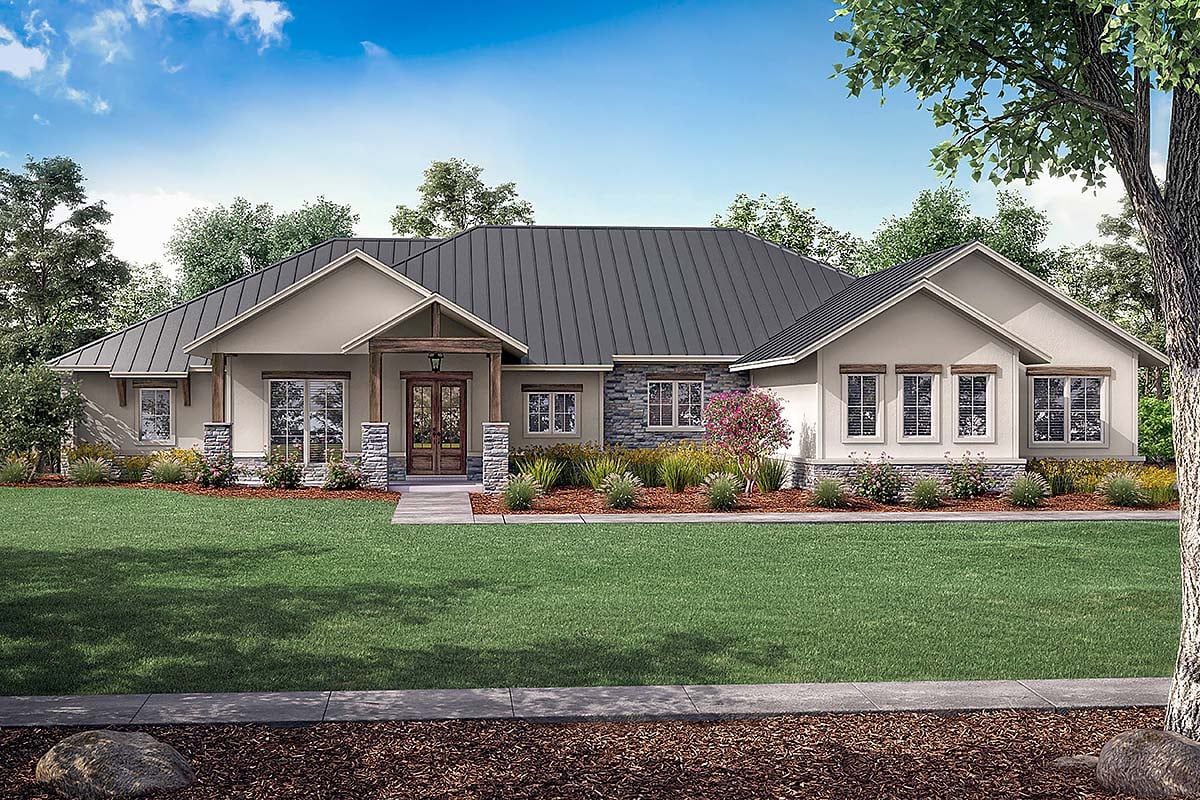

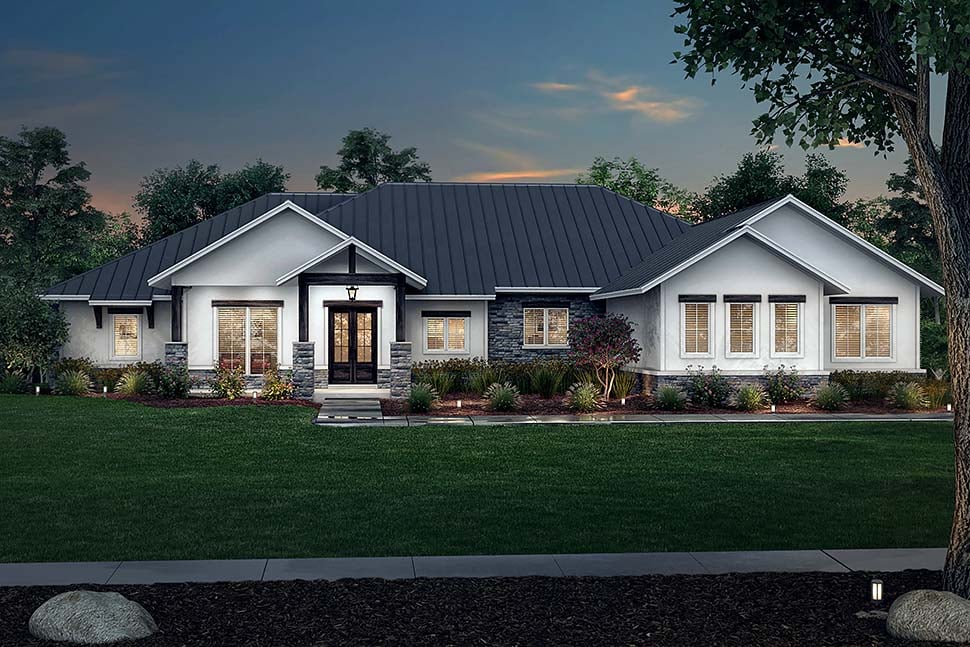

Earthy materials such as stone, wood, and stucco give your home curb appeal. Stone siding is used as an accent on one wall of the exterior. We used stone as skirting and for the base of the porch columns. The porch columns lend to the rustic aesthetic of the home because they are thick and heavy. The dark stain matches the double front door and the lintels above the windows.
Texas Ranch House Plan 80814 has two covered porches. The vaulted ceiling on the front porch is continued to the rear porch. Your family will have so much room to relax on the back porch because it measures 19' by 19'6. The vaulted ceiling makes the space feel even bigger. Set up the optional outdoor kitchen with your favorite finishes. Give your kitchen a break. Flip burgers and grill steak outside at any time of the year.
Texas Ranch House Plan With Open Living Space
Your first thought upon entering the great room will be: "This is big!" The great room is big in every direction you look, whether it's up or around. The ceiling is vaulted more than 15', and the room is 18'4 wide by 18'8 deep. One wall has a gas log fireplace surrounded by built-ins. Light floods inside because of the double door and windows on the porch side. Not to mention, the open wall into the kitchen further opens the space. Traffic flows smoothly throughout the living area.
We love the kitchen with its L-shaped, walk-in pantry. The pantry includes a freezer, shelves, and prep counter. Finish the kitchen in Texas Ranch House Plan 80814 with stone counters, floor-to-ceiling cabinets, and of course, the ever-popular stainless steel appliances. Lots of kids can sit at the island eating bar. They can finish homework here in the kitchen and tell you about their day. The dining room is set off by a beamed, tray ceiling. Natural light brightens this room due to the windows on two sides.
House Plan With Walk-in Closet and Bathroom in Every Room
That's right, every bedroom has a private bathroom and walk-in closet! The biggest and best is the Primary Bedroom which is located on the left side of the house. This Texas Ranch House Plan has a split-bedroom layout. The primary bedroom has a giant ensuite. We've included a custom shower, separate tub, his and her vanities, two linen closets and private water closet. The closet measures 13'2 wide by 7'4 deep which affords the couple plenty of storage space for those 10 gallon hats.
The children's bedrooms are located on the right side of the house. Each bedroom has a generous walk-in closet which is accessed by pocket door from the full bathroom. The kids will love that they have a game room right outside of their bedrooms. It features a tray ceiling and wide open space for an air hockey table or billiards table. Store the game supplies in the small closet to keep the clutter down.
Other great features for Texas Ranch House Plan 80814 are listed below:
Study which is accessed through a set of barn doors from the foyer.
Large laundry room with counter space and utility sink.
Mud room with drop zone locker storage.
3 car garage with extra storage room.
Powder room conveniently located between the game room and mud room.
Hidden storage or safe which can be accessed from the master walk-in closet.
In conclusion, there is a place for everything in this large home. Whether you are entertaining or enjoying time with family, the options are sure to impress.

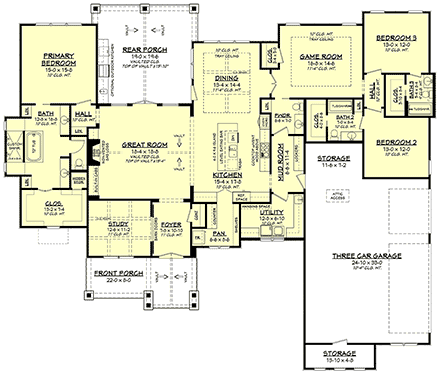

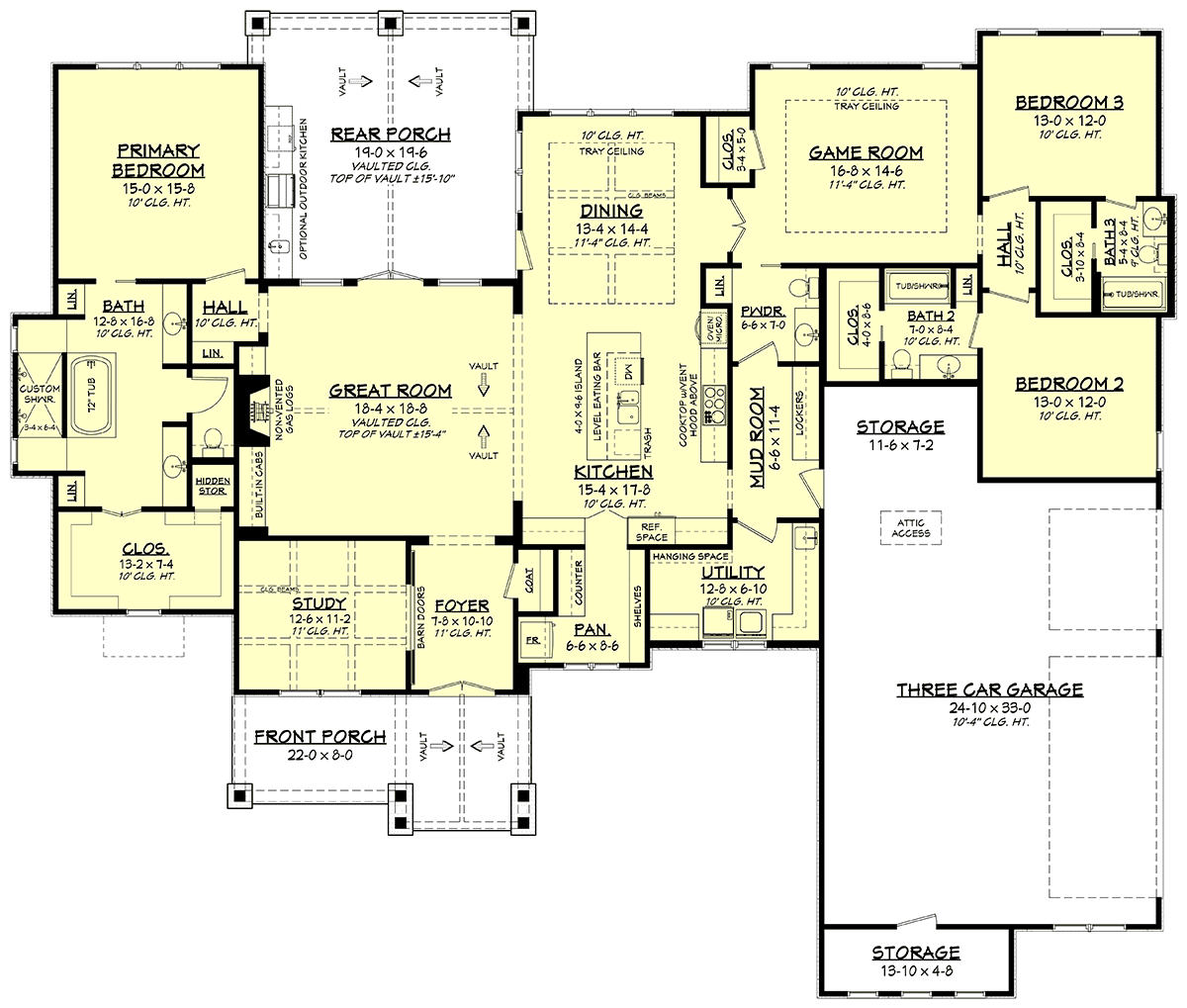

Great Floor Plan
What's Included?
Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.

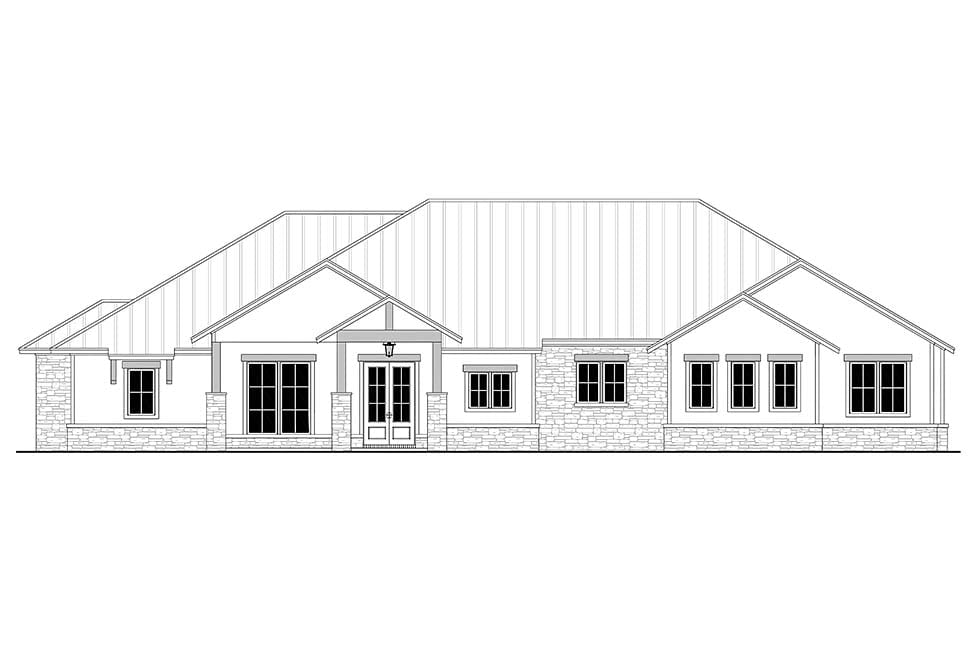

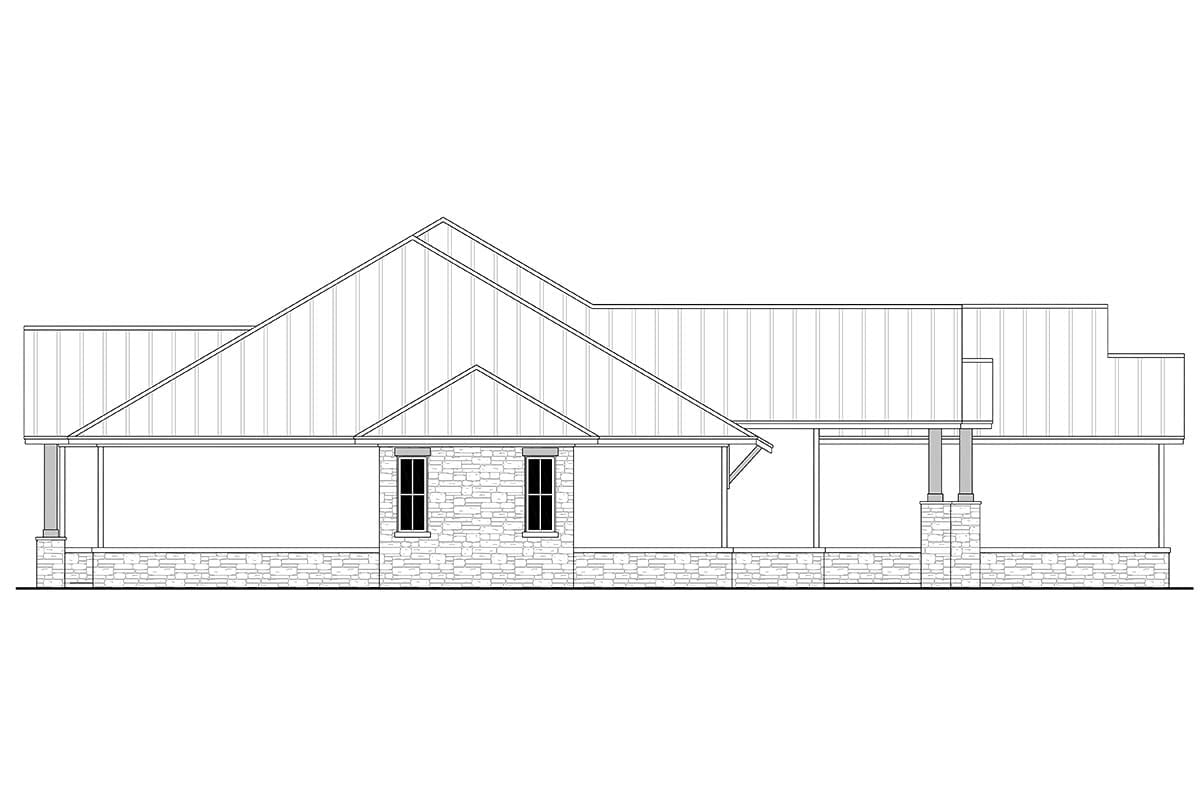

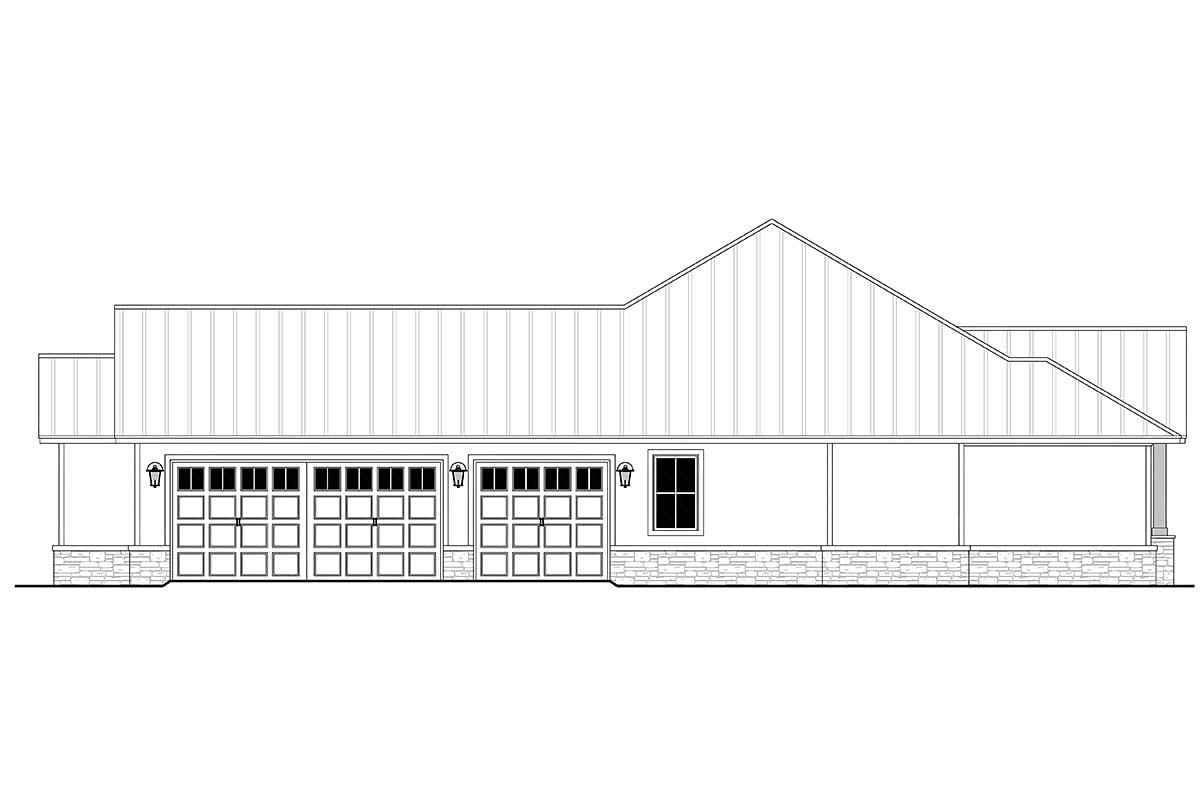

Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.
Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.
Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.
Modifications
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:What is the wall dimension behind the refrigerator in the kitchen? I have 3 appliances that I want to make sure will fit there. I need the measurement starting from the pantry door opening and going right to the wall of the mudroom.
A:Approximately 7'-6". Final dimensions will need to be verified after framing and drywall.
Q:Re: Plan 80814 Is the perimeter for the basement identical to the main floor. I understand it is unfinished. I am curious if it mirrors the main floor. Thanks.
A:That is correct....the basement level is the same as the heated area of the main floor (yellow shaded area).
Q:What are the dimensions of the hidden storage off the master closet?
A:Approximately 3'x3'.
Q:I am interested in this plan if I can build it in Mecklenburg County NC. The lot I have has a 6141 square foot impervious restriction driveway included placed on it and I was hoping I could get that figure based on this exact plan if you have it. Or do you have the outside dimensions (not the 86.8 x 73) that I could calculate from. Thank you Kelly Randall
A:The total area of the house is the heated footage (2974) + garage footage (846) + porch footages (575) = 4395 total footage under roof. We cannot say with certainty that the plans will meet all the requirements for Mecklenburg County. The plans are designed for International Residential Code 2018 edition. However, some counties/municipalities require additional information above and beyond this code such as engineered drawings, structural load calculations, mechanical drawings, etc. If required, these items must be obtained locally by means of working with a local designer or engineer to modify the drawings to meet the requirements of your area. You will need to contact your building official to inquire about what information is required. We do offer CAD files which will make it easier for a local engineer to modify the drawings in the event that you need additional information on the plans.
Q:Emailing again to ask about the layout of the walkout basement. Where is the exit door located?
A:See attached....doors and windows mimic the main floor above.
A:No....only the walkout basement. We're adding the walkout basement option to the pricing options.
Q:I would like to see the basement plans for this.
A:The basement is unfinished, so there is no floorplan for that level.
Q:What does roof drainage plan look like and does every plan come with one?
A:The roof drainage plan is a bird's eye view of the roof of the plan showing the ridges, valleys, hips, etc. Roof pitches and overhangs are also shown on this drawing. All of our plans come with a roof plan.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
