Garage-Living Plan 80949

15% DISCOUNT

• PDF File: $956.25 $1,125.00
• 5 Sets: $1,096.50 $1,290.00
• 5 Sets plus PDF File: $1,137.30 $1,338.00
• CAD File: $1,381.25 $1,625.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $313.44 $368.75
• Right Reading Reverse: $170.00 $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $29.75 $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $170.00 $200.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1565 sq ft
Main Living Area:	365 sq ft
Upper Living Area:	1200 sq ft
Garage Area:	835 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $200.00
House Width:	60'0
House Depth:	20'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Max Ridge Height:	24'4 from Front Door Floor Level
Primary Roof Pitch:	3:12
Roof Load:	40 psf
Roof Framing:	Stick
Main Ceiling Height:	10'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

• Entertaining Space
• Open Floor Plan
• Pantry

Plans include

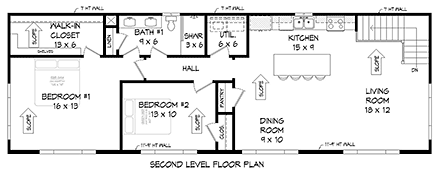

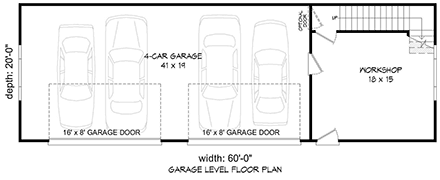

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

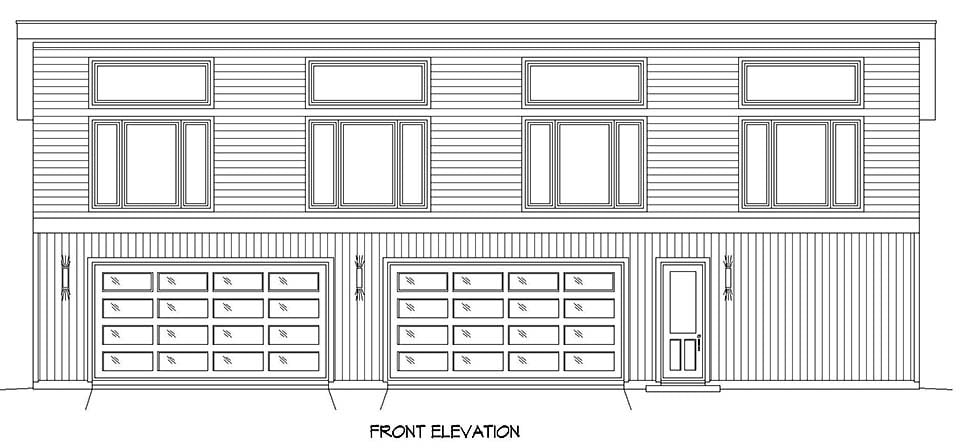

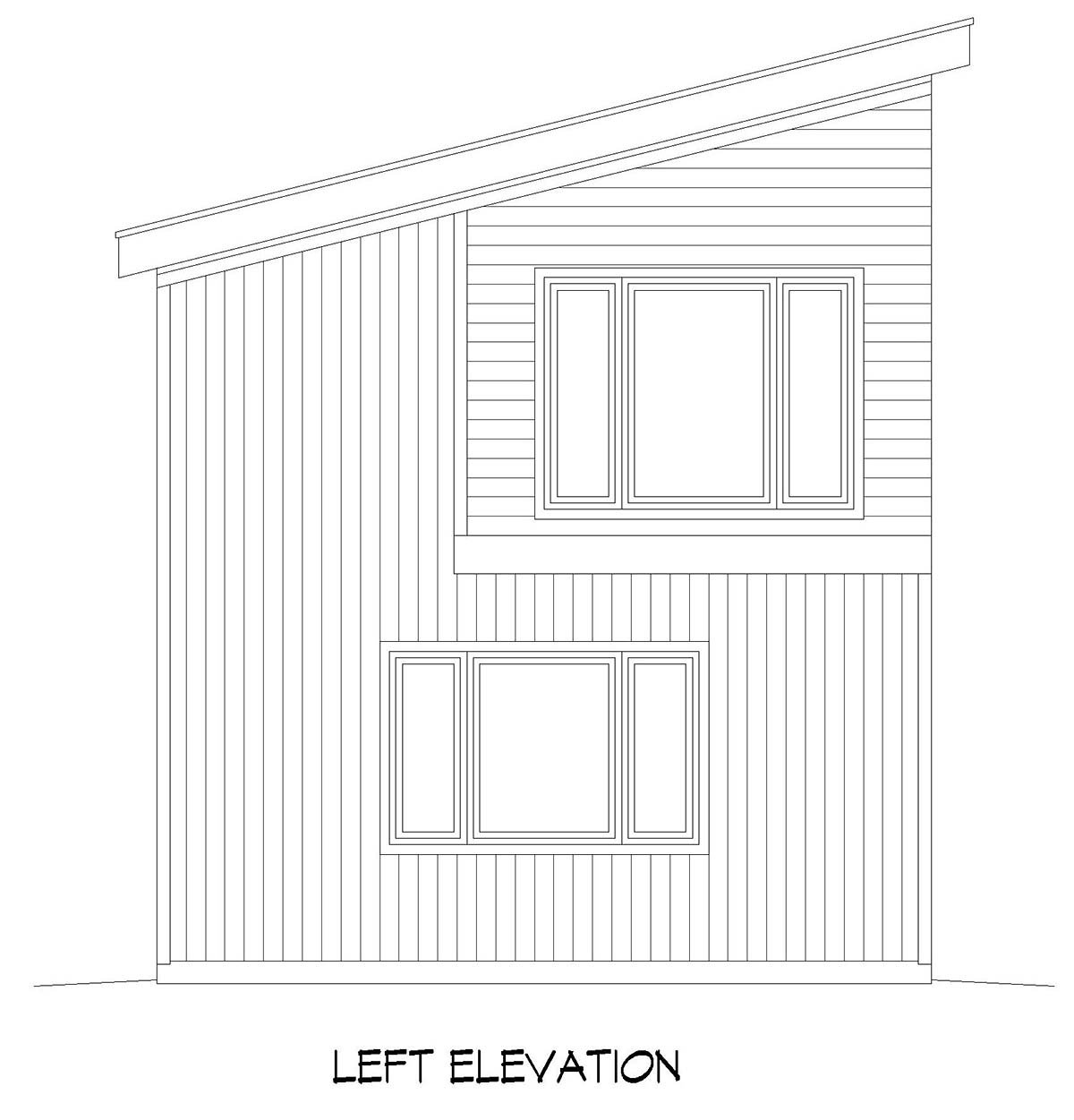

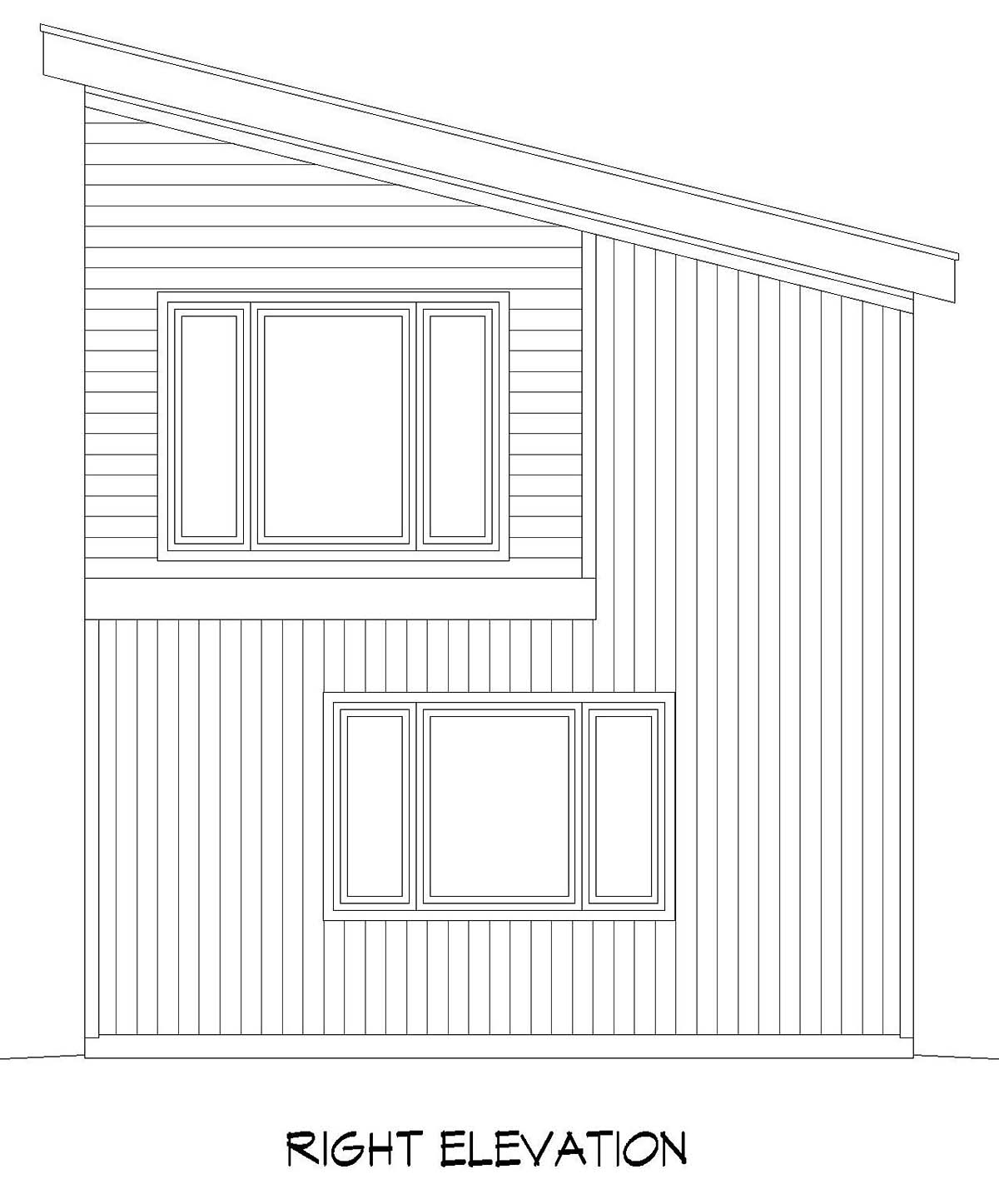

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
