House Plan 82356
4 Bedroom European Influenced House Plan with 2661 Sq Ft, 4 Beds, 5 Baths and a 3 Car Garage | Plan 82356
sq ft
2661beds
4baths
4.5bays
3width
92'depth
62'
Plan Pricing
Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2661 sq ft |
| Main Living Area: | 2661 sq ft |
| Bonus Area: | 602 sq ft |
| Garage Area: | 1092 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option. |
| Exterior Walls: | 2x4 2x6 - * $299.00 |
| House Width: | 91'6 |
| House Depth: | 61'3 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Half Baths: | 1 |
| Max Ridge Height: | 33'0 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 45 psf |
| Roof Framing: | Stick |
| Porch: | 568 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9'0 |
Special Features:
Plan Description
4 Bedroom European Influenced House Plan with 2661 Sq Ft, 4 Beds, 5 Baths and a 3 Car Garage
Stone, brick, and shake siding combine to create a stunning appearance for this rustic home. Inside you will find an open floor plan for the great room and kitchen. A vaulted ceiling with exposed beams, high bar, and walk-in pantry are just a few of the amenities in this area. The spacious master suite is privately located in the rear right side of the home. On the other side of the house, you’ll find bedrooms 2, 3, and 4, each with a walk-in closet, a Jack & Jill bath between bedrooms 3 and 4What's Included?
FLOOR PLANS Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout (not available for log homes).
SET OF ELEVATIONS All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
MISCELLANEOUS DETAILS These are included for many interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.
SCHEMATIC ELECTRICAL LAYOUT is included unless the plan employs exterior log wall construction.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes and Sketch is possible.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Good morning, We do not have a basement floorplan available for this particular plan. If you purchased the stock plan with optional basement, you would receive an unfinished basement foundation page. Basement would mirror main level heated/cooled sqft. If you are needing a floorplan for basement level, this will have to be achieved through our modification process.
A: Below you can see the attic storage access. You have a bonus room above 2 car garage with access to attic above master bath area.
View Attached FileA: Thank you so much for your interest in our home plan design. We do not offer unlimited builds, however, we will give you a license to build this plan up to 5 times with the purchase of CAD files. Then if you want to build more times after that, you can purchase additional builds from us without repurchasing the whole plan. Also we are happy to send you the original AND the reversed version if you purchase the CAD files.
A: Good morning, thank you so much for your interest in our home plan design! All main floor ceilings are 9’ except for great room which is vaulted. Bedroom 2 and foyer are 10’. Dining is 11’. This particular plan has two different plate lines, which are 9’ and 10’. I hope that this helps, please let me know if you have any other questions.
A: Good afternoon, sqft of main level living, porch, and garage is 4,321
A: Yes there is a good deep closet
A: The roof pitch is 12:12. Reduce to a 10:12 reduces the bonus room a few feet on front and right side; Still very functional.
A: There were 2 closets in the master, what are the dimensions of the second one near the garage? The Closet near the garage is: W: 5’8” D: 14’4” What are the dimensions of the closet in BR #2 and the 1/2 bath. The closet in BR #2 is W:8’ D: 3’4” The ½ bathroom is: W:7’10” D:3’4”
A: The Dimensions of the Master Closet is W=7’10” D=10’8” The Dimensions of the Kitchen Pantry is W=7’9” D=4’4”
A: Our plans include the electrical plan. The items that are site specific such as sewer and water and HVAC will be created on site by the appropriate professional using the existing pages of the plan.
A: The rooms which have 9’ Ceilings is: Bedroom 3 and 4 Master Suite What are the interior door heights? All interior doors are 6’8”
A: The front door is 5’4” wide and 8 ft high
A: Approximate max height is 18’-20’ at top of vault, this depends on building material. There is a 10’ plate line.
A: The heated/cooled space in this plan minus the bonus room is 2661 sq feet.
A: You would just need to contact us after finding out modifications are needed and we would be happy to make the changes, the fee would be based on how extensive the changes are.
A: 7’10” x 10’8”
A: Sorry, no diagrams. The basement will just about mirror the footprint of the main level minus the garages and porch areas, it may change a little after adding the basement stairs but not much at all. It will be one large open space unfinished.
A: The closet, on the right(the more narrow) is 4’9” x 13’6” and the left closet the wider one is 7’4” x 10’2”
A: Yes, this dimension includes the rear porch.
A: Yes, please see plan 82179.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure
Photographs may show modified designs.

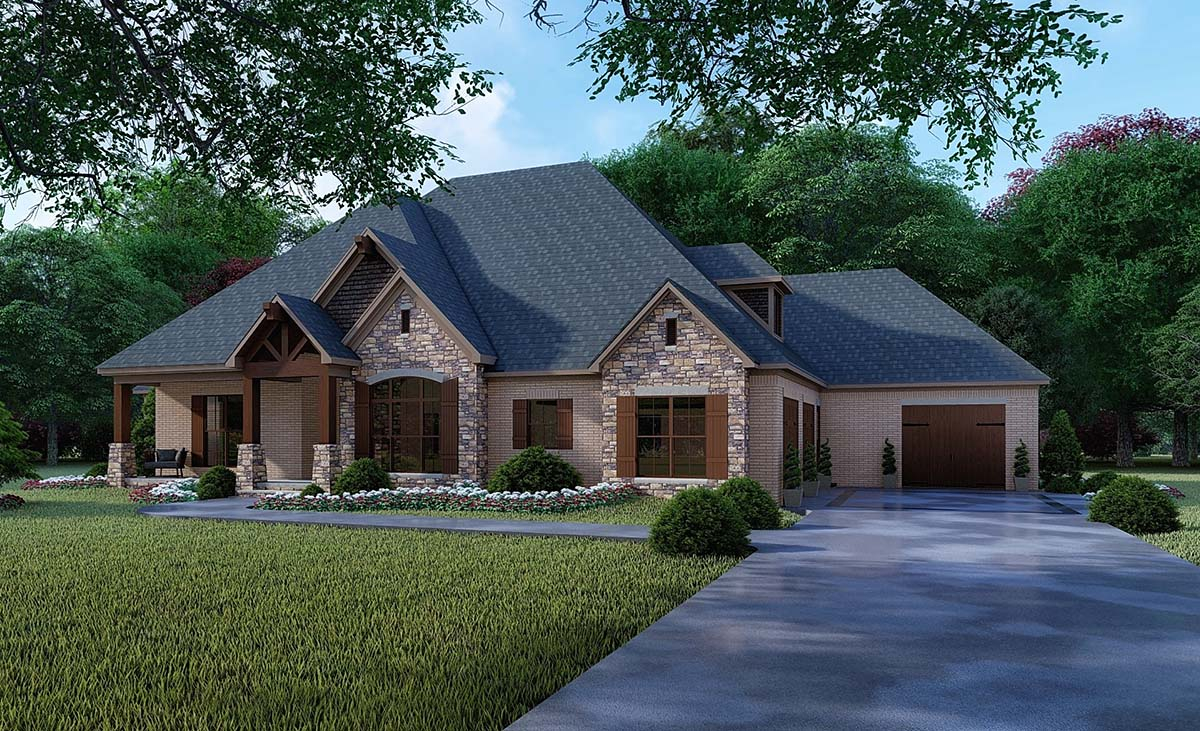

Elevation

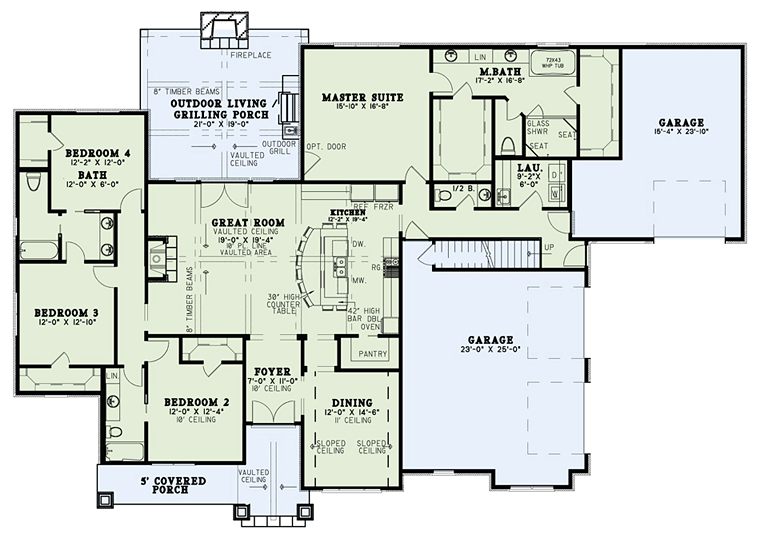

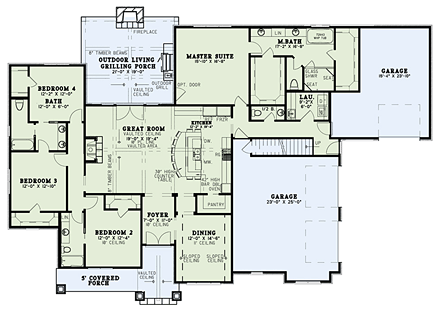

Level One

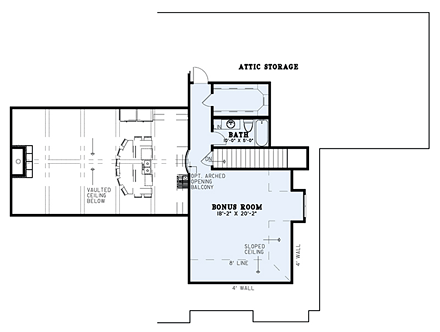

Level Two
Quick Specs
2661 Total Living Area2661 Main Level
602 Bonus Area
4 Bedrooms
4 Full Baths, 1 Half Baths
3 Car Garage
91'6 W x 61'3 D
Quick Specs
2661 Total Living Area602 Bonus Area
4 Bedrooms
4 Full Baths, 1 Half Baths
3 Car Garage
91'6 W x 61'3 D
Pricing
PDF File: $1,550.005 Sets: $1,650.00
5 Sets plus PDF File: $1,900.00
Unlimited Use PDF: $2,250.00
