House Plan 83540

• PDF File: $1,509.00
• 5 Sets plus PDF File: $1,809.00
• CAD File: $3,018.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Plan Options:

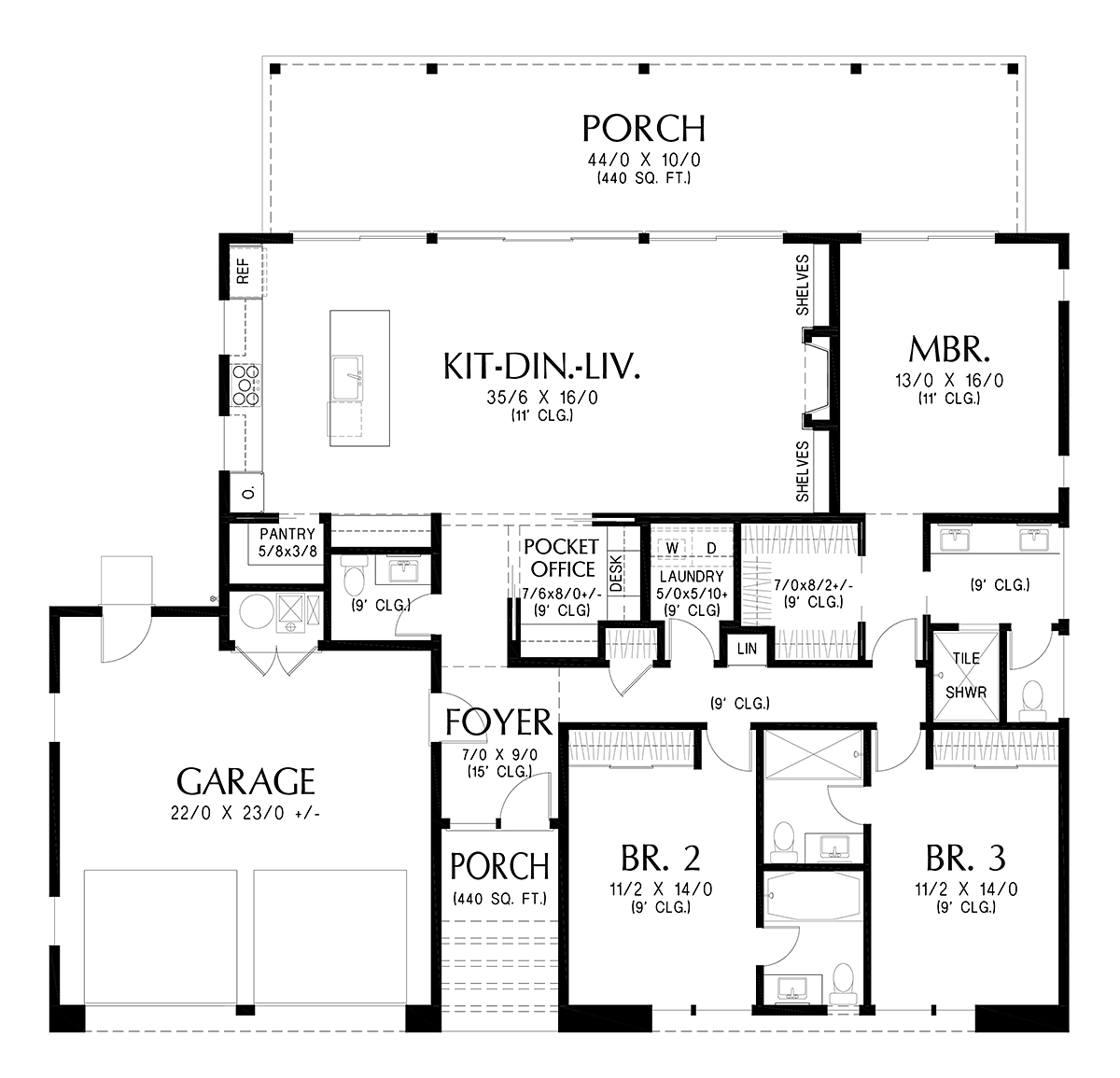

• Two Car Front Facing Garage Option: $262.50

Available Foundation Types:

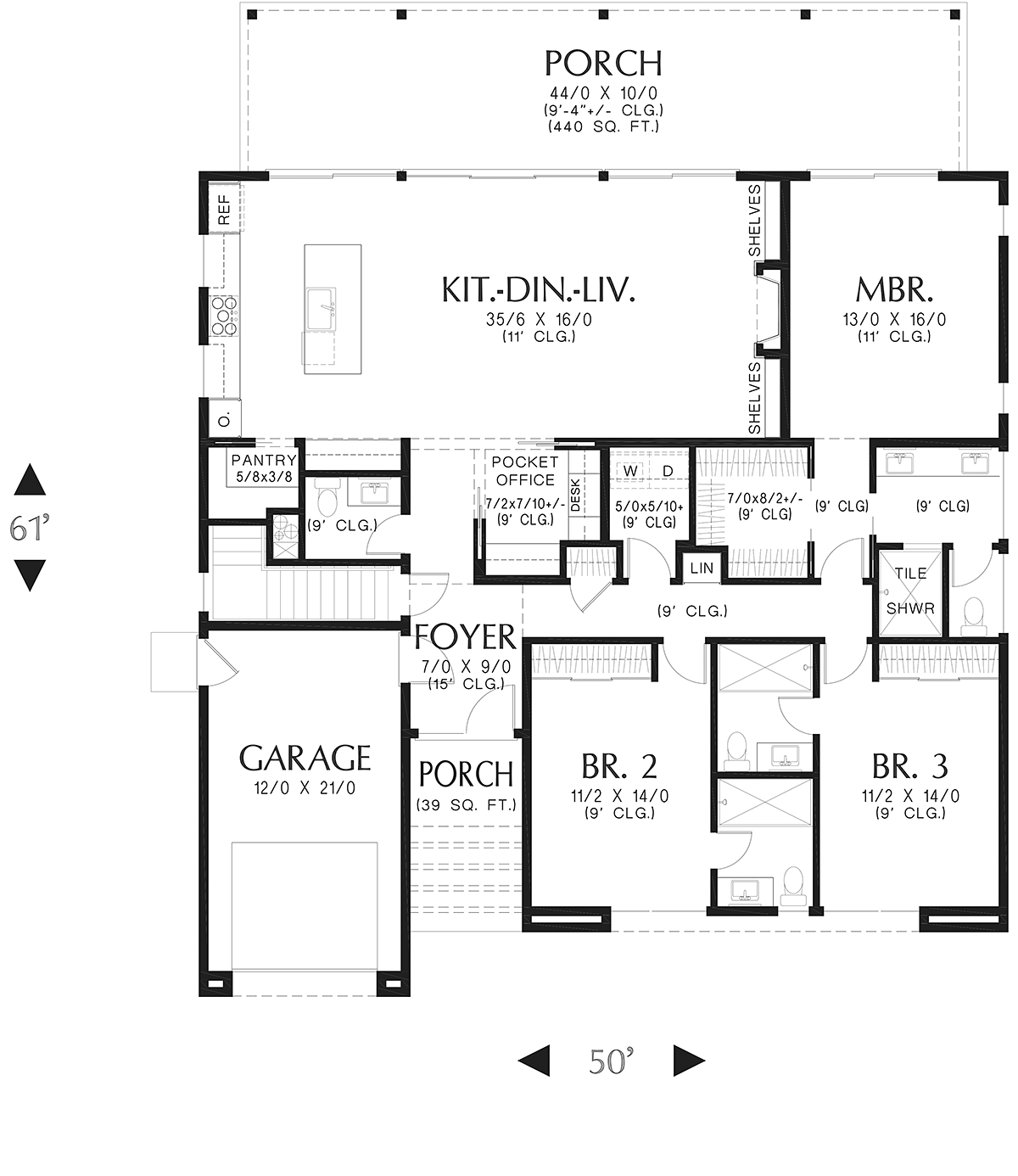

• Basement : $506.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1949 sq ft
Main Living Area:	1949 sq ft
Garage Area:	274 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement - * $506.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:	2x6
House Width:	50'0
House Depth:	57'0
Number of Stories:	1
Bedrooms:	3
Full Baths:	3
Half Baths:	1
Max Ridge Height:	17'3 from Front Door Floor Level
Primary Roof Pitch:	1:12
Roof Framing:	Truss
FirePlace:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Office
• Open Floor Plan
• Pantry
• Storage Space

Flat Roof House Plan with 1,949 Square Feet

Flat Roof House Plan 83540 has a roof pitch of 1:12 which is technically a low slope roof. However, this low slope does put it in the category of "flat" roof in home construction. To be precise, this plan does have a slope, but it's not very pronounced. As a result, the home has the popular contemporary style look with a modern Ranch Style floor plan. In total, this plan offers 1,949 square feet of living space, 3 bedrooms, 3.5 bathrooms, and a 1 car garage.

Flat Roof House Plan With Lots of Windows

Flat Roof House Plan 83540 appears with a no-nonsense, minimalist-modern front elevation. We love the neutral tan color of the exterior walls. It complements the honey-colored, slatted wood design of the garage door and the accent wall between the windows. Choose black window frames and then paint the front door red to add a pop of color. Look up to the see a clerestory window above the front porch. This will add more light inside in your foyer. You will notice that the garage opens into the foyer, and then two hallways branch off of it. One long hallway leads to the bedrooms, and the other hallway goes to the living space.

Natural light beckons you into the living space because of several large glass doors which are topped with upper windows too. The living space is massive at 35.5 feet wide by 16 feet deep. On one side we have a fireplace which is surrounded by built-in shelves. Display your latest family vacation photos on these shelves and lounge in a comfy leather sofa. Place a large dining table between the living space and the kitchen to break it up. The kitchen is simple, but it has everything you want. For example, there's a big island and windows surrounding the stove. Plus, we have a walk-in pantry measuring 5' wide by 5'8 deep.

Every Bedroom Has a Private Bathroom

This home has a rare perk: each bedroom boasts a private bathroom. Bedrooms 2 and 3 are matching in size, and their bathrooms include walk-in showers. Go back to the primary bedroom and find a unique design. For example, you open the door and pass by two pocket doors to get to the main bedroom. On one side of this walkway is the walk-in closet, and on the other side is the spacious bathroom. The bathroom has a double sink with lots of counter space, tile walk-in shower and private toilet room. Mom and Dad will also love that the main bedroom has a sliding door leading out to the huge covered back porch!

Don't miss the other functional details in Flat Roof House Plan 83540:

• Pocket office with sliding corner "door walls." If you leave the sliding doors open, it leaves the walkway very open. Close them to achieve a quiet work space when needed.
• Half bathroom in close proximity to the office and living space.
• One car garage with dedicated room for mechanicals.
• Laundry room off the hallway and two linen closets off the hallway.
• Option to purchase the 2 car garage version of this plan.
• Option to purchase the basement version of this plan.
