3 Car Garage Apartment Plan 86027
3 Car Garage Apartment with 1 Bed, 1 Bath | Plan 86027
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Additional Notes
2 x 4 Exterior Wall Size (2nd floor)Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 798 sq ft |
| Main Living Area: | 113 sq ft |
| Upper Living Area: | 685 sq ft |
| Garage Area: | 768 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 40'7 |
| House Depth: | 25'2 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 23'10 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Stick |
| Porch: | 91 sq ft |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: It is slab on grade. It is a garage with a reinforced concrete slab sloped 1/8" to the foot towards the garage door. The bottom of the footing is 4'-0" below grade. Thank you for your interest in my work and we hope to hear from you.
A: It is difficult to say because costs differ so much depending on what part of the country it is being built. On Lake George in New York the cost was incredible! That's not much help, but it is a very popular plan.
A: No, my houses are designed to be constucted in northwestern Ohio. The plans will have to be modified for seismic activity, soil variations, climactic forces, and other code enforcements. Thank you for your interest in my work.
A: This structure is designed to have no beams or posts in the garage.The dormer can be extended, but I would not put it over the stairwell.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.

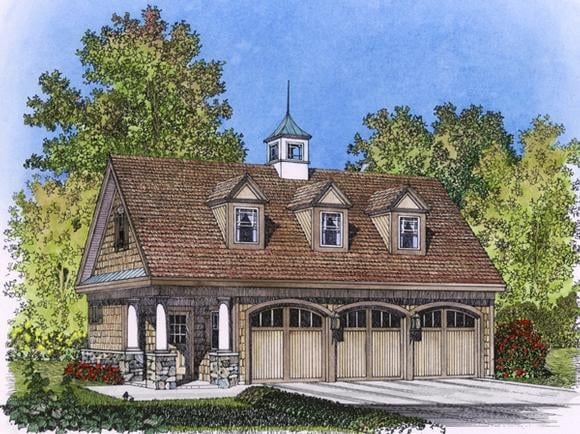

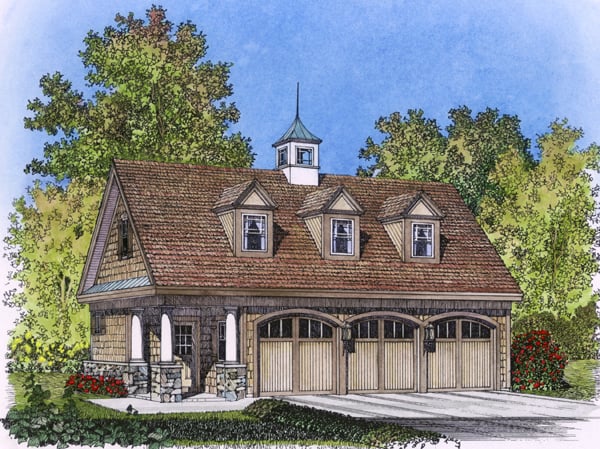

Elevation

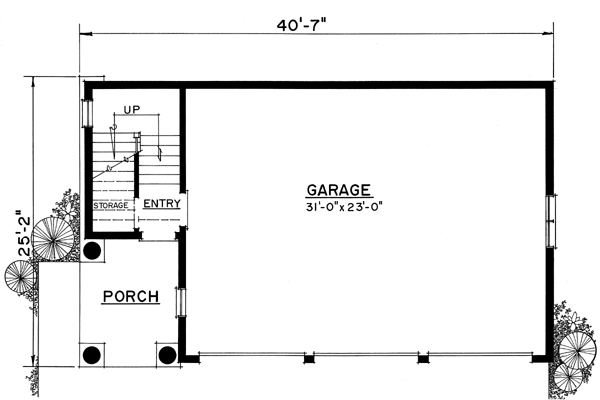

Level One

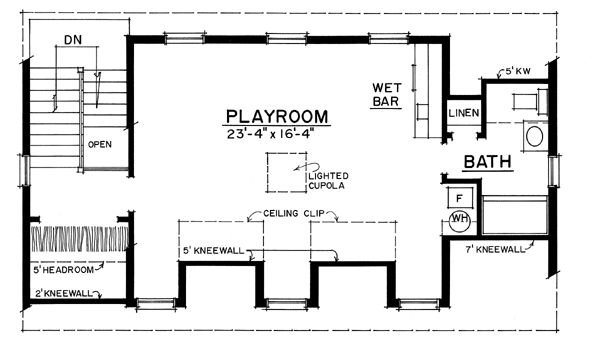

Level Two
Quick Specs
798 Total Living Area113 Main Level
685 Upper Level
1 Bedrooms
1 Full Baths
3 Car Garage
40'7 W x 25'2 D
Quick Specs
798 Total Living Area1 Bedrooms
1 Full Baths
3 Car Garage
40'7 W x 25'2 D
