Turn OFF Image Gallery

Add to cart

15% DISCOUNT

Plan Pricing from $467.50 ~~$550.00~~

Plan Pricing

15% DISCOUNT

PDF File: $467.50 ~~$550.00~~
5 Sets: $382.50 ~~$450.00~~
Reproducible Set: $340.00 ~~$400.00~~
CAD File: $467.50 ~~$550.00~~
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $85.00 ~~$100.00~~
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $21.25 ~~$25.00~~

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Garage Area:	1536 sq ft
Garage Type:	Detached
Garage Bays:	6
Foundation Types:	Slab
Exterior Walls:
House Width:	32'
House Depth:	48'
Number of Stories:	1
Max Ridge Height:	21' from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Framing:	Truss
Main Ceiling Height:	10'

What's Included?

Our Plans include:
Detailed Elevations
Detailed Floor Plans
Foundation Plan
Floor Framing Plan
Roof framing Plan
Cross Sections
Electrical Plans
General Notes to cover entire project

Joist size, beam size, connections and hardware are shown. Materials list is not.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Previous Q & A

Q: Why are the trusses 24” OC? How would it affect the building other than increasing the build cost to put the trusses @16” OC?

A: 16" o.c. may be recommended for areas with a heavy snow load, otherwise 24" o.c. is sufficient.

Q: Another question, what is the wall stud spacing and what is the truss spacing? Were the plans drawn in plain Autocad or Autodesk Architect and what version?

A: Stud spacing is @ 16" O.C., truss spacing is @ 24" O.C., plans were drawn in AutoCAD Architecture 2010.

Q: Would any modifications be necessary to put a brick front and a 2' high brick skirt around the rest of the building?

A: No, this can be done in the field.

Q: Can you give me an estimated material cost complete finished including foundation?

A: 32k insulated... but that is here in Washington state...

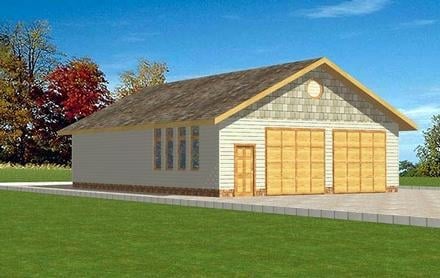

Q: Can you give me an estimated material cost on these plans Garage plan number 86871 thank you

A: with doors, windows...no foundation... 12k

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
