House Plan 87400
Craftsman Style with 3 Bed, 3 Bath, 3 Car Garage | Plan 87400
sq ft
3135beds
3baths
2.5bays
3width
108'depth
96'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.This particular designer's plans cannot be purchased if they are to be built in Washington State.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3135 sq ft |
| Main Living Area: | 3135 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x6 |
| House Width: | 108' |
| House Depth: | 96 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Unknown |
| Porch: | 800 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
What's Included?
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Main floor plate: 10’-0” Great Room: 18’-6” at peak
A: No. The only timber that is shown in the plan is the structural post and beams. The arched beams are not shown on the plan, they added these in the field. Thank you!
A: We do not have this information but I am assuming the wood has been stained. We have it spec’ed out as 8” lap and shingle siding, it is up to the builder/home owner on color choices and finishes.
A: Please see plan 87673 which has a bonus room.
A: No, we do have a different version of this plan that has a finished daylight basement. This square footage is 5515 SF. The pictures that are on that plan is actually the 5515 SF version of the plan. http://www.familyhomeplans.com/plan_details.cfm?PlanNumber=87681
A: utility room, 10’-4” x 13’-3” Master bath 9’-6” x 19’-0” master walk in closet.11’-0” x 11’-0” What do plans include. meps? 1. Coversheet 2. Schedule and Ventilation Calculations 3. General Details 4. Foundation Plan 5. Main Floor Framing 6. Main Floor Plan 7. Ceiling Plan 8. Roof Framing Plan 9. Elevations 10. Elevations 11. Building Sections No electrical, mechanical or pluming plans are provided. Window schedule? Yes, on page 2 Interior trim schedule? No timber framed measurements? The structural beams are provided on the Ceiling Plan on Sheet 7 foundation plans? Sheet 4 – Crawl Space
A: We do not have a materials list for this plan.
The beams are called out on the plan as arched 5-1/8”X7-1/2” 24FV-4 Glu-Lams. These arched beams are non-structural. The structural portion of the posts and beams are called out on the plan.
Thank you,
A: Square Footage Breakdown: Living Area: 3135 SF Garage: 1125 SF Outdoor Living Area: 378 SF Covered Patio: 240 SF Entry: 144 SF Covered Area in Front of Garage: 80 SF Thank you,
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Our Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! To take advantage of our guarantee, please call us at 800-482-0464 or email us the website and plan number when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
click image to enlargeInfo Brochure

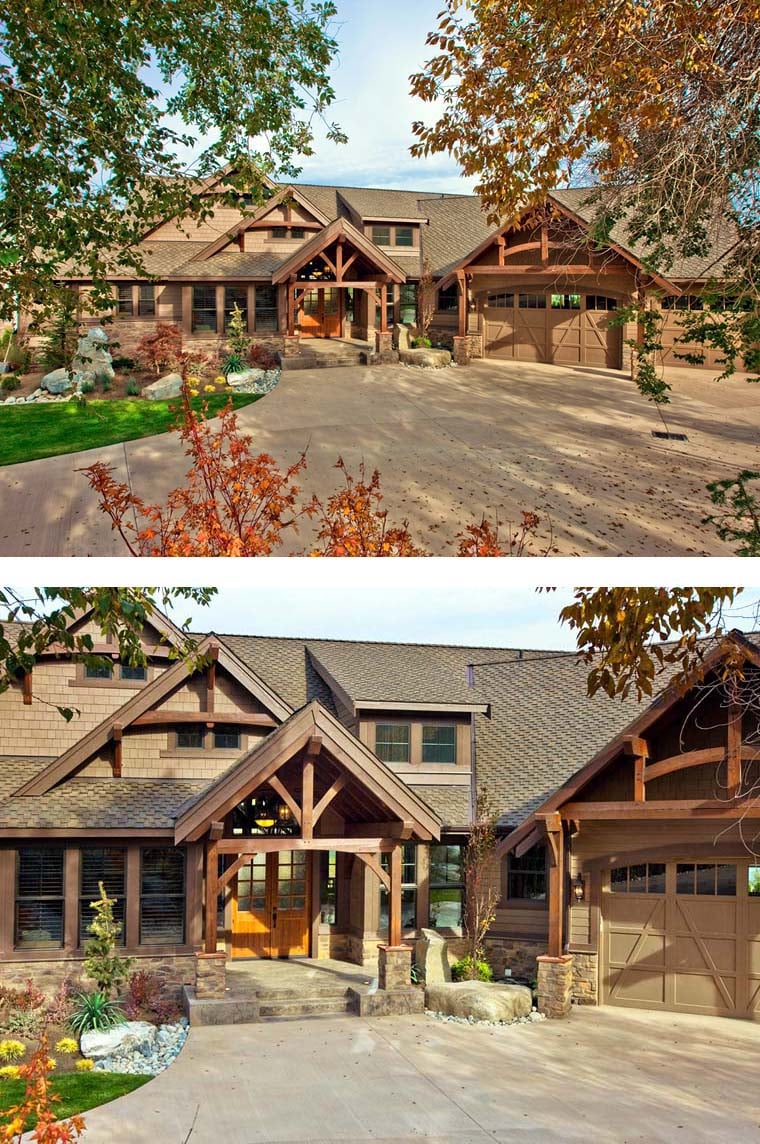

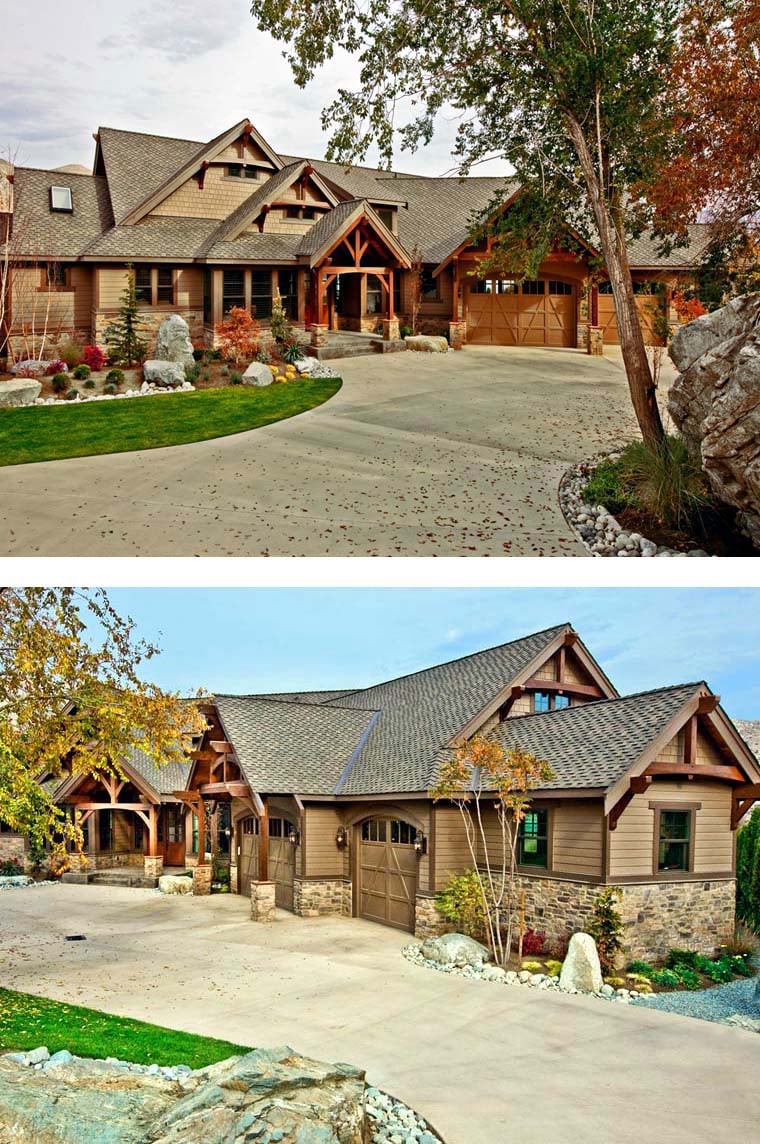

Photographs may show modified designs.

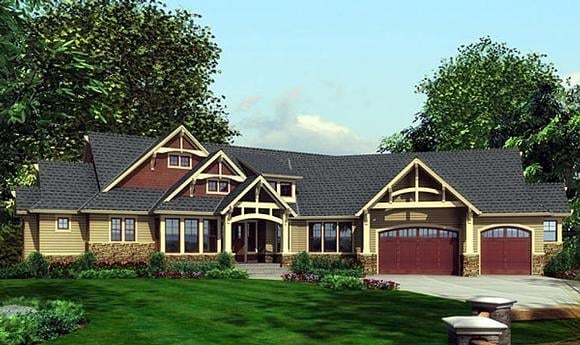

Elevation

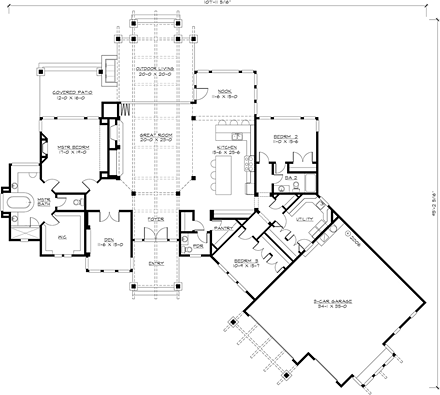

Level One
Quick Specs
3135 Total Living Area3135 Main Level
3 Bedrooms
2 Full Baths, 1 Half Baths
3 Car Garage
108' W x 96 D
Quick Specs
3135 Total Living Area3 Bedrooms
2 Full Baths, 1 Half Baths
3 Car Garage
108' W x 96 D
