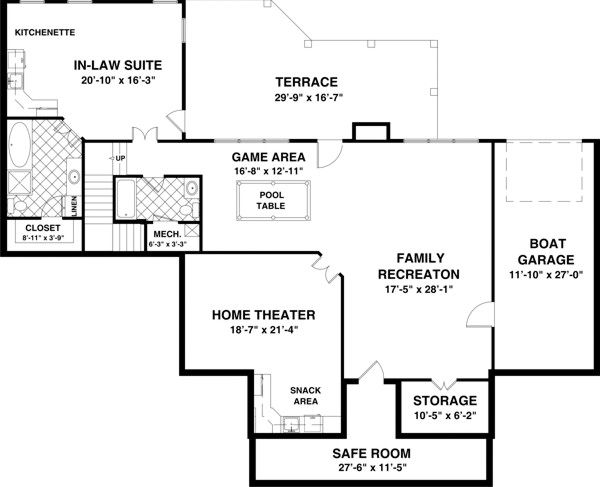

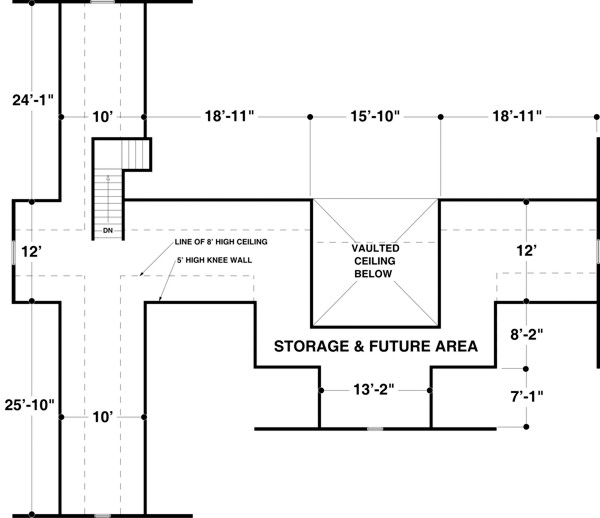

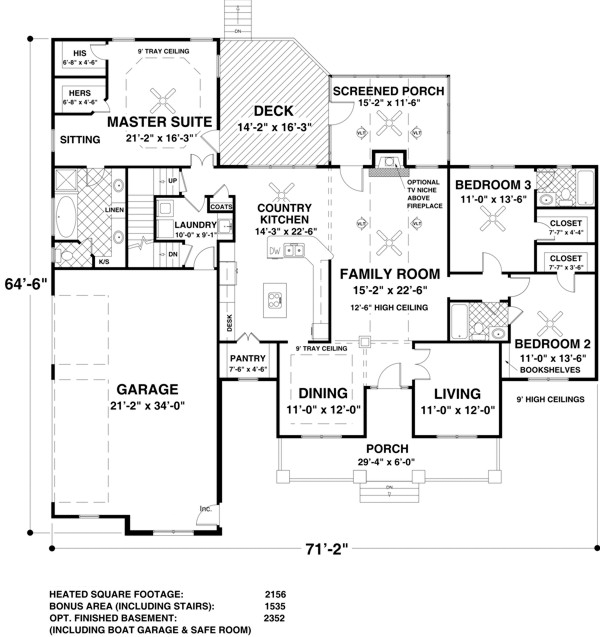

What Do These Plans Include? Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pier, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact us to discuss having that plan created.) Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page. Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements. Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details. Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations. Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options. The following may also be included: Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles. Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram. Low Price Guarantee If you find this plan featured on a competitor's web site at a lower price (advertised OR special promotion price), we will beat the competitor's price by 5%. To take advantage of our guarantee, please call us at 800-482-0464 when you are ready to order. Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence. |
