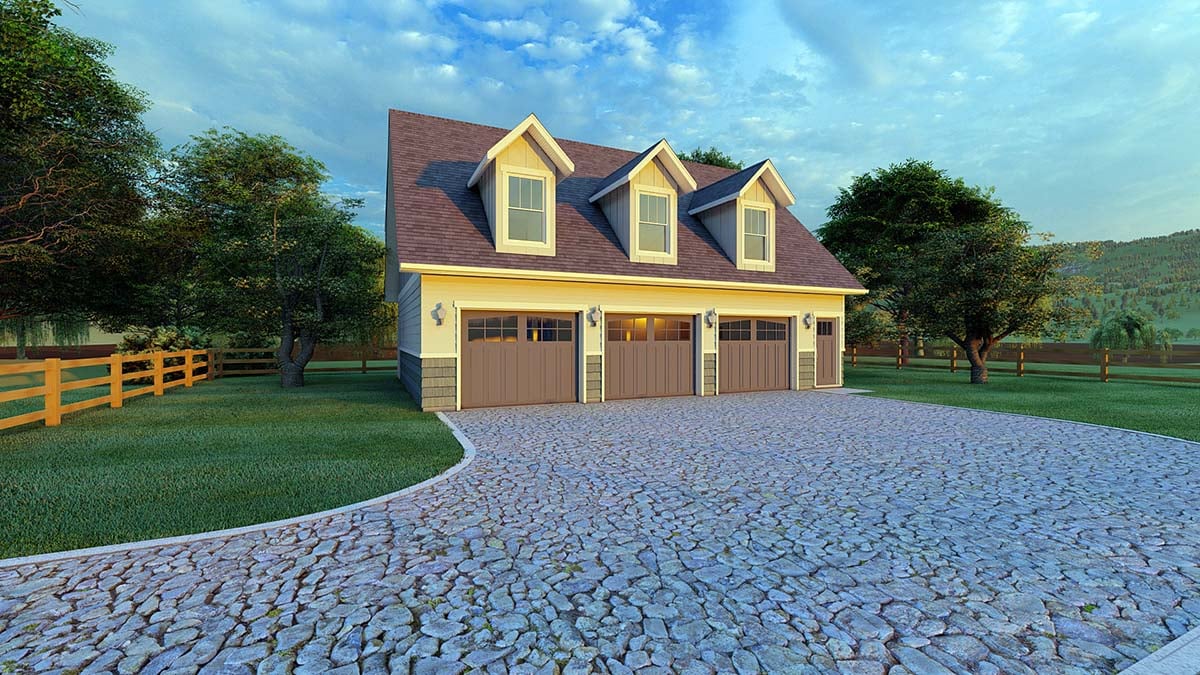

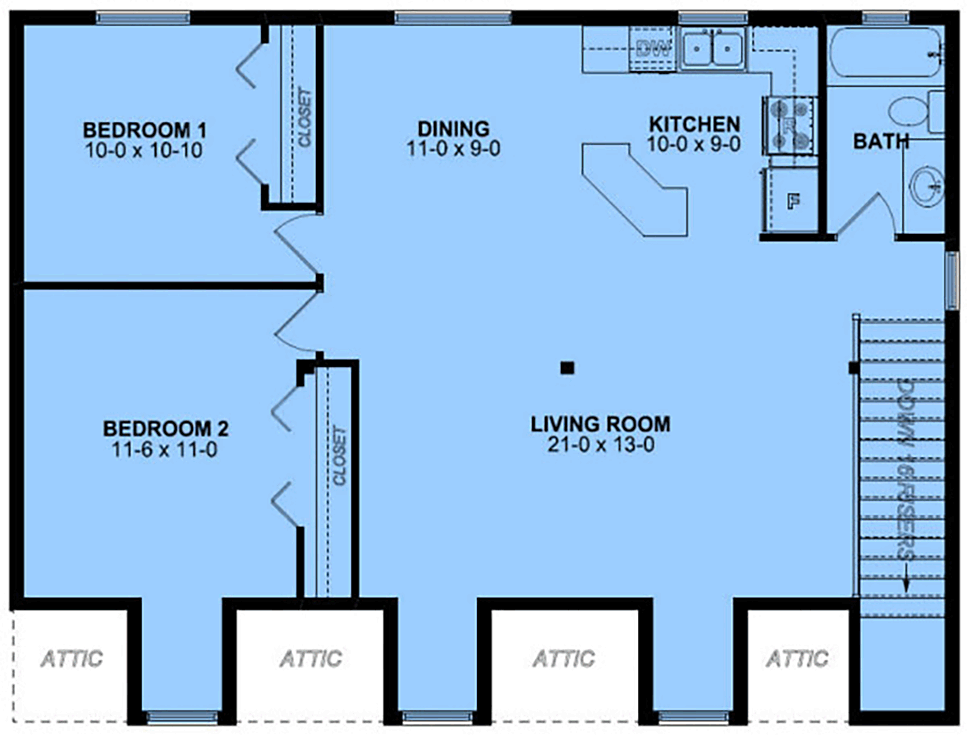

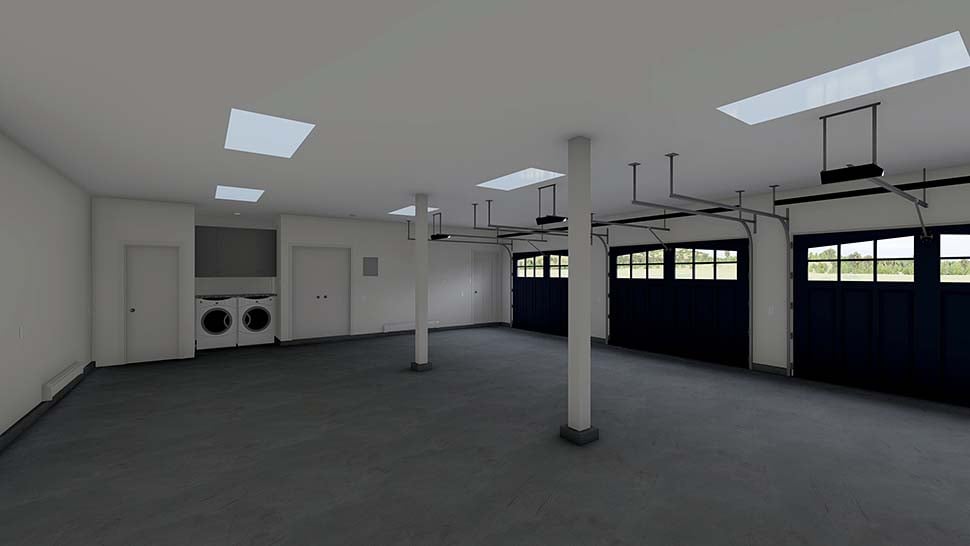

This triple garage plan provides ample room for parking and as use as a workshop with the added feature of a living area over for guests or family. The garage doors are 9'x7'. Each one is specified with a 3 panel, angled window. The two spacious bedrooms are well suited for daily living, the kitchen, dining, and living room are combined to give an open feeling as the sloped roof and dormers add character.
1032 Total Living Area 1032 Upper Level 2 Bedrooms 1 Full Baths, 1 Half Baths 3 Car Garage 40' W x 30' D
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
Cost to Build Estimate
We are sorry, but an estimated cost build is not available for this particular plan.
Previous Q & A
Previous Questions and Answers
Q:What is the CAD file type? dxf or dwg?
A:Typically the files are sent as DWG 2018 files. However the files can be sent in other formats if the client cannot open this type of file.
The formats available are:
DWG 2018, DWG 2013, DWG 2010, DWG 2007, DWG 2004, DWG 2000, DWG R14, DWG R13, DWG R12 or
DXF 2018, DXF 2013, DXF 2010, DXF 2007, DXF 2004, DXF 2000, DXF R14, DXF R13, DXF R12 or
BDXF 2018, BDXF 2013, BDXF 2010, BDXF 2007, BDXF 2004, BDXF 2000, BDXF R14, BDXF R13, BDXF R12
The client can either specify ahead of time their preferred file type, or if they are unable to open the files they can request a different type after the fact.
Date Posted: 14-Jul-20
Q:Is the roof designed with traditional framing in mind or roof trusses? Is there a truss section with these plans?
A:The plans are designed with a stick framed roof (traditional framing), there is a cross section for the roof framing provided. If the client wishes to use trusses instead they should be able to get truss layouts from the truss supplier and submit these with their plans in lieu of the framing details shown on the plans.
Date Posted: 30-Mar-20
Q:What are the garage door deminsions in this plan?
A:9 x 7 each
Date Posted: 29-Jun-18
Q:What are the garage dimension in this plan? Width x height, please. Thank you
A:This design is 40’ wide by 30’ deep by 26’ high
Date Posted: 11-Dec-17
Q:Is the roof frame or truss?
A:The roof is stick framed.
Date Posted: 06-Dec-17
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
