Garage-Living Apartment Plan 100116 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 976 Total Living Area
  • 127 Main Level
  • 849 Upper Level
  • 2 Bedrooms
  • 1 Full Bath(s)
  • 2 Car Garage
  • 26'0 Wide x 42'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $995.00
  • CAD File Unlimited Build: $1,995.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $245.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

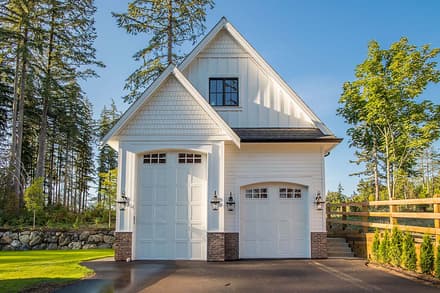

Garage-Living Plan 100116 | Order Code: 00WEB | Elevation

Reverse Plan


Garage-Living Plan 100116 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage-Living Plan 100116 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Garage-Living Plan 100116 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 976
  • Main Living Area: 127
  • Upper Living Area: 849
  • Garage Area: 939
  • Garage Type: Drive Under
  • Garage Bays: 2
  • House Width: 26'0
  • House Depth: 42'0
  • Number of Stories: 2
  • Bedrooms: 2
  • Full Baths: 1
  • Max Ridge Height: 30'10 from Front Door Floor Level
  • Primary Roof Pitch: 14:12
  • Roof Framing: Truss
  • Main Ceiling Height: 14'
  • Upper Ceiling Height: 9'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $995.00
  • CAD File Unlimited Build: $1,995.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $245.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

Special Features:

  • Entertaining Space
  • Open Floor Plan
  • Storage Space

Architectural Styles

Craftsman, Farmhouse

Narrow Garage Apartment Plan With Motorhome Bay

Narrow Garage Apartment Plan With Motorhome Bay #100116 has traditional style appeal and fits into a narrow footprint. Overall, the garage area is 939 sq ft and admits your RV and regular-sized vehicle. The back staircase leads up to the 849 sq ft apartment with 2 bedrooms and 1 bath. Step into the living area which is shared with the kitchen including island with sink and seating for 3. Two bedrooms share the guest bathroom off the hallway, and you will find an extra storage closet in the hall.
