Garage-Living Apartment Plan 100315 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1749 Total Living Area
  • 1749 Main Level
  • 1 Bedrooms
  • 1 Full Bath(s)
  • 4 Car Garage
  • 60'0 Wide x 50'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $1,150.00
  • 5 Sets: $115.00
  • 5 Sets plus PDF File: $1,364.00
  • CAD File: $1,650.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00
* prices shown w/o any discounts applied

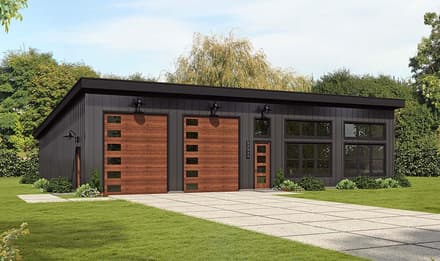

Garage-Living Plan 100315 | Order Code: 00WEB | Elevation

Reverse Plan


Garage-Living Plan 100315 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage-Living Plan 100315 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 1749
  • Main Living Area: 1749
  • Garage Area: 1251
  • Garage Type: Attached
  • Garage Bays: 4
  • House Width: 60'0
  • House Depth: 50'0
  • Number of Stories: 1
  • Bedrooms: 1
  • Full Baths: 1
  • Max Ridge Height: 16'9 from Front Door Floor Level
  • Primary Roof Pitch: 1.5:12
  • Roof Load: 20 psf
  • Roof Framing: Truss
  • Main Ceiling Height: 8'
  • Vaulted Ceiling: Yes

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $1,150.00
  • 5 Sets: $115.00
  • 5 Sets plus PDF File: $1,364.00
  • CAD File: $1,650.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

* prices shown w/o any discounts applied

Special Features:

  • Entertaining Space
  • Home Office
  • Open Floor Plan
  • Pantry
  • Storage Space

Architectural Styles

Contemporary, Modern

Modern Style Garage Apartment Plan With 50' Deep Garage

Modern Style Garage Apartment Plan With 50' Deep Garage shows spacious parking to include even your boat. The garage doors measure 10' wide by 12' tall, and the garage area is 1,251 sq ft. Inside, the living space is 1,749 sq ft, and it's lit up with natural light thanks to tall windows that fit under the upward angled roof. Up front when you walk inside is the kitchen and dining space, and that area moves into the living room. To the right is a home office measuring 14' x 12'. In the rear of the floor plan is the master suite. The master bath is well-designed with a wet room including a shower and freestanding tub. Homeowners will like how the utility room is connected to the bedroom, and the next door passes into the garage.

Garage-Living Plan 100315 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
