Multi-Family Plan 100409 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2940 Total Living Area
  • 2940 Main Level
  • 8 Bedrooms
  • 4 Full Bath(s)
  • 104'0 Wide x 33'4 Deep
  • 4 Units
Available Foundation Types:
  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $1,100.00
  • 5 Sets: $1,400.00
  • 5 Sets plus PDF File: $1,650.00
  • CAD File: $2,200.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $80.00
* prices shown w/o any discounts applied

Multi-Family Plan 100409 | Order Code: 00WEB | Elevation

Reverse Plan


Multi-Family Plan 100409 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Multi-Family Plan 100409 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 2940
  • Main Living Area: 2940
  • Garage Type: None
  • House Width: 104'0
  • House Depth: 33'4
  • Number of Stories: 1
  • Bedrooms: 8
  • Full Baths: 4
  • Max Ridge Height: 18'0 from Front Door Floor Level
  • Primary Roof Pitch: 7:12
  • Roof Load: 45 psf
  • Roof Framing: Stick
  • Porch: 160 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $1,100.00
  • 5 Sets: $1,400.00
  • 5 Sets plus PDF File: $1,650.00
  • CAD File: $2,200.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $80.00

Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.

* prices shown w/o any discounts applied

Special Features:

  • Deck or Patio
  • Entertaining Space
  • Front Porch
  • Open Floor Plan
  • Pantry

Architectural Styles

Ranch, Traditional

Traditional Ranch Quadplex Plan 100409 with 2,940 Sq Ft, 4 Units, 8 Bedrooms and 4 Bathrooms

Traditional Ranch Quadplex Plan 100409 offers an attractive combination of classic residential architecture and efficient multi-family living. Featuring 2,940 square feet of total living space, this single-story four-unit building includes 8 bedrooms and 4 full bathrooms. Each of the four identical residences provides approximately 735 square feet with 2 bedrooms, 1 bathroom, a private kitchen, and a comfortable great room. This thoughtfully arranged multi-family house plan is an appealing option for residential rental properties, extended family arrangements, and builders developing small multi-unit communities.

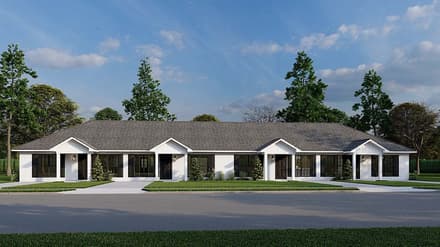

The exterior showcases timeless Ranch and Traditional styling with a classic white brick façade, contrasting dark-framed windows, and a low-pitched roof accented by charming front-facing gables. Each residence features its own welcoming covered front porch, creating an attractive individual entrance while maintaining a cohesive architectural appearance across the entire building.

Inside each unit, the great room provides a comfortable central gathering space for relaxing, entertaining, and everyday activities. The efficient floor plan makes practical use of the available square footage, creating a manageable residence without unnecessary complexity.

Each kitchen connects conveniently with the main living area, supporting easy meal preparation and comfortable daily routines. Direct access from the kitchen to a rear patio extends the living experience outdoors, providing residents with a convenient place for grilling, outdoor dining, or enjoying fresh air.

Two bedrooms in each residence offer flexible accommodations for couples, small families, roommates, or individuals who need a dedicated home office. A full bathroom serves both bedrooms, while convenient laundry space allows residents to manage household chores within their own unit.

The single-story arrangement eliminates interior stairways and provides straightforward access to the main living spaces. Four identical floor plans also create consistency for builders and property owners when planning construction, interior finishes, and ongoing property maintenance.

With four separate residences under one roof, House Plan 100409 offers flexibility for long-term rental housing, multigenerational arrangements, or an owner-occupied property with additional units. Its compact individual residences and traditional exterior make it a practical option for a variety of residential development goals, subject to local zoning requirements.

For additional vehicle parking or storage, explore our Garage Plans. A qualifying house plan and garage plan combination receives a 10% discount.

Combining timeless curb appeal, private outdoor spaces, and four efficiently designed residences, Quadplex Plan 100409 delivers practical multi-family functionality in an inviting one-story design.
