Garage Plan 30023 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 3 Car Garage
  • 44'0 Wide x 26'0 Deep
Available Foundation Types:
  • Stem Wall Slab

Plan Pricing

  • PDF File: $595.00
  • 5 Sets plus PDF File: $845.00
  • CAD File: $1,095.00
  • Materials List: $95.00
  • Right Reading Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00
* prices shown w/o any discounts applied

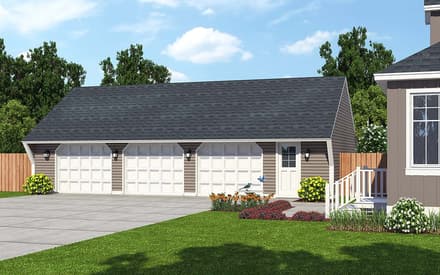

Garage Plan 30023 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 30023 | Order Code: 00WEB | First Floor Plan

Reverse Plan

Specifications

  • Garage Area: 1144
  • Garage Type: Detached
  • Garage Bays: 3
  • House Width: 44'0
  • House Depth: 26'0
  • Number of Stories: 1
  • Max Ridge Height: 16'6 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Framing: Truss
  • Main Ceiling Height: 8' and 9'

Available Foundation Types:

  • Stem Wall Slab

Plan Pricing

  • PDF File: $595.00
  • 5 Sets plus PDF File: $845.00
  • CAD File: $1,095.00
  • Materials List: $95.00
  • Right Reading Reverse: $150.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00

Plan includes both 8'0" and 9'0" ceiling heights

Plans are not to be sold in New Jersey or Maryland.

* prices shown w/o any discounts applied

Architectural Styles

Cape Cod, Saltbox, Traditional

Cape Cod, Saltbox, Traditional Garage Plan with 1,144 Sq Ft, 3 Car Garage

Discover the versatility and timeless charm of this Cape Cod, Saltbox, and Traditional style garage plan, offering 1,144 square feet of flexible space and accommodating up to three vehicles with ease. Designed as a detached structure, this garage plan is perfect for homeowners seeking additional storage, workshop space, or a secure haven for larger SUVs and pickup trucks.

The exterior design features classic architectural elements characteristic of Cape Cod and Saltbox traditions, lending curb appeal and a sense of heritage to your property. With an impressive width of 44 feet and a depth of 26 feet, each of the three garage bays boasts its own dedicated door, providing convenient access and maximizing parking efficiency.

Inside, you'll appreciate the generous ceiling heights—plans include both 8'0" and 9'0" options—offering ample vertical clearance for vehicles, equipment, or even a car lift. The truss roof framing and an 8:12 primary roof pitch add structural integrity and architectural interest, while the maximum ridge height of over 16 feet ensures a spacious feel throughout the interior.

Whether you're an auto enthusiast, need extra room for recreational gear, or simply desire a well-designed storage solution, this three-bay garage plan adapts to meet your needs. The detached layout provides flexibility in placement, making it an ideal addition to a variety of home sites.

Built on a sturdy stem wall slab foundation, this garage plan is engineered for durability and longevity. The straightforward design and affordable blueprint options make it accessible for a wide range of budgets.

Perfect for homeowners looking to enhance their property with a functional and attractive detached garage, this plan offers both style and practicality in one complete package.
