Garage Plan 30505 | Order Code: 26WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1 Half Bath(s)
  • 2 Car Garage
  • 24'4 Wide x 26'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • Concept Plan Pkg: $255.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
  • Complete construction documents can also be ordered for this plan:
  • 1 Set: $255.00
  • 5 Sets: $290.00
  • 8 Sets: $330.00
  • Reproducible Set: $470.00
  • PDF File: $470.00
  • CAD File: $670.00
  • Materials List: $50.00

  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00
* prices shown w/o any discounts applied

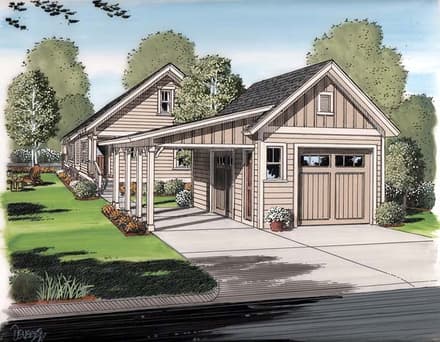

Garage Plan 30505 | Order Code: 26WEB | Elevation

Reverse Plan


Garage Plan 30505 | Order Code: 26WEB | First Floor Plan

Reverse Plan

Specifications

  • Garage Area: 364
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 24'4
  • House Depth: 26'0
  • Number of Stories: 1
  • Half Baths: 1
  • Max Ridge Height: 15'2 from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Framing: Stick
  • Porch: 258 sq ft
  • Main Ceiling Height: 8'0

Available Foundation Types:

  • Slab

Plan Pricing

  • Concept Plan Pkg: $255.00
    includes PDF files & CAD (dwg) files (see below for what's included with Conceptual Package).
    1. Concept Plan Package includes PDF files & CAD (dwg) files at 1/4" scale (24" x 36" paper)
    2. All four exterior elevations
    3. Floor plan(s) with overall dimensions
    4. Roof layout
    5. Written authorization for the plans to be completed by your builder or designer/architect
    6. Four-Time Build License
    7. Not to be considered a complete set of construction documents
    8. Foundation Plan is not included
  • Complete construction documents can also be ordered for this plan:
  • 1 Set: $255.00
  • 5 Sets: $290.00
  • 8 Sets: $330.00
  • Reproducible Set: $470.00
  • PDF File: $470.00
  • CAD File: $670.00
  • Materials List: $50.00
  • Right Reading Reverse: $75.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $25.00

House Plan Number 30504 (pictured in background) not included in price of 30505. Please see plan number 30504 to order both the house and garage plan.

* prices shown w/o any discounts applied

Architectural Styles

Craftsman, Farmhouse, Traditional

Detached 1-Car Garage Plan 30505 with 364 Sq Ft Garage, Attached Carport, Covered Patio and Optional Kitchen

Detached Garage Plan 30505 combines practical vehicle storage with outstanding outdoor entertaining possibilities. Featuring a 364-square-foot enclosed one-car garage and an attached covered carport, this versatile outbuilding can serve as a garage, workshop, shaded patio, or poolside gathering area. Optional kitchen and toilet room arrangements add even more functionality, making this garage and carport combination an appealing addition to residential properties.

The attached carport is one of the most attractive features of this flexible garage design. While providing covered parking when needed, it can also function as a spacious outdoor living area. Arrange a dining table, comfortable seating, and grilling equipment beneath the roof to create a welcoming destination for family cookouts, birthday celebrations, and weekend gatherings.

For homeowners with a swimming pool, Garage Plan 30505 offers exciting possibilities as a poolside entertainment structure. The shaded carport provides a comfortable place to relax between swims, while the enclosed garage and storage areas accommodate pool equipment, recreational accessories, and seasonal supplies. This convenient arrangement helps keep outdoor activities organized.

An optional kitchen area can be incorporated inside the enclosed garage. The suggested arrangement includes space for a 24-inch refrigerator, sink, and cooktop, providing convenient food preparation facilities near the covered entertaining area. This feature can reduce trips to the main house when hosting outdoor meals and gatherings.

An optional toilet room provides additional convenience for guests and family members enjoying the outdoor space. Together, the optional kitchen and bathroom facilities create a practical support area for outdoor entertaining. Plumbing, electrical installations, and permitted uses should be reviewed with local building authorities before construction.

The enclosed 364-square-foot garage accommodates one vehicle while offering possibilities for organized storage and hobby activities. Homeowners can incorporate a workbench, wall-mounted cabinets, and tool storage to create a convenient workshop. The enclosed space is also suitable for protecting lawn equipment, bicycles, recreational gear, or a classic automobile.

The combination of enclosed garage space and an attached carport provides flexibility as household needs change. Use the garage for protected vehicle parking while reserving the carport for another automobile, or dedicate the covered exterior area to outdoor recreation. This adaptable arrangement makes excellent use of a detached outbuilding.

Whether you need additional parking, a woodworking workshop, convenient poolside storage, or a covered entertaining destination, Garage and Carport Plan 30505 offers a practical solution. Its optional kitchen and toilet room make it especially attractive for homeowners seeking to expand their property's recreational possibilities without constructing a separate outdoor entertainment building.
