Garage Plan 45181 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2 Car Garage
  • 24'0 Wide x 24'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $440.00
  • CAD File: $540.00
  • Materials List: $60.00
  • Right Reading Reverse: $70.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

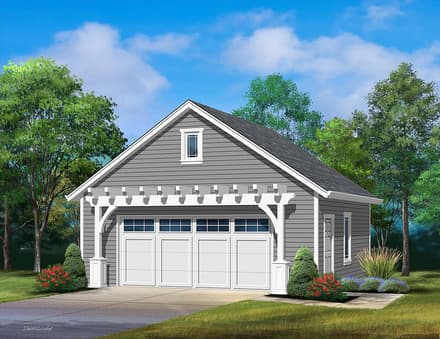

Garage Plan 45181 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 45181 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 45181 | Order Code: 00WEB | Rear Elevation

Specifications

  • Garage Area: 544
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 24'0
  • House Depth: 24'0
  • Number of Stories: 1
  • Max Ridge Height: 18'2 from Front Door Floor Level
  • Primary Roof Pitch: 8:12
  • Roof Load: 40 psf
  • Roof Framing: Truss
  • Main Ceiling Height: 9'0

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $440.00
  • CAD File: $540.00
  • Materials List: $60.00
  • Right Reading Reverse: $70.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

The PDF file will also be included with the purchase of the CAD file.

* prices shown w/o any discounts applied

Garage Plan 45181 with 2 Car Garage

Introducing Garage Plan 45181, a practical and efficient design perfect for those in need of a simple yet functional garage space. With dimensions of 24'0" Wide x 24'0" Deep, this plan offers a spacious area to accommodate two vehicles comfortably.

The exterior of the garage plan features a traditional aesthetic with a sturdy truss roofing system set at a primary roof pitch of 8:12, ensuring durability and reliability. The maximum ridge height is 18'2", providing ample headroom inside. The foundation type available for this plan is a slab, which is known for its strength and ease of construction.

The main area of the garage offers a ceiling height of 9'0", creating a spacious environment for various uses, whether for vehicle storage or as a workshop area. The garage type is detached, which offers flexibility in placement on your property and can be an excellent addition to any existing home setup.

Available for purchase are PDF and CAD files, making it easy for customization and modification if needed. A materials list is also available to aid in the building process, ensuring you have everything required to bring this plan to fruition.

This garage plan is ideal for anyone looking for a straightforward, no-fuss solution to their storage needs. It's perfect for homeowners seeking additional parking space or a separate area for hobbies and projects. With its robust design and functional layout, Garage Plan 45181 is a reliable choice that promises to meet your needs efficiently.
