Garage Plan 47052 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2 Car Garage
  • 31' Wide x 27' Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $876.00
  • 5 Sets: $672.00
  • CAD File: $1,080.00
  • Right Reading Reverse: $210.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $48.00
* prices shown w/o any discounts applied

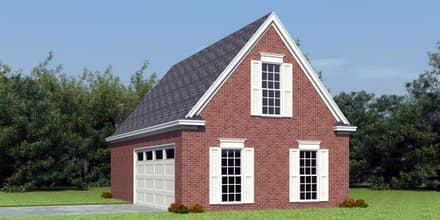

Garage Plan 47052 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 47052 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 47052 | Order Code: 00WEB | Rear Elevation

Specifications

  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 31'
  • House Depth: 27'
  • Number of Stories: 1
  • Max Ridge Height: 24'4 from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $876.00
  • 5 Sets: $672.00
  • CAD File: $1,080.00
  • Right Reading Reverse: $210.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $48.00

Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.

* prices shown w/o any discounts applied

Architectural Styles

Traditional

Attention handymen! Take a look at this 2-car garage workshop plan. The exterior displays a classic brick façade and gable roof. Shuttered windows and decorative details add touches of style. Inside, two parking bays provide sheltered parking for two family vehicles or perhaps a favorite restored vehicle and your sports car. A wall separates the parking area from the workshop. Add a workbench and use this space for wood working, home repair projects and wood crafts. Or maybe you need a place to store mechanic’s tools and auto parts. For those who love gardening, the workshop easily converts to a lawn and garden shed, ideal for the riding mower, leaf blower, rakes and other gardening supplies. You’ll appreciate the double door access to the yard and the windows filling both interior spaces with natural light. Delivering 841 square feet of living area, this 2-car garage plan with workshop is practical, functional and flexible.
