House Plan 51417 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 2697 Total Living Area
  • 2697 Main Level
  • 4 Bedrooms
  • 3 Full Bath(s)
  • 4 Car Garage
  • 75'0" Wide x 66'0" Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $1,525.00
  • 5 Sets: $1,690.00
  • 5 Sets plus PDF File: $1,753.00
  • CAD File: $2,075.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00
* prices shown w/o any discounts applied

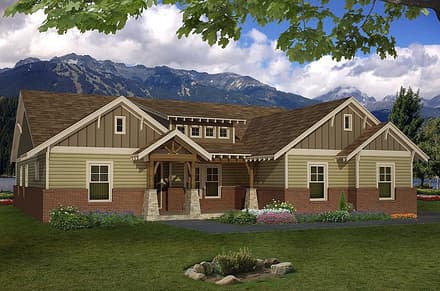

House Plan 51417 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 51417 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 51417 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 2697
  • Main Living Area: 2697
  • Garage Area: 950
  • Garage Type: Attached
  • Garage Bays: 4
  • House Width: 75'0"
  • House Depth: 66'0"
  • Number of Stories: 1
  • Bedrooms: 4
  • Full Baths: 3
  • Max Ridge Height: 20'6" from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Framing: Stick
  • Porch: 357 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • Main Ceiling Height: 9'0"

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $1,525.00
  • 5 Sets: $1,690.00
  • 5 Sets plus PDF File: $1,753.00
  • CAD File: $2,075.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

* prices shown w/o any discounts applied

Special Features:

  • Rear Porch

Architectural Styles

Craftsman

House Plan 51417 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
